-50-

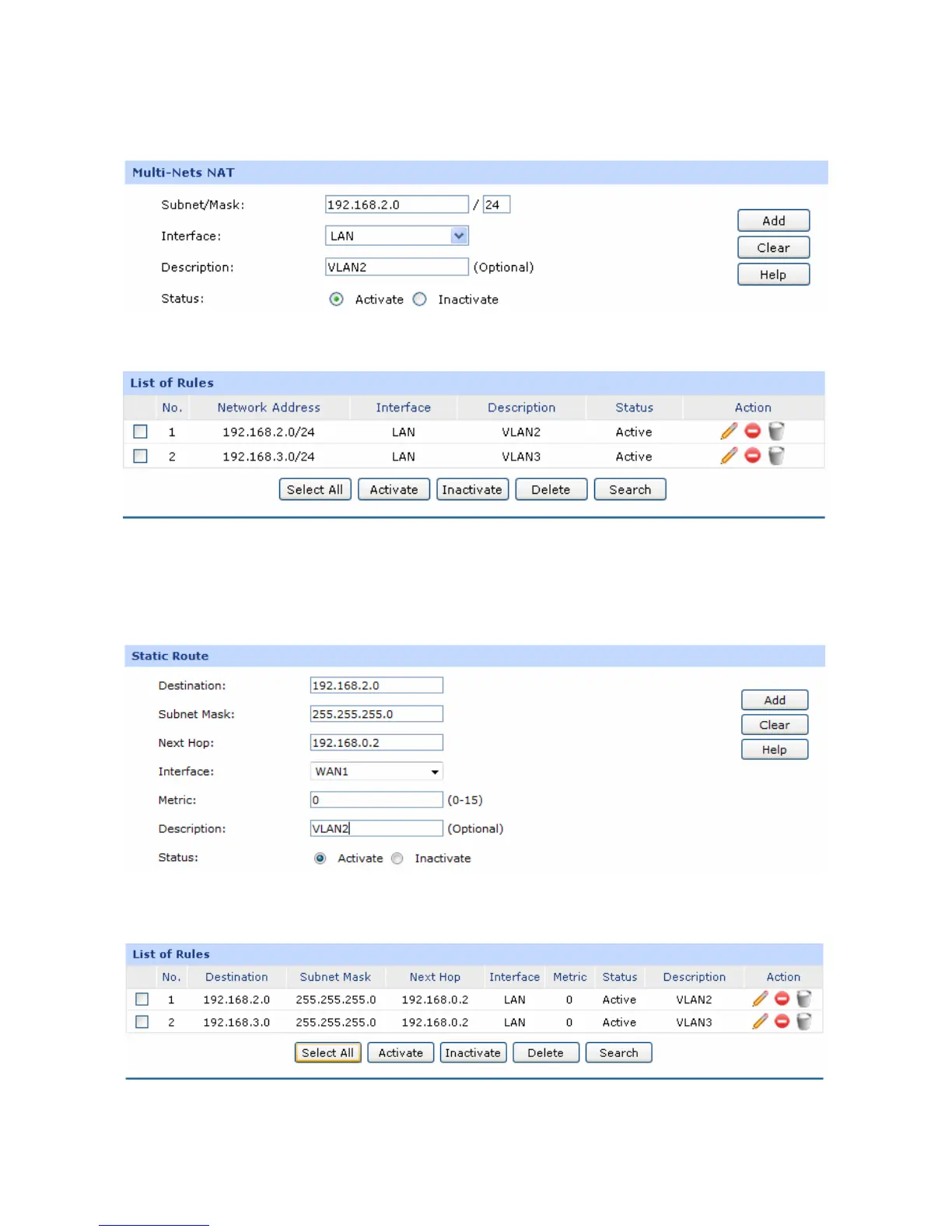

Configuration procedure
1. Establish the Multi-Nets NAT entries with Subnet/Mask of VLAN2 and VLAN3.
The configured entries are as follows:
2. Then set the corresponding Static Route entry, enter the IP address of the interface connecting
the router and the three layer switch into the Next Hop field.
Choose the menu Advanced→Routing→Static Route to load the following page.
The set Static Route entry is as follows:
