TL-PA511 AV500 Mini Powerline Adapter
15
4.1.3 Add Device

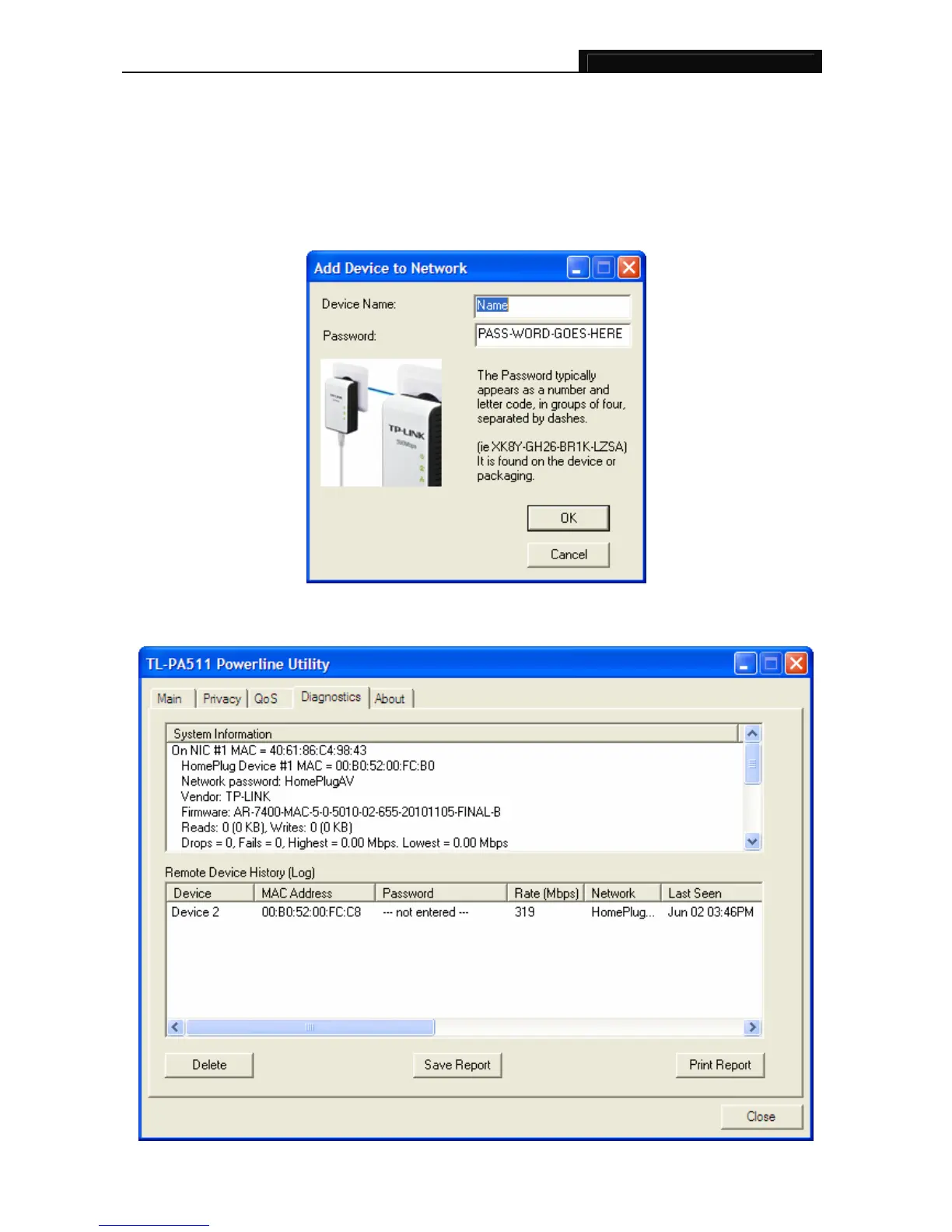

The following dialog box will pop up when clicking the “Add” button under the Main configuration
homepage. The dialog box allows you to enter both the selected device’s name and password. Note that
the Powerline Adapter must be present on the power grid in order to activate the set password and
added to the local network.
Enter your Device Name and Password (Take note of the password format) and click “OK” after setup.
The following screen will display after the naming and password setting process, which is also the
Diagnostics configuration homepage.
