TP-Link TL-R480T Installation Guide

01
Load Balance Broadband Router


TL-R480T+ is a product designed for small business. It features three free changeable
ports that can be set to either LAN or WAN, allowing the router to support up to four
WAN ports to satisfy various Internet access requirements through one device. At the
same time, network traffic is managed to ensure that data is properly distributed to
each port. TP-LINK TL-R480T+ will provide you consistent network uptime and reliable
Ethernet connectivity.

Front Panel


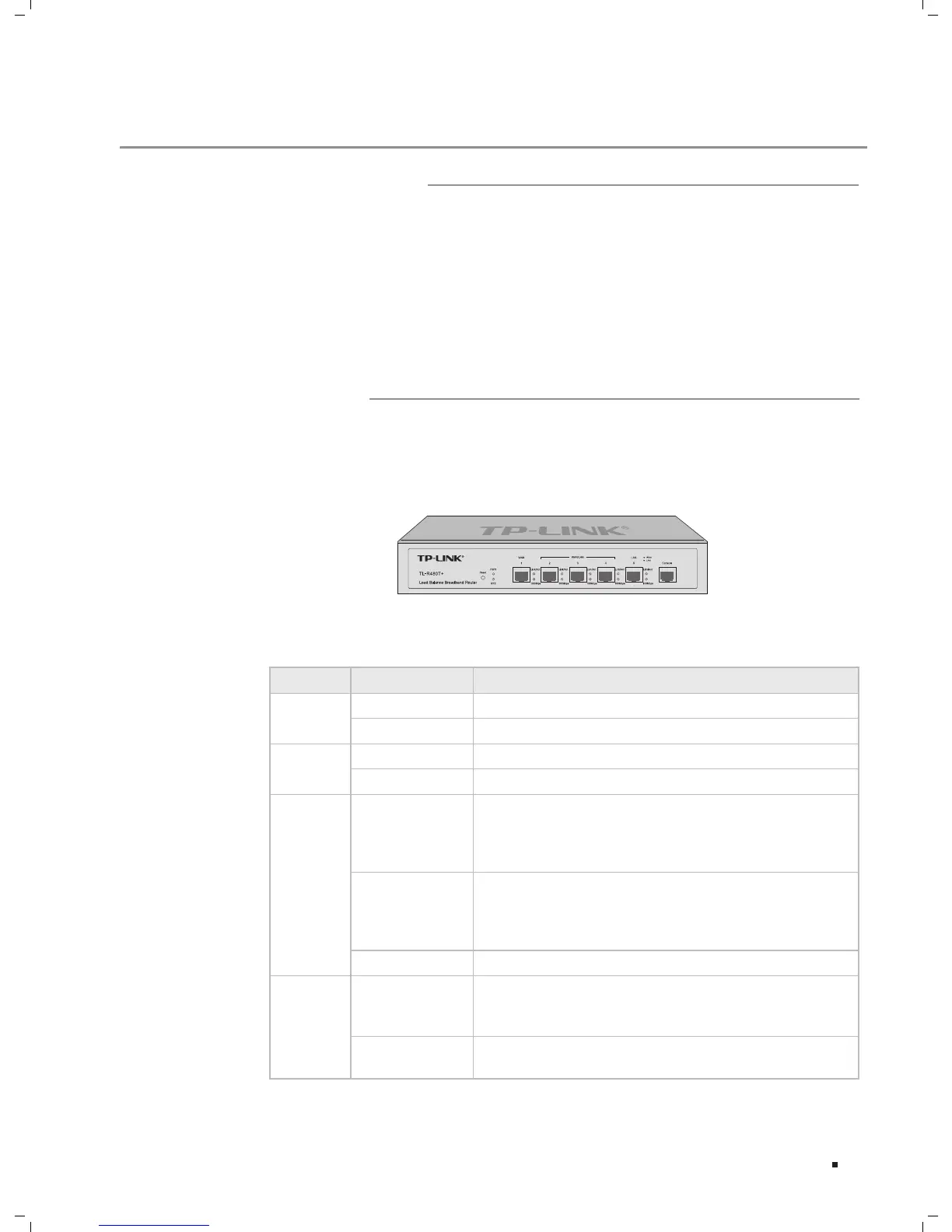

The front panel of TL-R480T+ is shown as the following figure.
Front PanelFigure 1-1
LEDs
LED Status Indication
PWR
On The Router is powered on
Off The Router is powered off or power supply is abnormal
SYS
Flashing The Router works properly
On/Off The Router works improperly
Link/Act
On
(Green/Yellow)
There is a device linked to the corresponding port but
not active
(Green indicates the corresponding port is working as
a LAN port, and yellow indicates WAN port)
Flashing
(Green/Yellow)
The corresponding
port
is transmitting or receiving
data
(Green indicates the corresponding port is working as
a LAN port, and yellow indicates WAN port)
Off There is no device linked to the corresponding port
100Mbps
On
(Green/Yellow)
The linked device is running at 100Mbps
(Green indicates the corresponding port is working as
a LAN port, and yellow indicates WAN port)
Off
There is no device linked to the corresponding
port
or
the port is running at 10Mbps
Introduction

TP-Link TL-R480T Specifications

General

Input frequency	50/60 Hz
Dimensions (WxDxH)	294 x 180 x 44 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Dimensions (W x D x H) (imperial)	11.6 x 7.1 x 1.7 \
DHCP client	Yes
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Web-based management	-
RS-232 ports	1
Ethernet LAN (RJ-45) ports	5
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Internal memory	64 MB
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Dual-band	No

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
