TP-Link TL-R480T Installation Guide

02
Load Balance Broadband Router
Interface Description
Interface Description
WAN
The WAN port is designed to connect the Router to the interface provided
by ISP via the RJ45 cable
LAN
The LAN port is designed to connect the Router to the local PCs or
switches by the RJ45 cable
Console
The Console port is designed to connect with the serial port of a computer
or terminal to check and monitor some simple system information of the
Router
Reset
With the Router powered on, use a pin to press and hold the Reset button (about 5
seconds) until the SYS LED ashes quickly. Then release the button and wait for the
Router rebooting to its factory default settings.

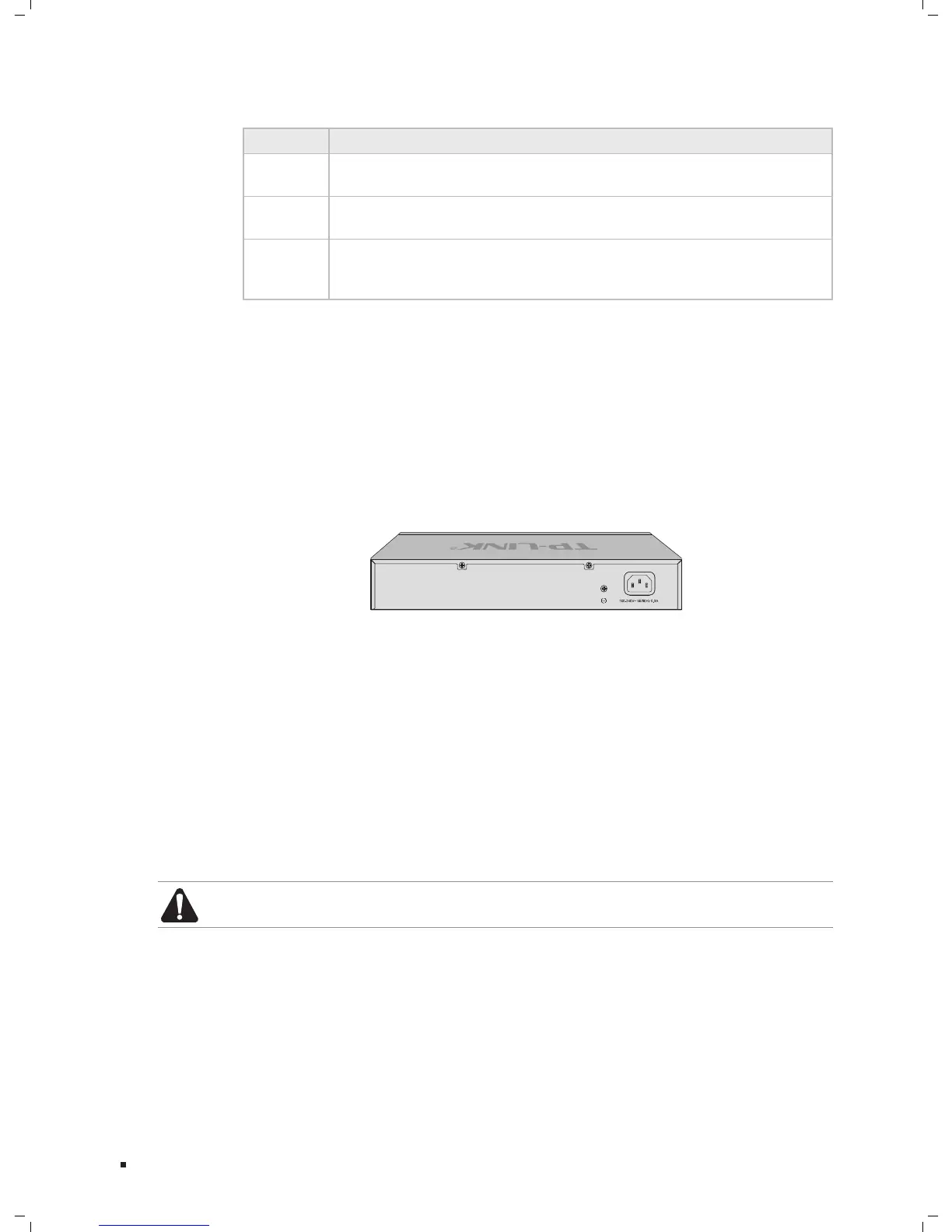

Rear Panel

The rear panel of TL-R480T+ is shown as the following figure.
Rear PanelFigure 1-2
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage.
Grounding Terminal
The Router already comes with lightning protection mechanism. You can also ground
the Router through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Caution: Please use the provided power cord.
Introduction

TP-Link TL-R480T Specifications

General

Input frequency	50/60 Hz
Dimensions (WxDxH)	294 x 180 x 44 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Dimensions (W x D x H) (imperial)	11.6 x 7.1 x 1.7 \
DHCP client	Yes
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Web-based management	-
RS-232 ports	1
Ethernet LAN (RJ-45) ports	5
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Internal memory	64 MB
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Dual-band	No

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
