TP-Link TL-SC3130 User Manual

20
This function is only for the client.

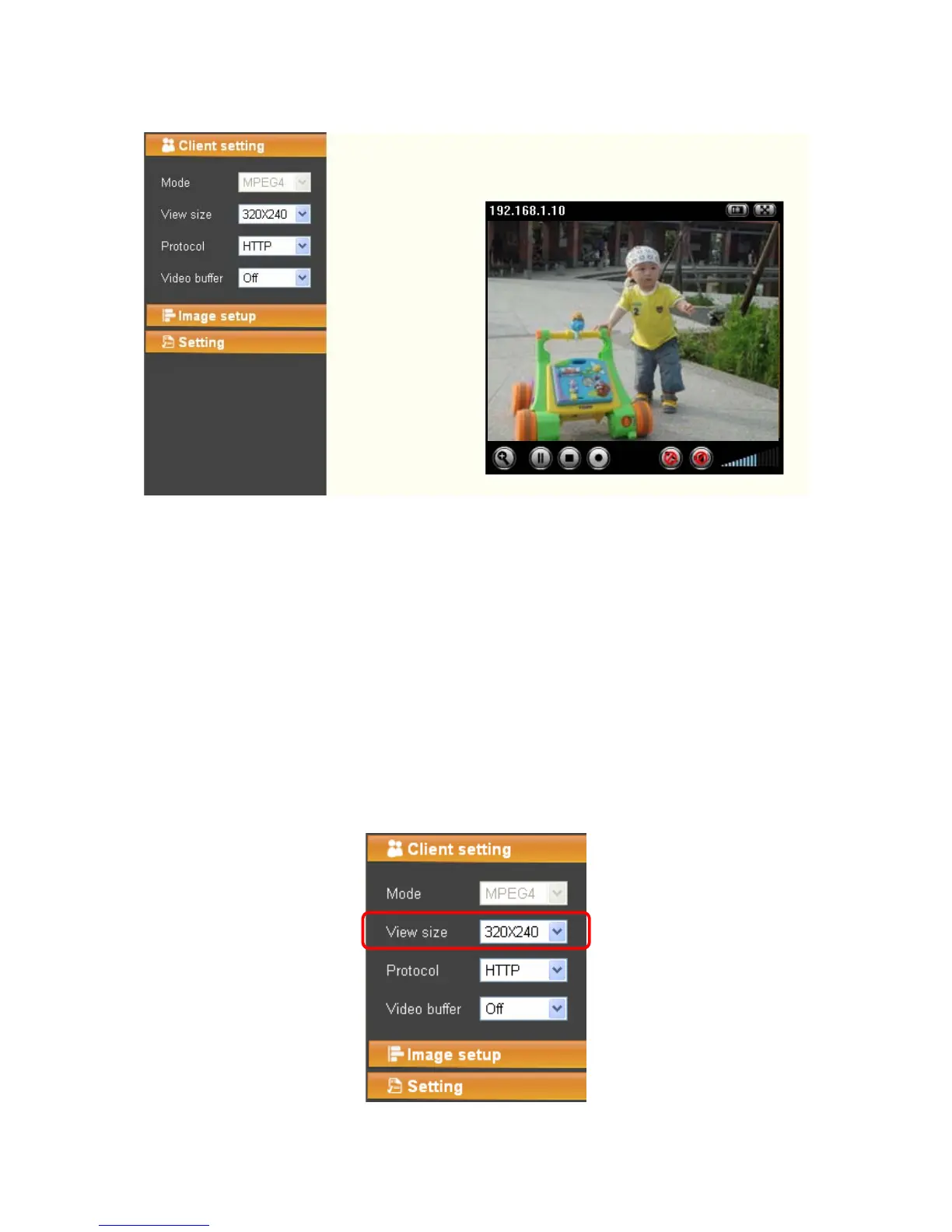

Click this button to configure the settings of IP Camera, which includes Mode, View Size,
Protocol, and Video Buffer.
5.3.1 Mode
Click the drop-down list to choose between MPEG4 and MJPEG video compression mode.
)
Note:
MJPEG streaming is unavailable if RTSP mode is On (Please check SETTING → BASIC →
Camera → General).
5.3.2 View Size
Select the desired display image resolution to 640*480 or 320*240. It is suggested that you go to
Client Setting to select a suitable View Size before using the IP camera as shown in the figure
below. For the PC whose resolution is less than 1280*1024, View Size of 320*240 is
recommended.

TP-Link TL-SC3130 Specifications

General

Maximum resolution	640 x 480 pixels
Sensor type	CMOS
Optical sensor size	1/4 \
Digital zoom	10 x
Focal length range	2 - 4 mm
Supported network protocols	Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMARTSP
Dimensions (WxDxH)	58 x 31 x 96 mm
Power requirements	5V DC, 2A
Networking features	Ethernet 10/100 Base-T
Compatible operating systems	Windows 98, ME, 2000, 2003, XP, Vista Mac OS Leapord 10.5
Power over Ethernet (PoE)	No
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Minimum illumination	0.5 lx
Minimum RAM	512 MB
Minimum processor	Pentium4 1.8GHz
Minimum graphics card memory	64 MB
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE
