TL-WR2543ND 450Mbps Dual-Band Wireless N Gigabit Router
- 6 -
)
Note:
After a device is successfully added to the network by WPS function, the WPS LED will keep on
for about 5 minutes and then turn off.
1.4.2 The Rear Panel

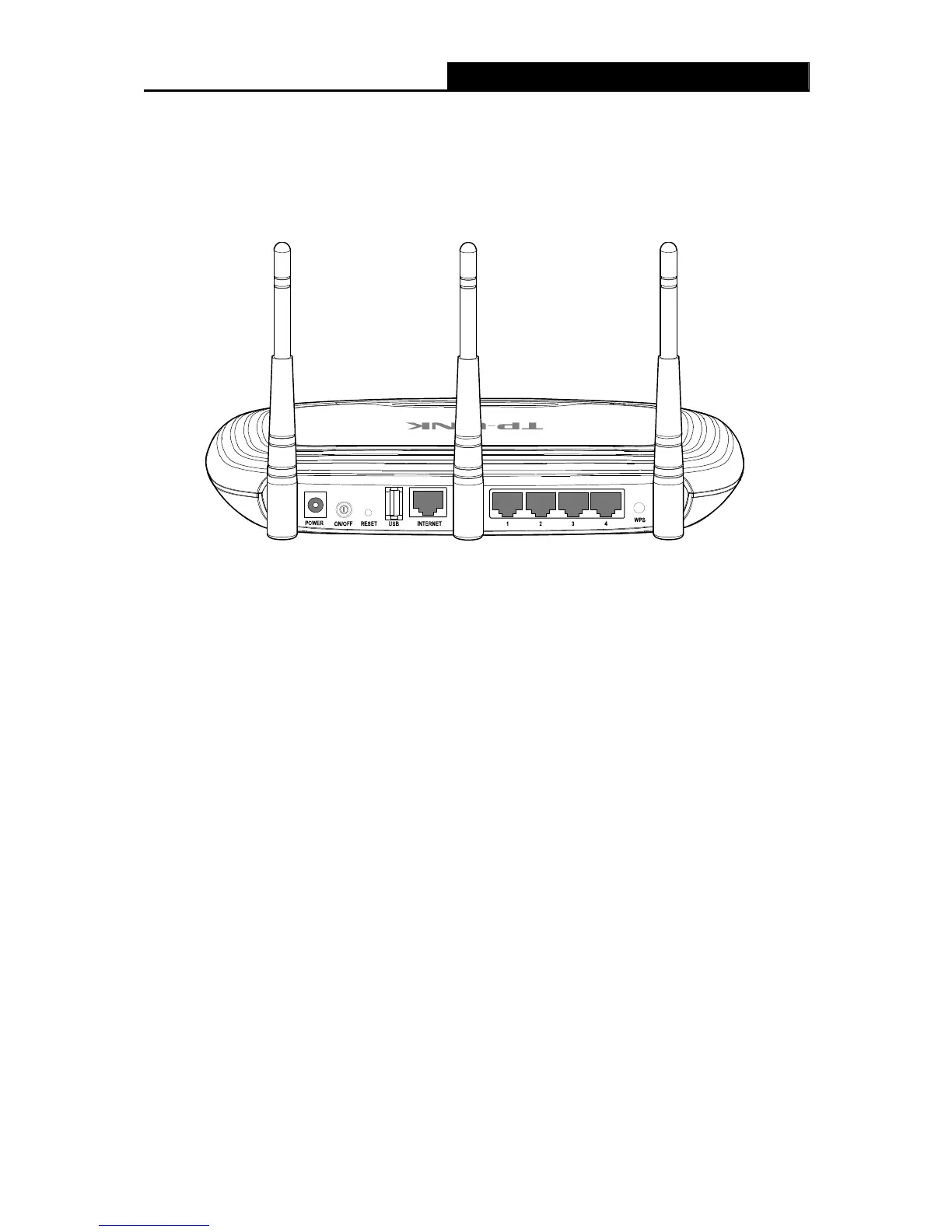

Figure 1-3 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
¾ POWER: The Power socket is where you will connect the power adapter. Please use the
power adapter provided with this TL-WR2543ND 450Mbps Dual-Band Wireless N Gigabit
Router.
¾ ON/OFF: The switch for the power.
¾ RESET:
There are two ways to reset to the Router's factory defaults:
1) Use the Factory Defaults function on “System Tools → Factory Defaults” page in the
Router's Web-based Utility.
2) Use the Factory Default Reset button: With the Router powered on, use a pin to press
and hold the Reset button (approximately 8 seconds) until the SYS LED becomes
quick-flash from slow-flash. And then release the button and wait the Router to reboot to
its factory default settings.
¾ USB: The USB port connects to a USB storage device or a USB printer.
¾ Internet: This port is where you will connect the DSL/cable Modem, or Ethernet.
¾ 1,2,3,4 (LAN): These ports (1, 2, 3, 4) connect the Router to the local PC(s).
¾ WPS: If you have client devices, such as wireless adapters, that support Wi-Fi Protected
Setup, then you can press this button to quickly establish a connection between the
