TL-WR2543ND 450Mbps Dual-Band Wireless N Gigabit Router
- 12 -
1. To access the configuration utility, open a web-browser and type in the default domain name
http://tplinklogin.net
in the address field.

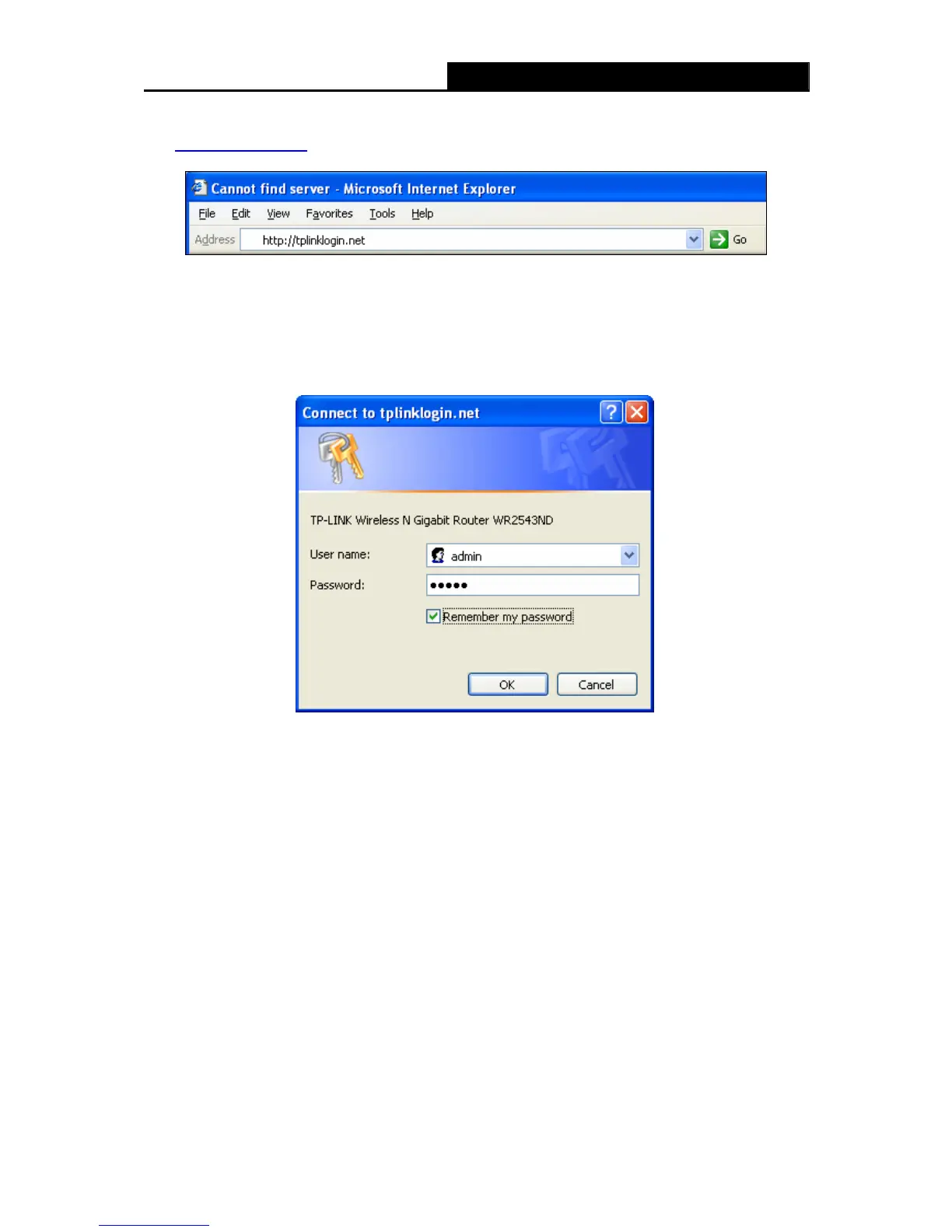

Figure 3-3 Log in the Router
After a moment, a login window will appear, similar to Figure 3-4. Enter admin for the User
Name and Password, both in lower case letters. Then click the OK button or press the Enter
key.
Figure 3-4 Login Windows
)
Note:
If the above screen does not pop up, it means that your Web-browser has been set to a proxy.
Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,
cancel the Using Proxy checkbox, and click OK to finish it.
2. After successfully log in, you can click the Quick Setup menu to quickly configure your
Router.
