TL-WR2543ND 450Mbps Dual-Band Wireless N Gigabit Router
- 78 -
¾ Mode - Here are two options, IP Address and MAC Address. You can select either of
them from the drop-down list.
If the IP Address is selected, you can see the following item:
¾ LAN IP Address - Enter the IP address or address range of the host in dotted-decimal
format (e.g. 192.168.0.23).
If the MAC Address is selected, you can see the following item:
¾ MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g.
00-11-22-33-44-AA).
2. Click Next when finishing creating the host entry, and the next screen will appear as shown in
Figure 4-64.

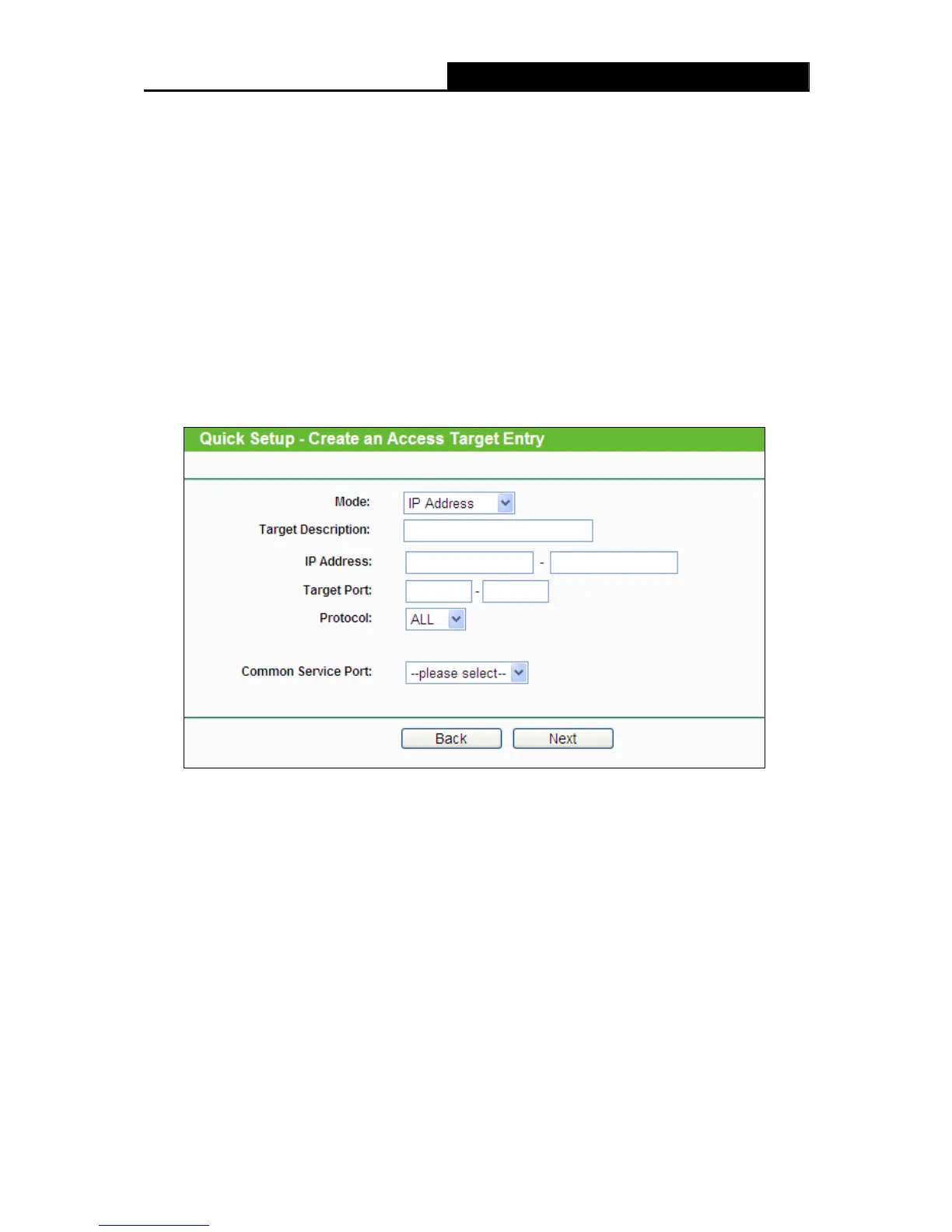

Figure 4-64 Quick Setup – Create an Access Target Entry
¾ Target Description - In this field, create a description for the target. Note that this
description should be unique (e.g. Target_1).
¾ Mode - Here are two options, IP Address and Domain Name. You can choose either of
them from the drop-down list.
If the IP Address is selected, you will see the following items:
¾ IP Address - Enter the IP address (or address range) of the target (targets) in
dotted-decimal format (e.g. 192.168.0.23).
¾ Target Port - Specify the port or port range for the target. For some common service
ports, you can make use of the Common Service Port item below.
