TL-WR700N
150Mbps Wireless N Mini Pocket Router
- 155 -

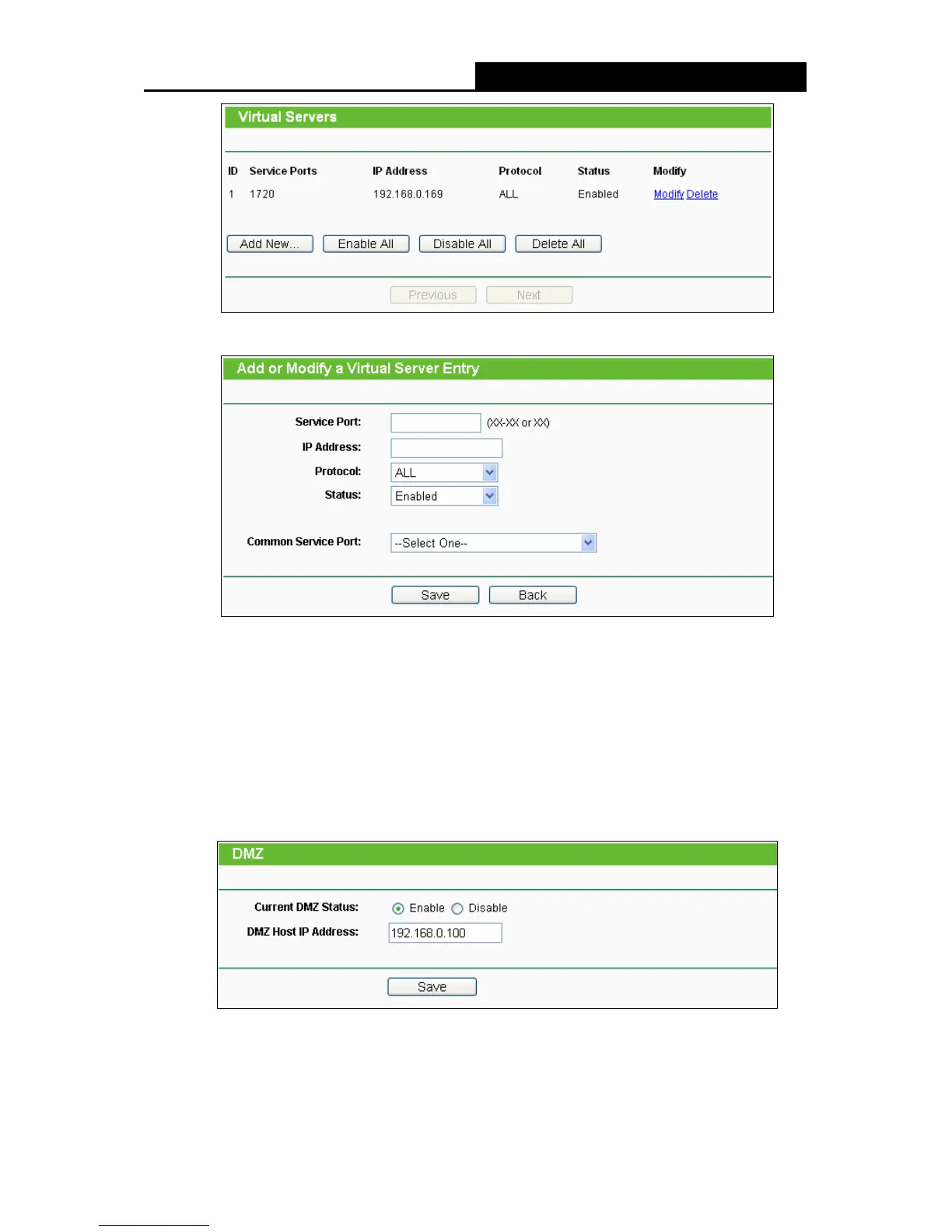

Figure A-4 Virtual Servers
Figure A-5 Add or Modify a Virtual server Entry
Note:
Your opposite side should call your WAN IP, which is displayed on the “Status” page.
4) How to enable DMZ Host: Log in to the Router, click theForwarding” menu on the left
of your browser, and click "DMZ" submenu. On the "DMZ" page, click Enable radio
button and type your IP address into the “DMZ Host IP Address” field, using
192.168.0.169 as an example, remember to click the Save button.
Figure A-6 DMZ
