TP-Link TX-6610 - Page 15

TX-6610 1-Port Gigabit GPON Terminal User Guide
8

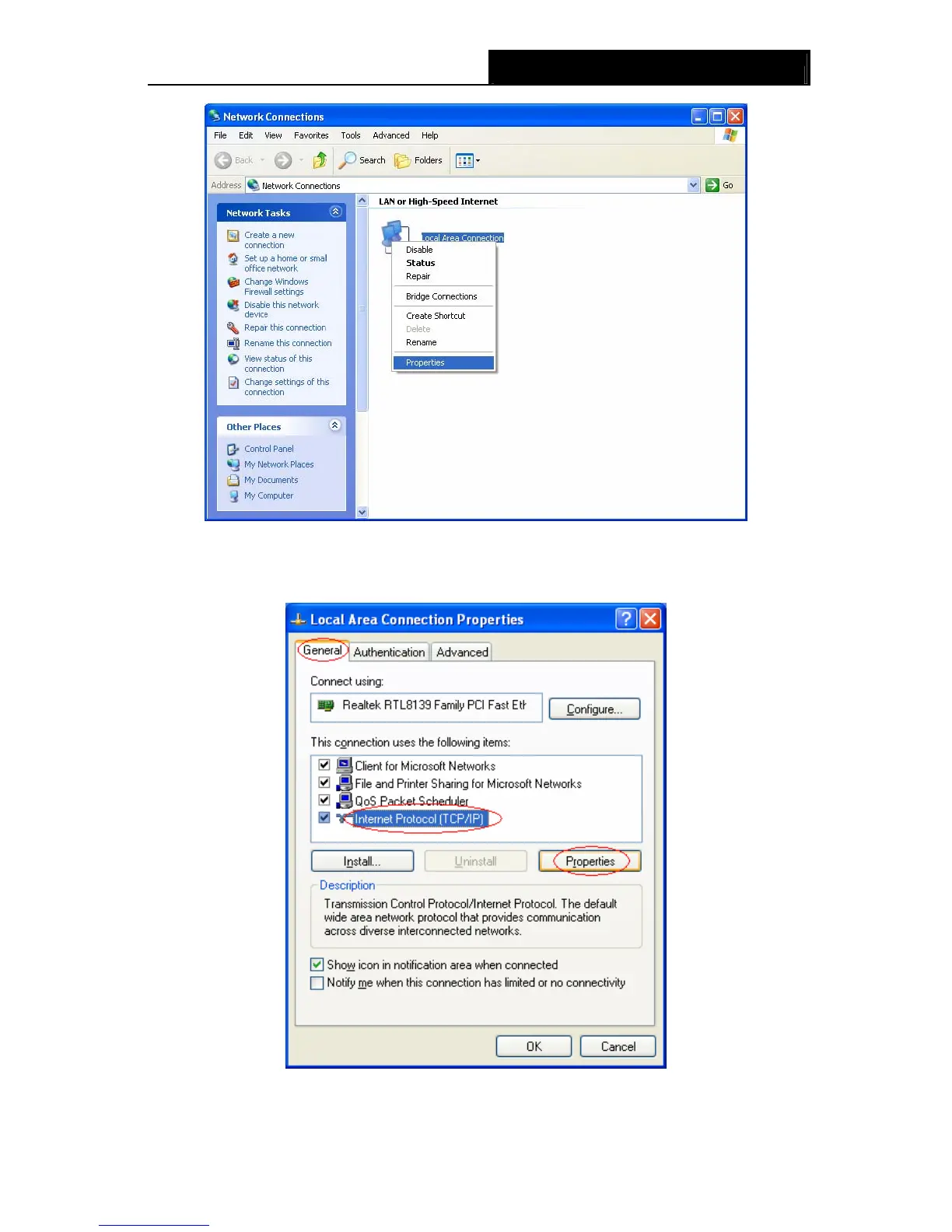

Figure 3-2
Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties
button.
Figure 3-3
Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK.
