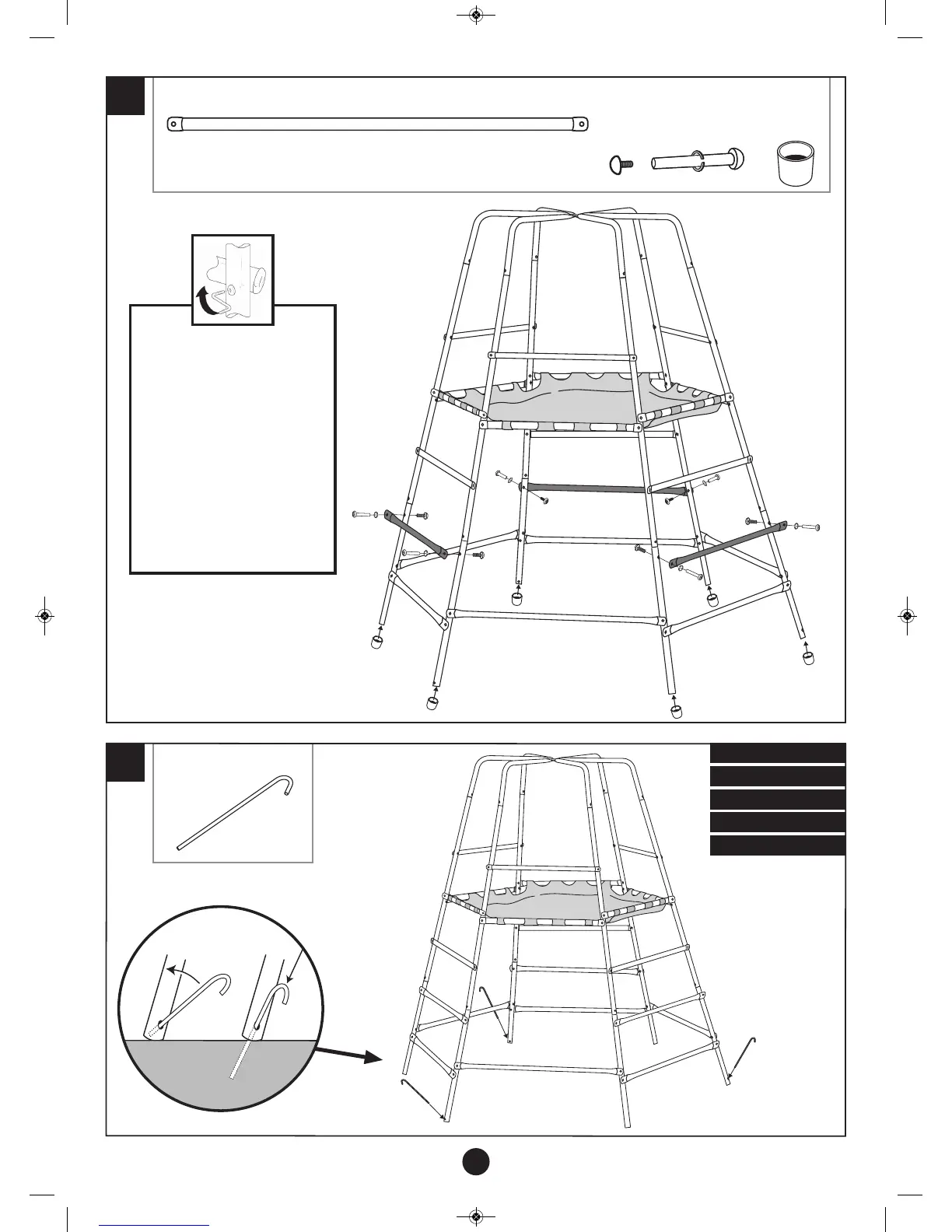

TP Toys Active Fun Explorer2 - Steps 11 & 12: Final Frame Fixings and Ground Anchoring; Step 11: Attaching Upper Frame Bars (MT0334); Step 12: Securing with Stakes (WF5280)

12
WF5280
stakes
x3
Stakes
Les Piquets
Picchetti
Las Estacas
Bodenanker
11
CHECK ALL BOLTS ARE FULLY
TIGHTENED
Assurez-vous que les écrous et
les boulons sont serrés au
maximum.
Controllare che tutti i dadi e i
bulloni siano ben serrati.
Compruebe que todas las
tuercas y tornillos estén
ajustados completamente.
Prüfen Sie, dass alle Muttern
und Bolzen fest angezogen sind.
MT0334 869mm
x3
TP7074
2
5mm
x6
FA3839M
M
6 x 12mm
x6
FA3839F
i
nc Spring Washer
M8 x 24mm
x6
14
TP Explorer Climbing Set with Platform & Den
