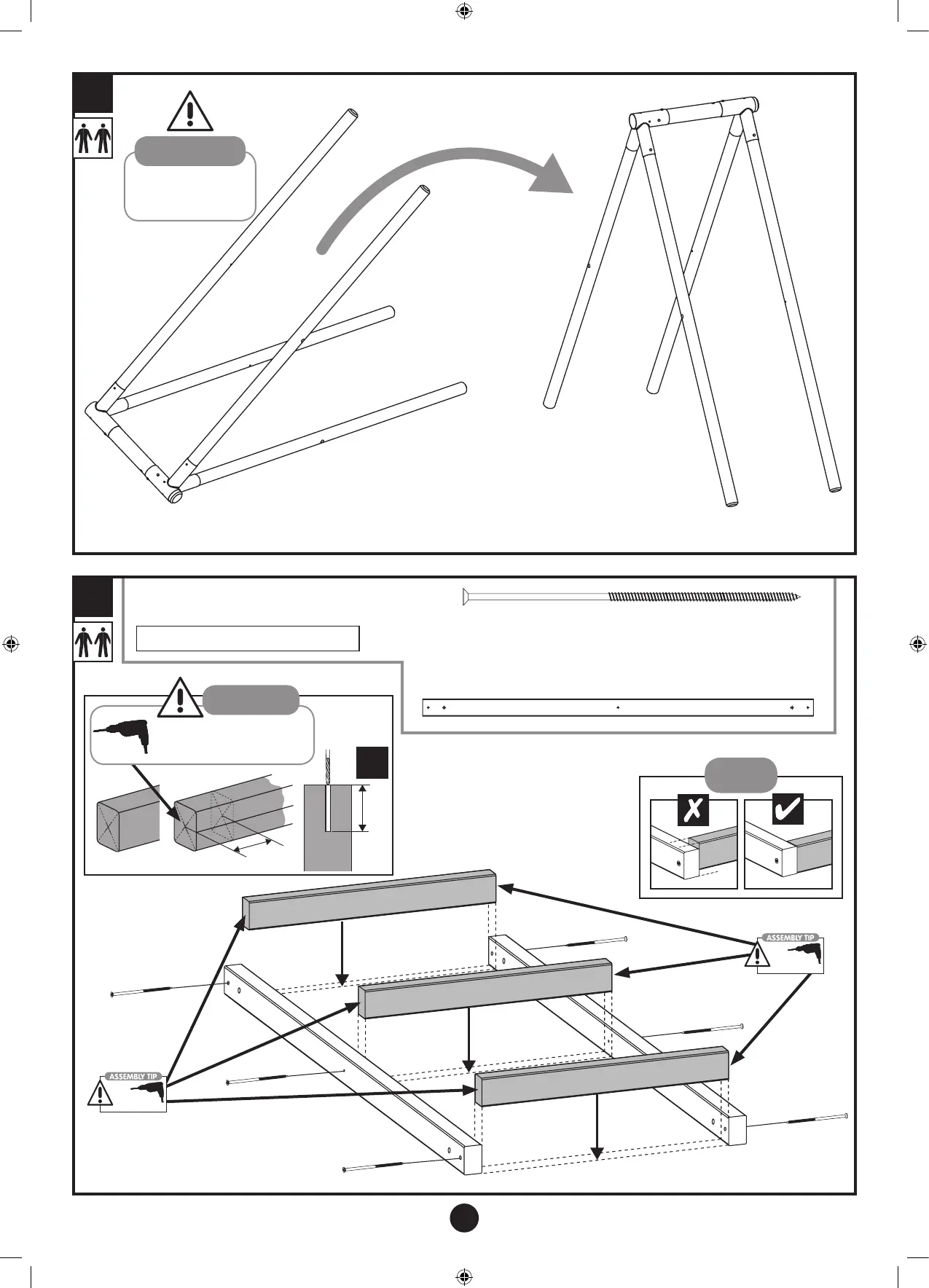

TP Triple Round Wood Multiplay
Stage
6
6 x 155mm Woodscrew x6
FA9784
Roundwood Multiplay Deck Cross Beams x3
MW0225 612mm
Roundwood Multiplay Deck Supports x2
MW0226 1550mm
Stage
5
2 People required to
rotate frame into the
upright postion.
IMPORTANT
ASSEMBLY TIP
ASSEMBLY
TIP
MW0225
MW0225
MW0225
x6
60mm
Approx
60mm
Approx
MW0225
Drill 3-5mm
Pilot holes
Drill 3-5mm
Pilot holes
MW0225 Drill 3-5mm pilot
holes in CENTRE of each end.
IMPORTANT
ASSEMBLY TIP
