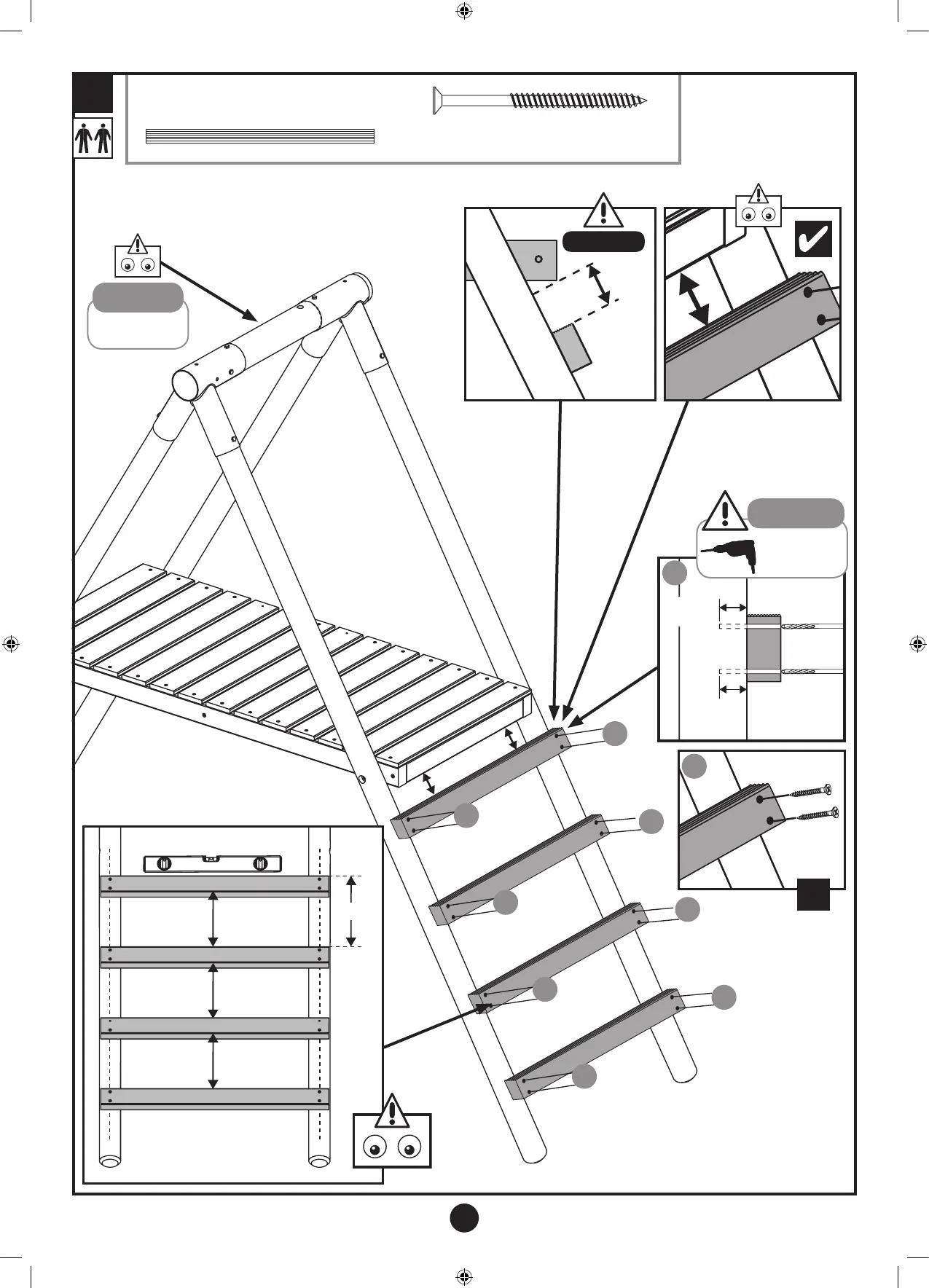

TP Triple Round Wood Multiplay
Stage
10
5 x 80mm Woodscrew x16
FA4521
Multiplay ladder Rung x4
MW0224 850mm
236mm
236mm
236mm
310mm
70mm
WARNING
70mm
Branding badge
is on this side.
IMPORTANT
ASSEMBLY TIP
1
1
25mm
Approx
25mm
Approx
Drill 3mm
pilot holes
IMPORTANT
ASSEMBLY TIP
2
x8
1
1
1
1
1
1
1
