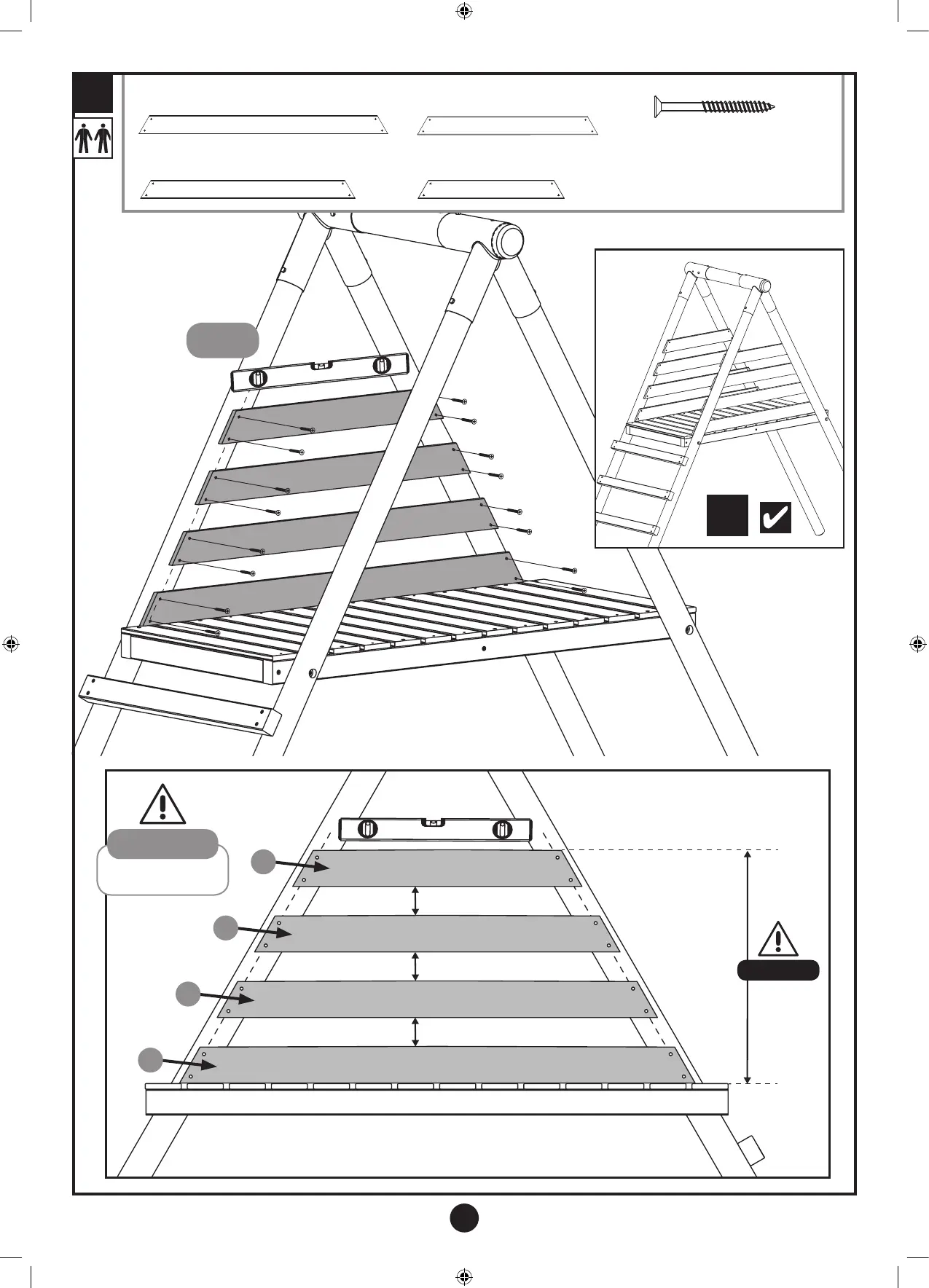

TP Toys active fun TP814 - Stage 11: Barrier Board Installation; Fitting Barrier Boards

14
TP Triple Round Wood Multiplay
Stage
11
ASSEMBLY
TIP
4.5 x 40mm Woodscrew x32
FA4517
Roundwood Barrier Board_4 x2
MW0221 825mm
Roundwood Barrier Board_3 x2
MW0220 1015mm
Roundwood Barrier Board_2 x2
MW0219 1210mm
Roundwood Barrier Board_1 x2
MW0218 1400mm
x2
Space evenly
Space evenly
Space evenly
Min
600mm
WARNING
Fit Barrier boards in
this order
IMPORTANT
ASSEMBLY TIP
1
4
3
2
