21

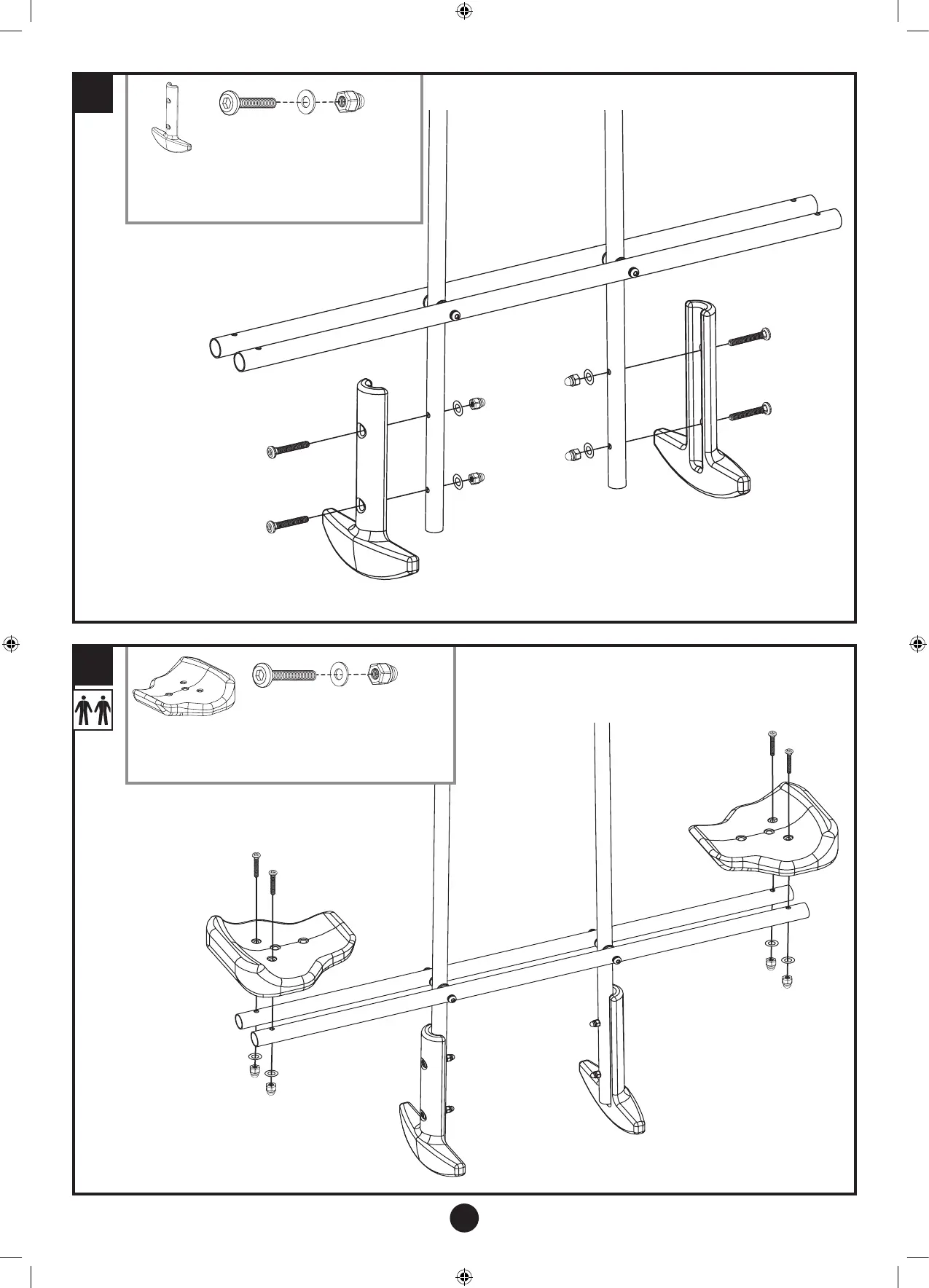

TP Triple Round Wood Multiplay
Stage
20
Glider
Foot Rest
PM0519
x2
Glider Seat
PM0520
x2
35mm
40mm
FA2827 Bolt/washer/locknut Set
x4
M6 x 40mm
35mm
40mm
FA2828 Bolt/washer/locknut Set
x4
M6 x 35mm
Stage
21
TP814 Roundwood Triple Multiplay NEW In0814-D 25.09.17.indd 21 25/09/2017 10:42
