Issue Date: 3-11-05 Rev. Date: 9-12-07 Rev. Level: 13 ECN: n/a OIPM P/N: 3420433
Page 4 of 8
1
10
6
2
3
4
4
4
2
3
5
2
3
9
7

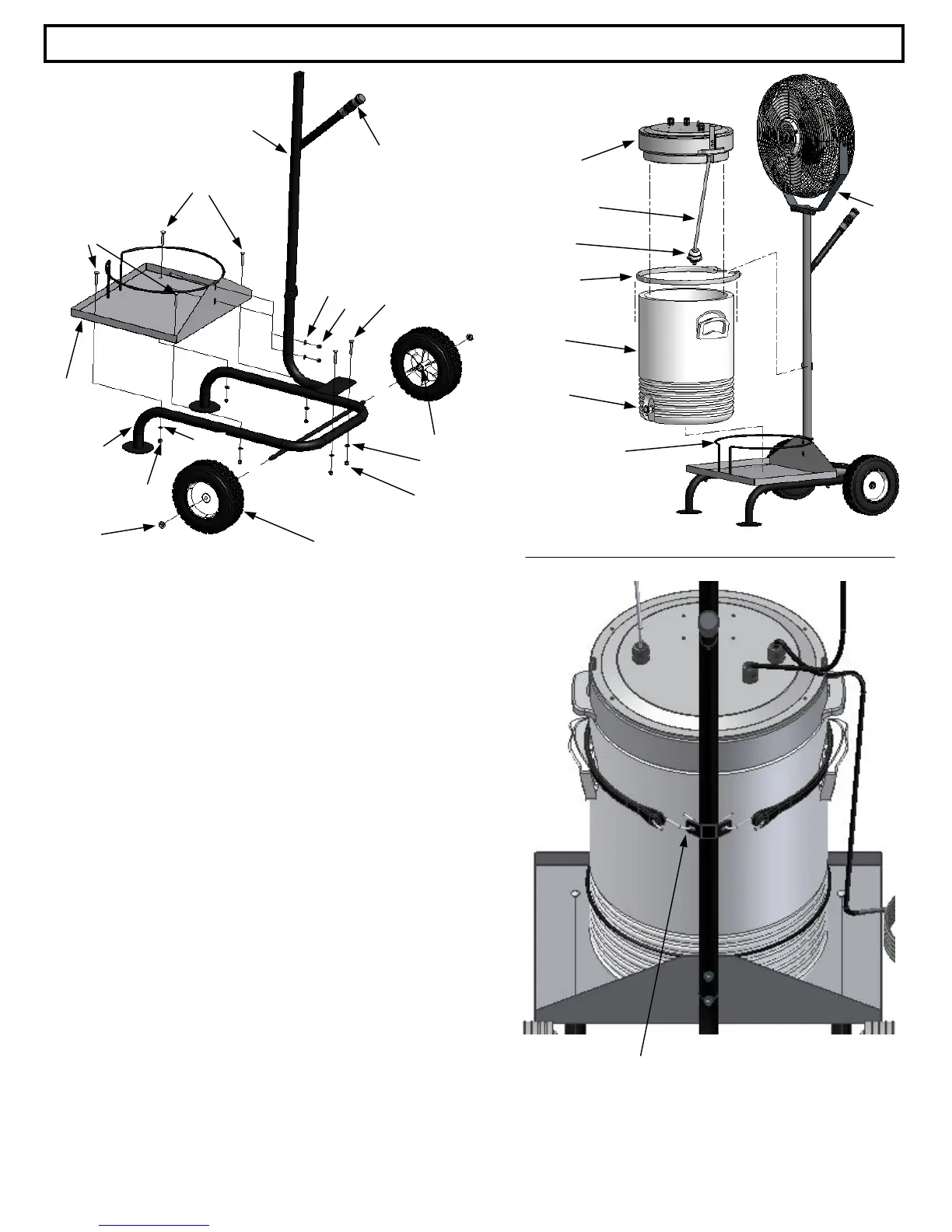

TOOLS REQUIRED: Screwdriver, adjustable wrench,
hammer, and pliers.
1. Place base (item 5) on flat work
downward as shown above. Install wheels onto axle;
making sure the hub extension is facing inward
toward the base. Next place one push-
on axle and using a hammer, seat in place with a
sharp blow. Repeat for other wheel.
2. Ins
tall tray (item 6) on base using four carriage bolts
(item 4), and four each of washers and nuts (items 2
& 3) as shown. NOTE: Finger-
Adjustment may be necessary when securing mast to
tray.
3. Install mast (item 1) by bolting mast to tray and ba
assembly as shown above. Now tighten all bolts.
4.
Place Igloo cooler inside retaining ring on tray with
spout toward front.
5. Secure cooler to mast with retaining strap (item 15).
6.
Place pump enclosure on cooler. Make sure intake
line and filter are in bottom of cooler.
7.
Attach fan yoke (item 14) to top of mast (item 1)
using 1/2-
13 x 1” screw (item 11) and 1/2” lock
washer (item 12). (See illustration on page 3.)
8. Position fan yoke as shown and install 8-
screw (item 13) through yoke and into hole in
Tighten securely. (See illustration on page 3.)
Pump
enclosure
Filter
Cooler
Spout
Retaining ring
Hub
extension
Retaining
strap
Fan
Attach retaining strap s-hooks
to bracket on mast.
Intake line
To Next Page
