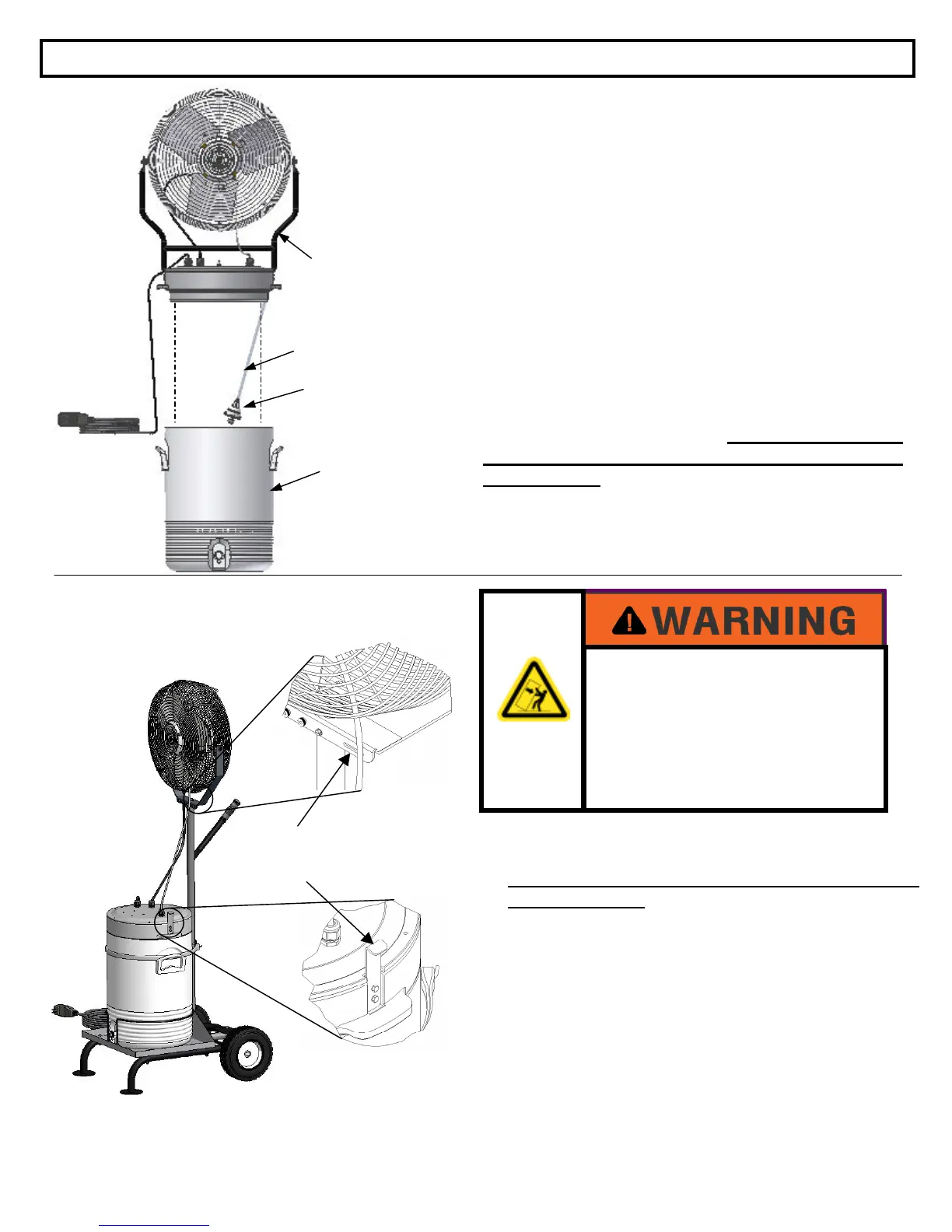

To prepare models PM-18S and PM-18FO for operation:
1.
Take empty cooler to the approximate location to be
misted. Carrying a full cooler will be difficult to do
since it will weigh approximately 80-pounds.
2. Fill cooler.
3.
Place the fan / pump enclosure on the Igloo cooler
as shown at left. *
4. Make sure intake li
ne and filter are in bottom of
cooler.
5. Follow Set-up / Operation instructions on page 5.
* Model PM-
18FO comes without a cooler. Since the
pump enclosure is specifically made to fit a 10-
Igloo cooler, it must be used only with a similar Igloo
cooler, supplied by the user.
PM-18FO WITH ANY OTH
RESERVOIR!
Fan / pump
enclosure
10-gallon
Igloo cooler
Filter
TIP HAZARD
•
Serious injury may occur.
•
Support weight of fan with
free hand when moving cart.
•
Do not fill cooler before
moving cart.
To prepare model PM-18C for operation:
1. Assemble as described on pages 3 and 4.
2. DO NOT FILL COOLER B
MISTER CART.
Water in cooler will add extra
weight (ap
prox. 80 lbs.) and is likely to spill out when
cart is tilted back and will make the cart unstable and
hazardous to move.
3. Carefully move mister cart to desired location
4. Remove pump enclosure and hang it on the slot
located on the fan yoke (see detail views at left)
5. Fill cooler
6. Replace pump enclosure on cooler
7. Follow Set-up / Operation instructions on page 5
– Pump enclosure should not be hung from yoke for
extended periods of time.
Intake line
Hanging Slot
Hanging Tab
