Issue Date: 3-11-05 Rev. Date: 9-12-07 Rev. Level: 13 ECN: n/a OIPM P/N: 3420433
Page 7 of 8
ITEM #
QTY. P/N DESCRIPTION
1 1 6399099 FRONT GUARD (PAINTED)
2 1 63991002 REAR GUARD (PAINTED)
3 1 58381001 SUPPORT TUBE ASSEMBLY
4 1 58364003 MOTOR TOTALLY ENCLOSED
5 1 44115001 CORDSET
6 1 58299008 FAN BLADE ASSEMBLY
7 1 44114001 SWITCH (TOGGLE-WATER PROOF)
8 5 44108001 NOZZLE (BRASS)
9 1 44105001 TUBING (1/4" NYLON) 80" LENGTH
10 2 3443032 BOLT 1/4" - 20 X 1.500" CARRIAGE
11 2 2480700 RUBBER BUSHING
12 2 0004901 NUT 1/4" - 20 HI-CROWN NYLON
13 1 63924001 COOLER (10 GAL.)
14 2 44108002 PLUG
15 1 44104001 FILTER
16 1 58467001 MISTING HUB
17 1 2489800 BARB FITTING – NOT SHOWN
(Connects intake line hose to filter)
18 1 2490000 TUBING 14-1/2” – NOT SHOWN
(Intake line hose)
19 1 2419200 Half Coupling – NOT SHOWN
(Connects to intake side of filter)

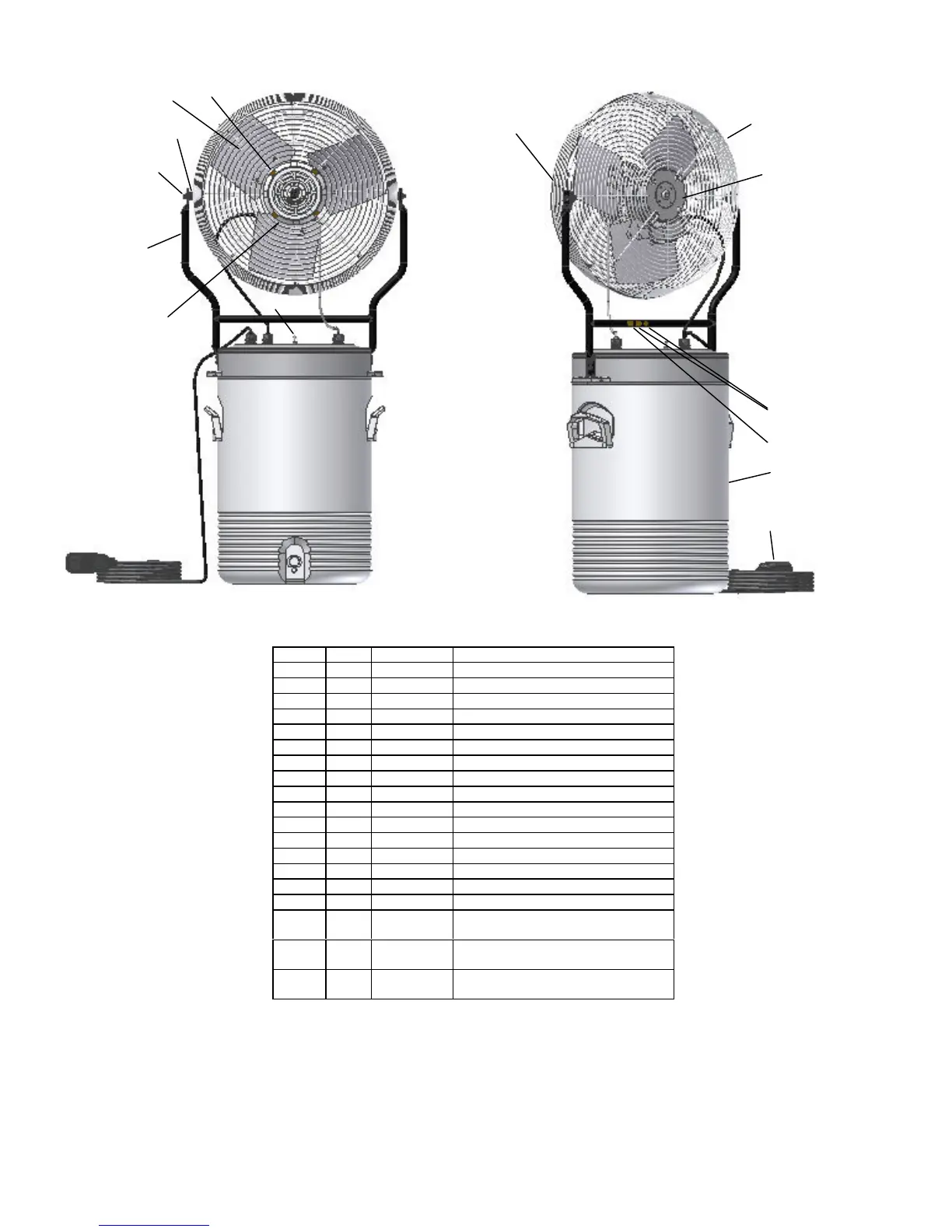

ASSEMBLED VIEW AND REPLACEMENT PARTS LIST
FOR PM-18FO & PM-18S
