53
Symmetrical (XLR) and asymmetrical (Cinch / RCA) pre-amplifier output for
connecting external output stages or active loudspeakers.
Interface for diagnosis work and computer-controlled operation of device
functions. (Home-Automations-Systems e. g. CRESTRON, AMX).
Control output for devices with H LINK inputs.
The P 3100 HV can be turned on and off by means of a switching voltage (+5 …
+20 Volt) connected to this socket. If the trigger function is used to switch the
P 3100 HV on, it is automatically set to the source previously selected in the
menu (see chapter entitled ‘Basic settings of the P 3100 HV’)

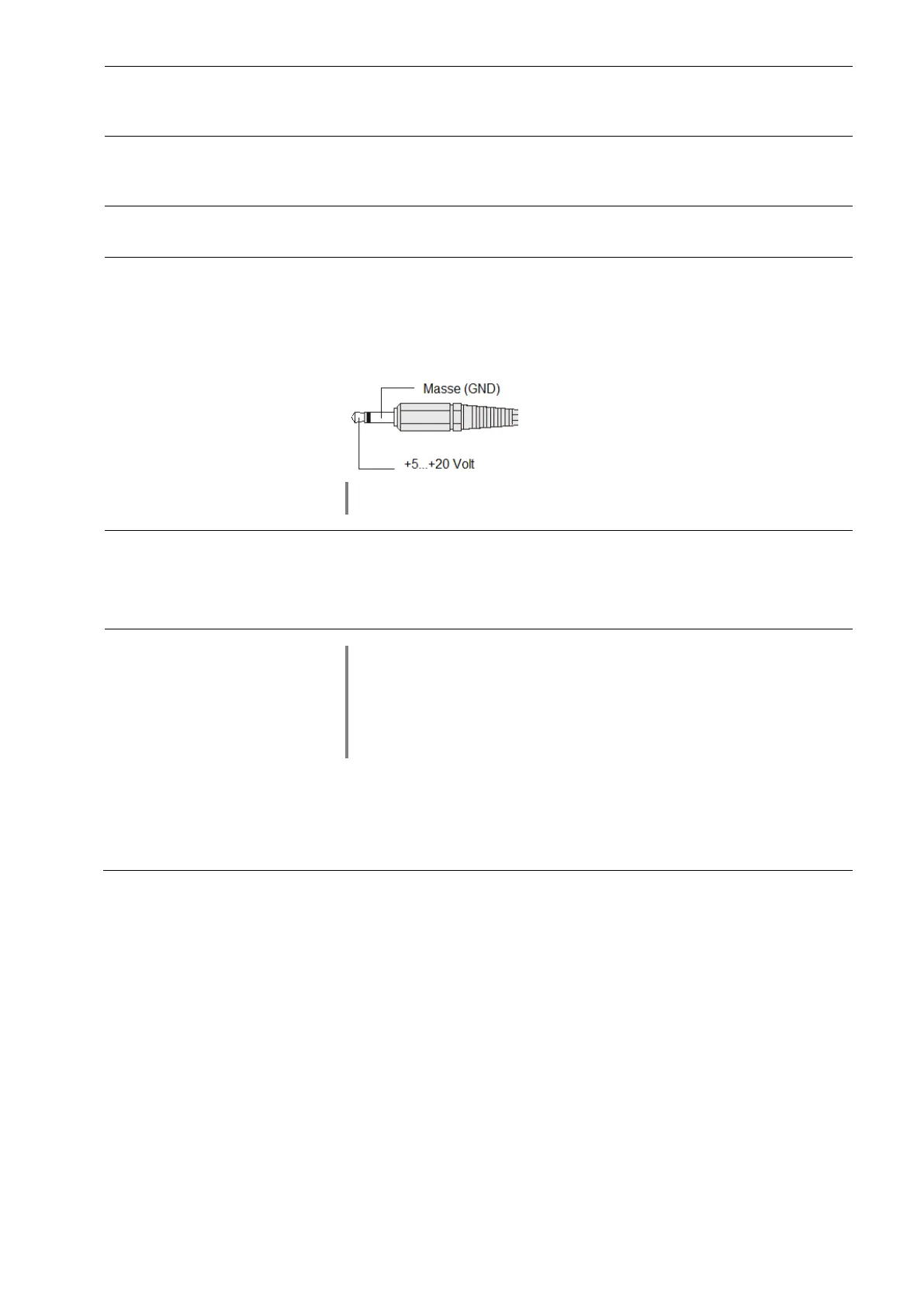

Connector assignment (3.5 mm barrel plug)
The Trigger function can be switched on and off in the Amplifier menu.
See chapter entitled ‘Basic settings of the P 3100 HV’.
If you wish to control the machine from an adjacent room, or if there is no line-
of-sight connection to the integral remote control receiver fitted to the
P 3100 HV (cupboard doors, etc.), then the accessories E2000 remote
control receiver can be connected to this socket.
To avoid any coupling of unwanted noise signals from the digital power supply
to the analog power supply of the P 3100 HV, the digital and analogue power
supplies are located in separate shielded compartments. For best possible
separation the power supplies have their own separate power supply sockets.
Always connect both mains sockets to the mains supply when operating the
P 3100 HV.
The mains lead for the digital power supply is plugged into this socket.
The mains lead for the analogue power supply is plugged into this socket.
For correct connections refer to the sections 'Installation and wiring' and
'Safety notes'.
