6.5 HEPA & ULPA Filtration for Model DCC
Either HEPA filtration or ULPA filtration is employed in the Model DCC to maintain clean room specifications.
The filter is installed behind the right side duct wall. Discharge air from the conditioning plenum enters the
filter before flowing out into the workspace.
• HEPA (High Efficiency Particulate Air) filters are rated 99.97% efficient at 0.3 microns.
• ULPA (Ultra Low Particulate Air) filters are rated 99.99% efficient at 0.12 microns.
A stainless steel Clean Room Insert frame is installed in the oven which houses the HEPA and ULPA filters.
The insert encompasses the workspace of the oven with the filter mount on the right wall and return air flow
perforations on the left wall. The insert floor covers the bottom conditioning plenum.
Filters can be changed without removing the insert. To access the conditioning plenum for maintenance
purposes, the insert must be removed. It can also be removed for cleaning.

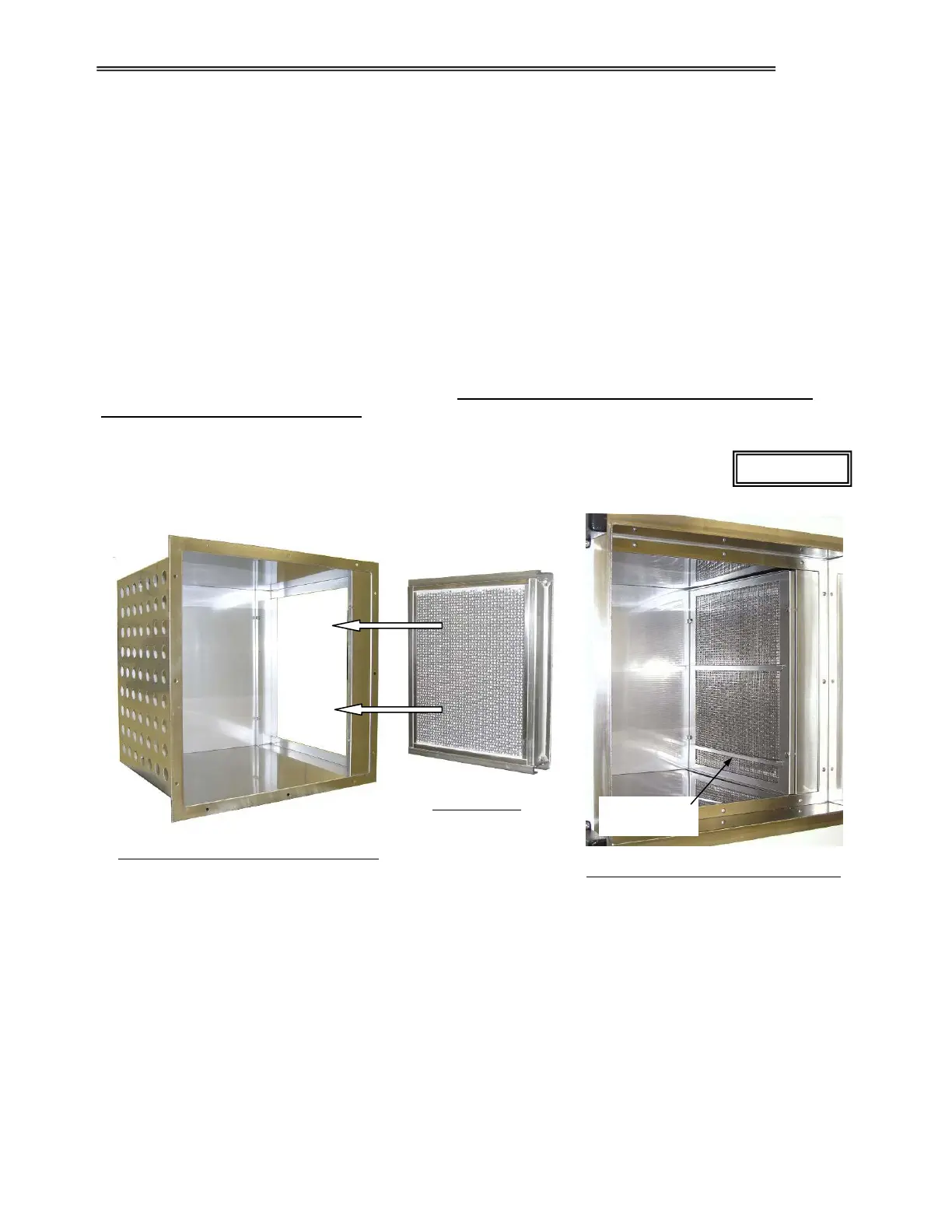

ULPA FILTER
MODEL DCC206 CLEAN ROOM INSERT
MODEL DCC206 – INSERT INSTALLED
Model DCC206
Screen & Shelf
Slides Installed
