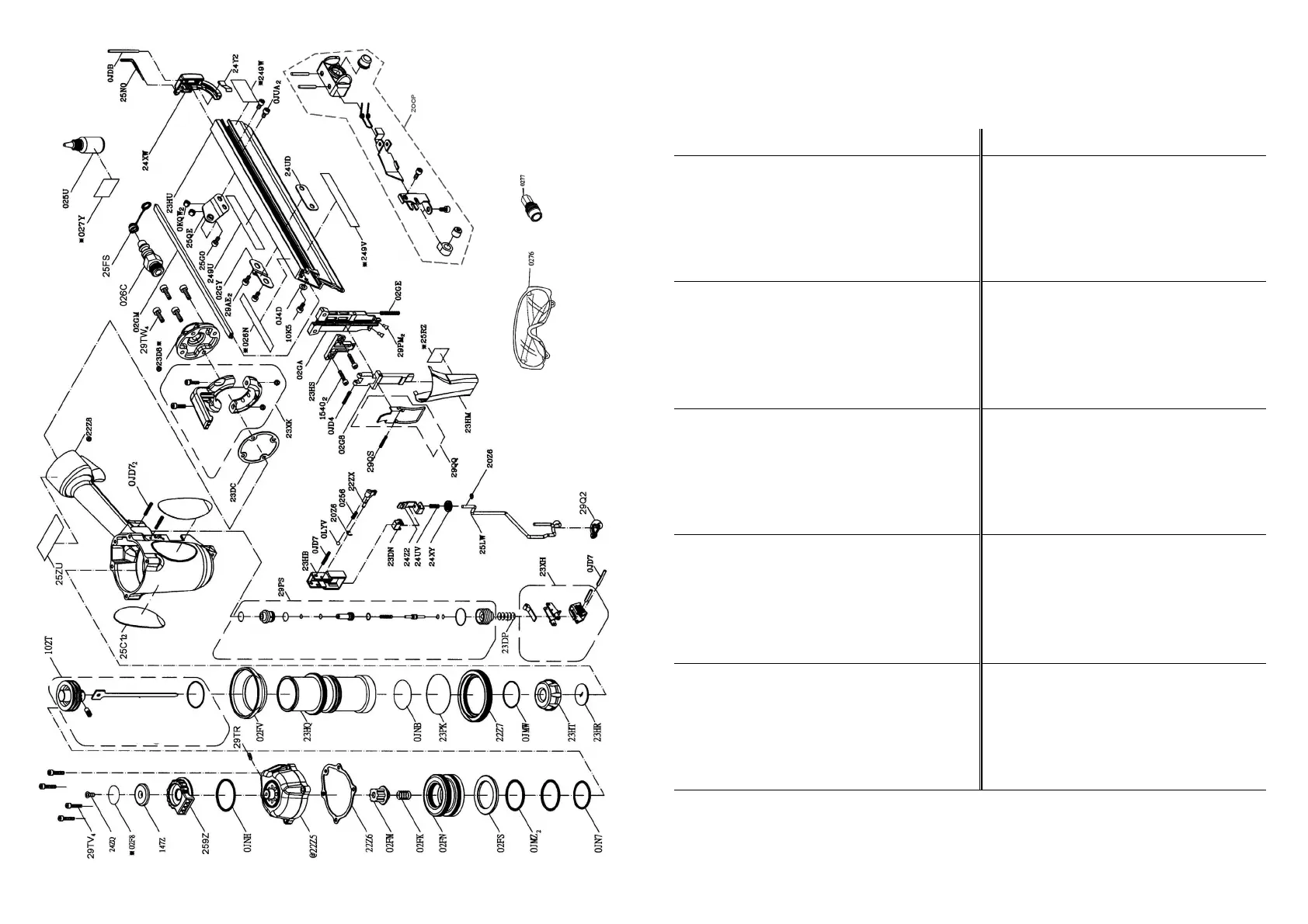

Tradesman 8560 - Parts List; Component Identification

8560 PART LIST
I.D.
No. Description Size Qty I.D. No. Description Size Qty
0256 COMPRESSION SPRING 1 23DC END CAP SEAL 1
0276 SAFETY GLASSES 1 23DN GUIDE CLAMP
#06
1
0277 FEMALE QUICK CONNECTOR 1 23DP COMPRESSION SPRING 1
1540 HEX.SOCKET HD.CAP SCREW M5X0.8-25 2 23HB SAFETY LEVER GUARD
#06
1
025U PNEUMATIC AIR TOOL OIL 1 23HM COVER PLATE GUARD
#06
1
026C QUICK CONNECTOR 1 23HQ CYLINDER 1
026N WARNING LABEL 1 23HR NOZZLE 1
027Y LABEL 1 23HS DRIVER HOLDER 1
02F8 CAUTION LABEL 1 23HT BUMPER 1
02FK COMPRESSION SPRING 1 23HU MAGAZINE SEAT 1
02FM BUMPER 1 23PK O-RING 1
02FN PISTON VALVE HEAD 1 23XH TRIGGER ASSEMBLY 1
02FS PISTON STOP 1 23XK HOOK ASSEMBLY
02FV PRSSING GINT
#06
1 249U LABEL 1
02G8 FRONT PANEL 1 249V LABEL 1
02GA GUIDE PLATE 1 249W LABEL 1
02GE COMPRESSION SPRING 1 24UD SET PLATE 1
02GM NAIL GAIDE 1 24UV COMPRESSION SPRING 1
02GY SET PLATE 1 24XW STOP PLATE 1
0J4D FLAT WASHER φ5X10-1 1 24XY DEPTH ADJUSTMENT WHEEL 1
0JD4 SPRING PIN 38093 1 24Y2 GUIDE SPRING PLATE 1
0JD7 SPRING PIN 3.0-22 5 24Z2 ADJUSTING PLATE 1
0JDB SPRING PIN 3.0-38 1 24ZQ HEX. SOC. COUNTERSUNK HD. SCREW M5X0.8-10 1
0JMW O-RING P46 1 259Z GUIDE PLATE 1
0JMZ O-RING AS-138 2 25C1 LABEL 2
0JN7 O-RING 32X2.5 1 25FS QUICK COUPLING COVER 1
0JNB O-RING 55X2 1 25LW SAFETY LEVER 1
0JNH O-RING 40X2.5 1 25N0 HEX. WRENCH 4-64 1
0JUA HEX. SOC. HD. CAP BOLT M5X0.8-8 2 25QE SUPPORT 1
0KQW NUT CHUCK M5X0.8 T=5 2 25RZ WARNING LABEL 1
0LYV STEEL BALL ψ4 1 25ZU WARNING LABEL 1
102T DRIVER ASSEMBLY 1 29AE
HEX.SOCKET HD.CAP SCREWS
M5*0.8-8 2
10K5 HEX. SOC. HD. CAP BOLT M5X0.8-8 3 29PM
HEX. SOC. SET SCREW
M4×0.7-5 2
147Z BLOCK
#06
1 29PS SWITCH ASS'Y 1
20Z6 E-RING E-3 2 29Q2 NO-MAR TIP 1
22Z5 COVER #06 1 29QQ LOCKING HANDLE ASS'Y 1
22Z6 CYLINDER CAP SEAL 1 29QS SPRING PIN 1
22Z7 CYLINDER RING 1 29TR HEX. SOC. SET SCREW M5X0.8-8 1
22Z8 BODY #AW 1 29TV HEX.SOCKET HD.CAP SCREW M5X0.8-25 4
22ZX ADJUSTMENT LEVER 1 29TW HEX.SOCKET HD.CAP SCREW M5X0.8-16 4
23D8 REAR COVER #06 1 Z00P PUSHER ASS`Y 1
2629 INSTRUCTION MANUAL
1
2448 CARRY CASE
1
