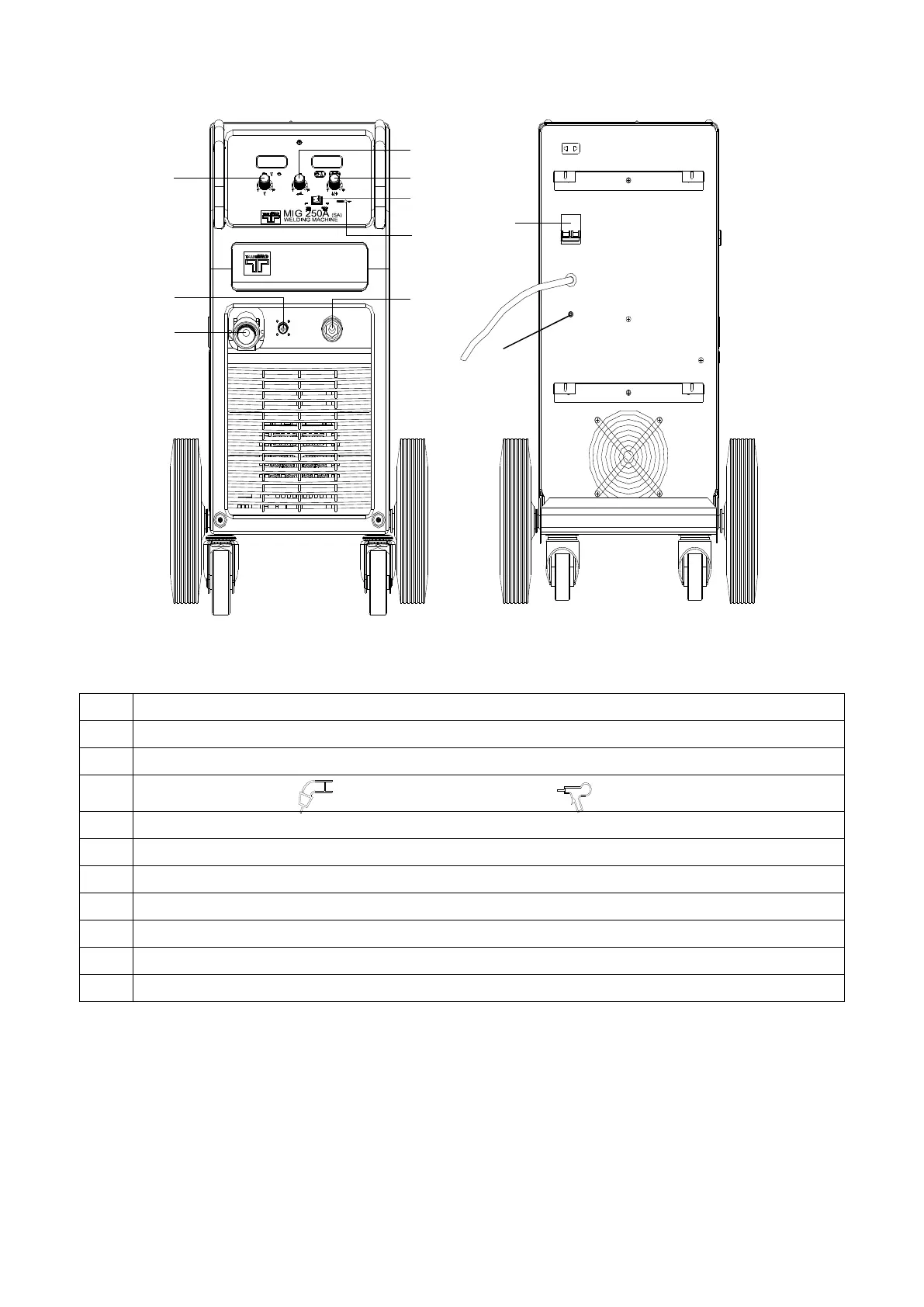

MIG 250SA Compact CO2 Welding Machine Facial Sketch：
No.
Description
1
Power switch ON/OFF
2
Power indicator
3
Welding selector MIG torch spool gun
4
Welding voltage adjustment
5
Electronic Choke adjustment (Penetration)
6
Welding current (feed wire speed ) adjustment
7
Welding torch euro adaptor
8
Four core socket receptacle Spool gun motor plug (SB8)
9
Dinse connector socket : welding machine negative output ( - )
10
Gas inlet nipple
