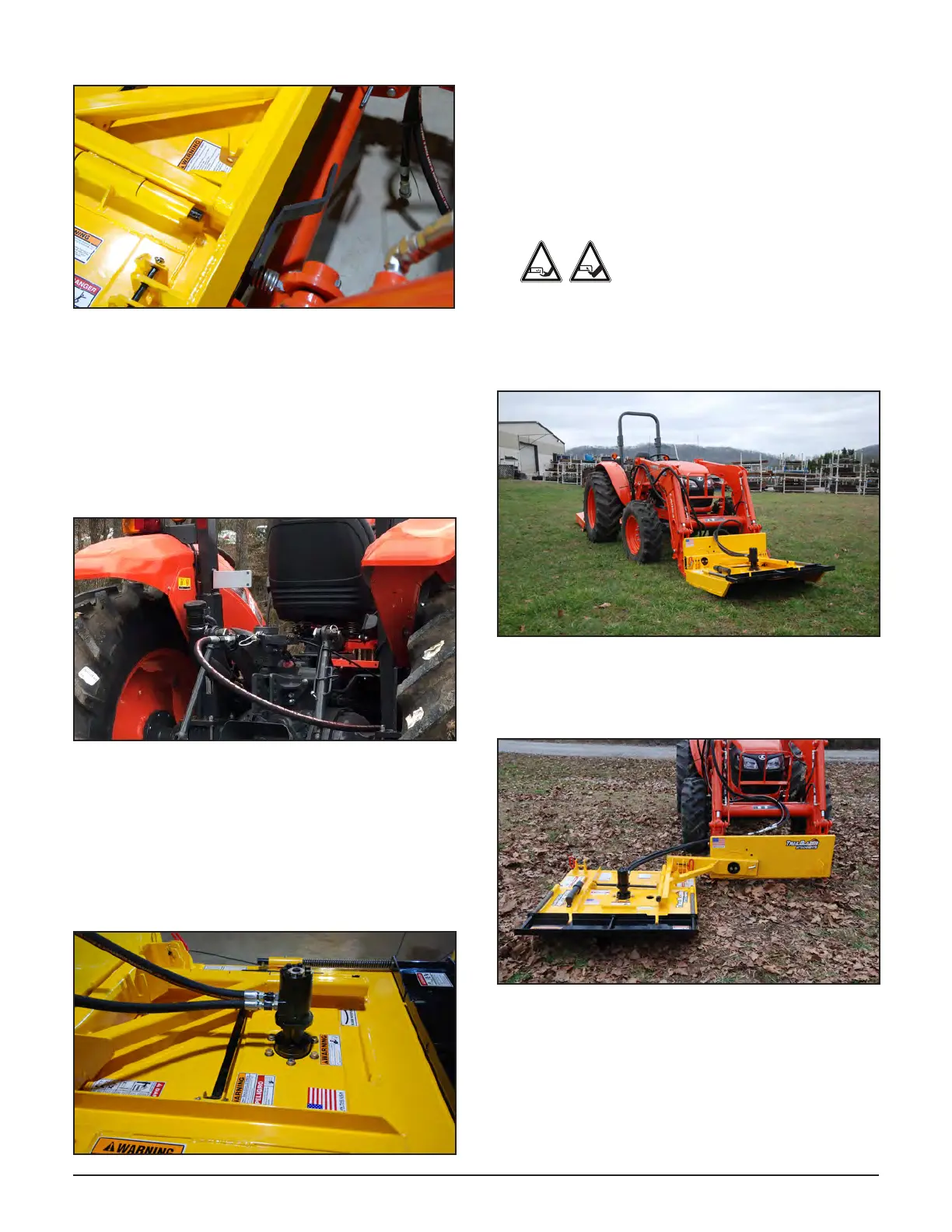

2. Lock the mower to the lift arms.
3. Turn OFF the tractor engine and dismount.
4. Connect a user-supplied hydraulic supply hose from
the tractor supply manifold valve to the hose routed
to the right port of the hydraulic motor. The pump
port conguration is from tractor’s viewpoint.
The hose MUST be 5/8 inch diameter. DO NOT
use smaller or larger diameter hoses.
5. Connect the left return port on the motor to a user
supplied hose (5/8 inch diameter) routed to the
tractor’s reservoir.
The return hose must have free-ow back into
the pump reservoir and not be ported through the
tractor’s manifold valve. DO NOT connect into the
tractor’s rear remote return valve.
Note: An optional Hose Kit is available consisting
of two male QD couplings, two female QD
couplings, two 5/8” diameter hoses, and two
pump ttings.
6. Start the mower and check for rotation. Make sure
the pump is turning in the correct rotation. Hooking
up the hoses to the wrong port will make the cutters
operate in a reverse direction.
Do not put hands or feet under the
offset mower deck while the blades
are rotating.
7. Place the mower in the desired cutting conguration.
a. Horizontal in-line mowing conguration as set
from the factory.
b. Horizontal offset mowing conguration. Refer
to “5.5 Horizontal Offset Mowing Conguration”
on page 24.
