9. Parts
Replacement parts are available from your authorized
Dealer Parts Department or from Trailblazer.
Item Part No. Description Qty.
1 620000
UNIVERSAL SKID STEER PLATE
2
2 620001
JOHN DEERE 400 & 500 SERIES PLATE
6
3 620002 EURO LOADER PLATE 1
4 620003
UNIVERSAL PIN-ON PLATE 1
5 620004 PIVOT ARM ASSEMBLY 1
6 620005
PLATE/PIVOT ARM BEARING & BEARING
CUP
2
7 620038 BEARING CAP
8 620006
BEARING CAP BOLT KIT (5/8" X 1.25" GRADE
8 BOLT, LOCKWASHER)
9 620007 HANDLE T-PIN with R-CLIP
10 620008
POSITION LOCK PIN ASSEMBLY (BENT PIN,
R-CLIP, SPRING, ROLL PIN -3/16 X 1.25")
11 620009 POSITION LOCK PIN SPRING ONLY
12 620010
PIVOT ARM END CAP with SCREWS (1/4" X 1"
SELF TAPING)
13 620011 PIVOT ARM /DECK CONNECTING ROD
14 620012
CONNECTING ROD SPRING ROLL PIN (3/8"
X 1.5")
15 620013 DEGREE POSITION STABILIZER BAR
16 620014
STABILIZER BAR BOLT KIT ( 3/8" X 3" GRADE
8 BOLT, NYLON LOCKNUT)
17 620015
STABILIZER BAR ADJUSTMENT PIN KIT (PIN,
2 WASHERS, R-CLIP)
18 620016 SAFETY SHIELD
19 620017 SAFETY SHIELD SPRING
Item Part No. Description Qty.
20 620018
SAFETY SHIELD SPRING BOLT KIT (3/8" X 2"
BOLT, NYLON LOCKNUT)
21 620020 MOTOR 15-20 GPM
22 620021 MOTOR SPACER
23 620022
SPACER BOLTS (3/8"-16 X 1" BLACK STEEL
SOCKET CAP SCREW)
24 620023 COLLAR
25 620024
COLLAR SET SCREW (3/8-16 X 0.375" HEX
DRIVE)
26 620025
COLLAR SET SCREW (3/8-16 X 0.25"HEX
DRIVE)
27 620026 BEARING RETAINER RING (1 3/16")
28 620027 MOTOR HUB BEARING (6206-2RS)
29 620028 KEY WAY - MOTOR END (1/4" X 1.25")
30 620029 SPINDLE
31 620030 KEY WAY - HUB END (1/4" X .5")
32 620031 MOTOR HUB MOUNT
33 620032
HUB BOLT KIT (1/2-13 X 1.5" GR. 8 HEX CAP
SCREW, WASHER, LOCKWASHER)
34 110021 ZERK FITTING
35 620033 BLADE CARRIER NUT - LEFT HAND THREAD
36 620034 BLADE CARRIER COTTER PIN (1/8" X 2.25")
37 620035 BLADE CARRIER
38 TB-44 CUTTER BLADES - 44" (SOLD IN PAIRS ONLY)
39 110012
BLADE BOLT KIT (INCLUDES (2) - 1 1/8"
BOLT,WASHER,NUT) (SOLD IN PAIRS ONLY)
40 620037 44" DECK ONLY W/DECALS

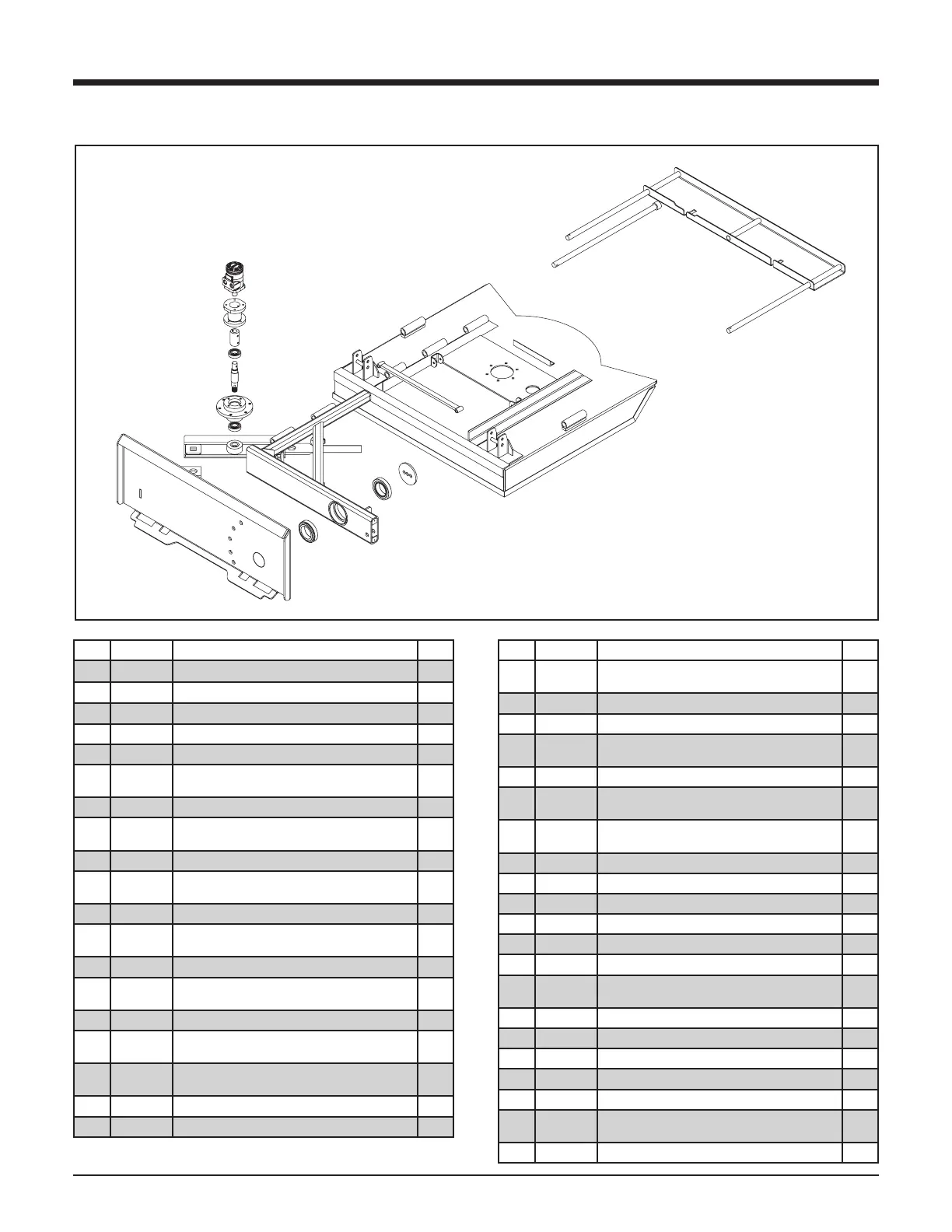

The following pages contain a list of serviceable parts
for the Trailblazer offset mower.
