7

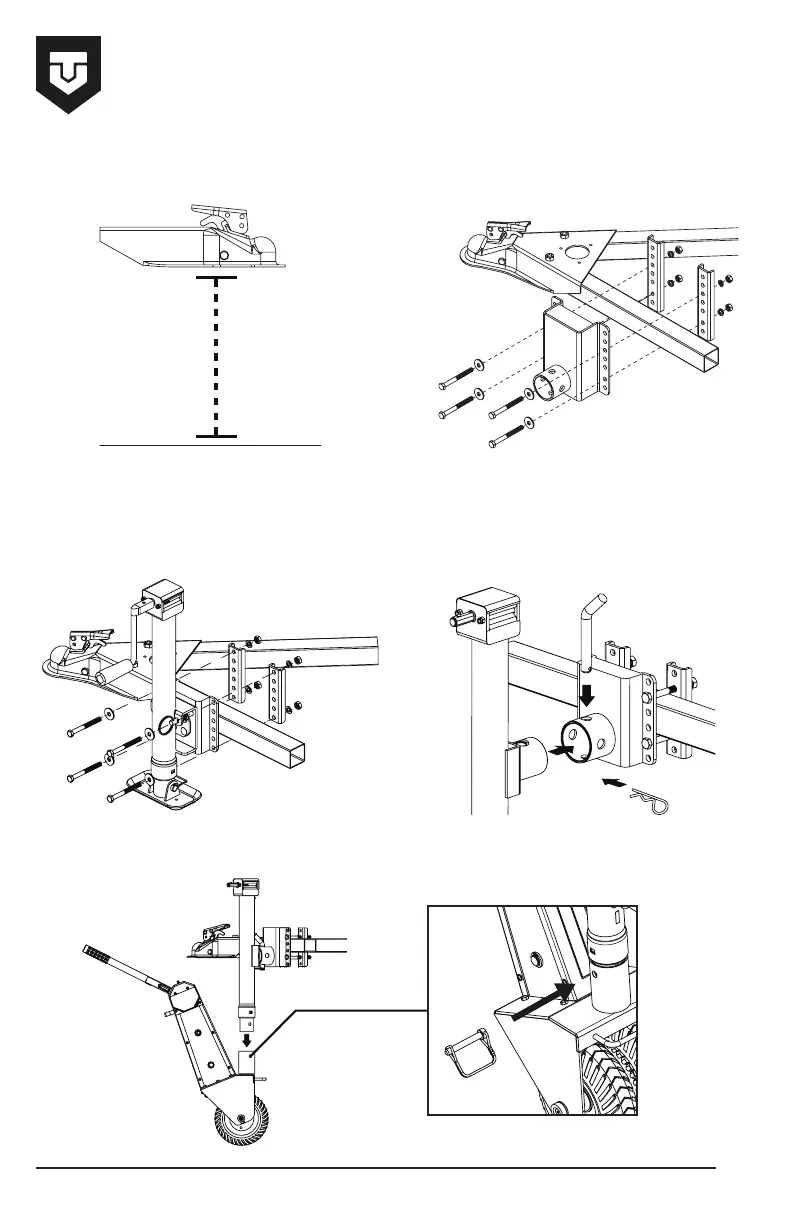

INSTALLATION ONTO JACK
STEP 1A (JX2-S): Check trailer height and
ensure installation is on a at, solid surface.
STEP 2B (JX5-S): Connect Side Jack via
pipe mount to the bracket and insert stow
pin. Lock with security bolt located in the
back of the bracket.
STEP 1B (JX5-S): Check trailer height and
ensure installation is on a at, solid surface.
Install mounting bracket into trailer frame.
STEP 3: Lower the hitch towards the unit’s rotating coupler and attach rotation pin to secure.
STEP 2A (JX2-S): Install Side Jack onto
trailer frame via mounting bracket.
To Next Page
