Blazer4 150X/200X Set up instruction
2
2. Assembly

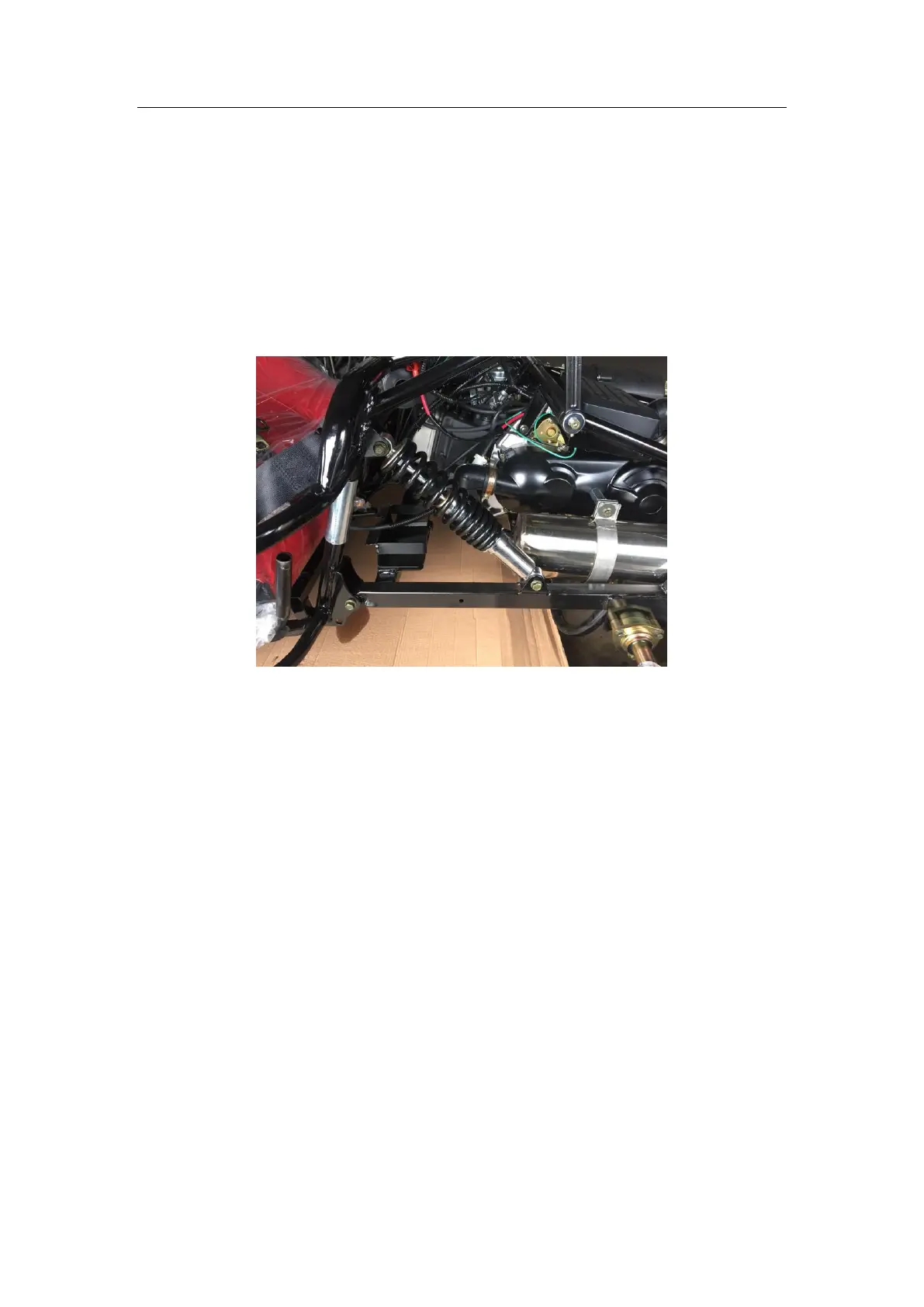

2.1 Assemble the rear shocks (pic.2): take down the bolts from the shocks;
lift the rear swing arm to let the top of shock into the mounting of
frame, use 37-44NM torque to fix the shocks attached the frame.
(Note: 1NM = 0.74 lb ft)
Pic.2
2.2 Assemble the front lower suspension arm (pic.3): lift the frame over
the ground, take down the bolts and washers on the strut, attach the lower
suspension arm to the strut, put on the washer and castle nut in order,
screw the nut with 55-62NM torque, fix the cotter pin 2.5X25 through the
castle nut.
