TrailMaster Challenger 300UTV-X - Page 8

CHALLENGER300(E)X P. D. I
8
2. Assembly：

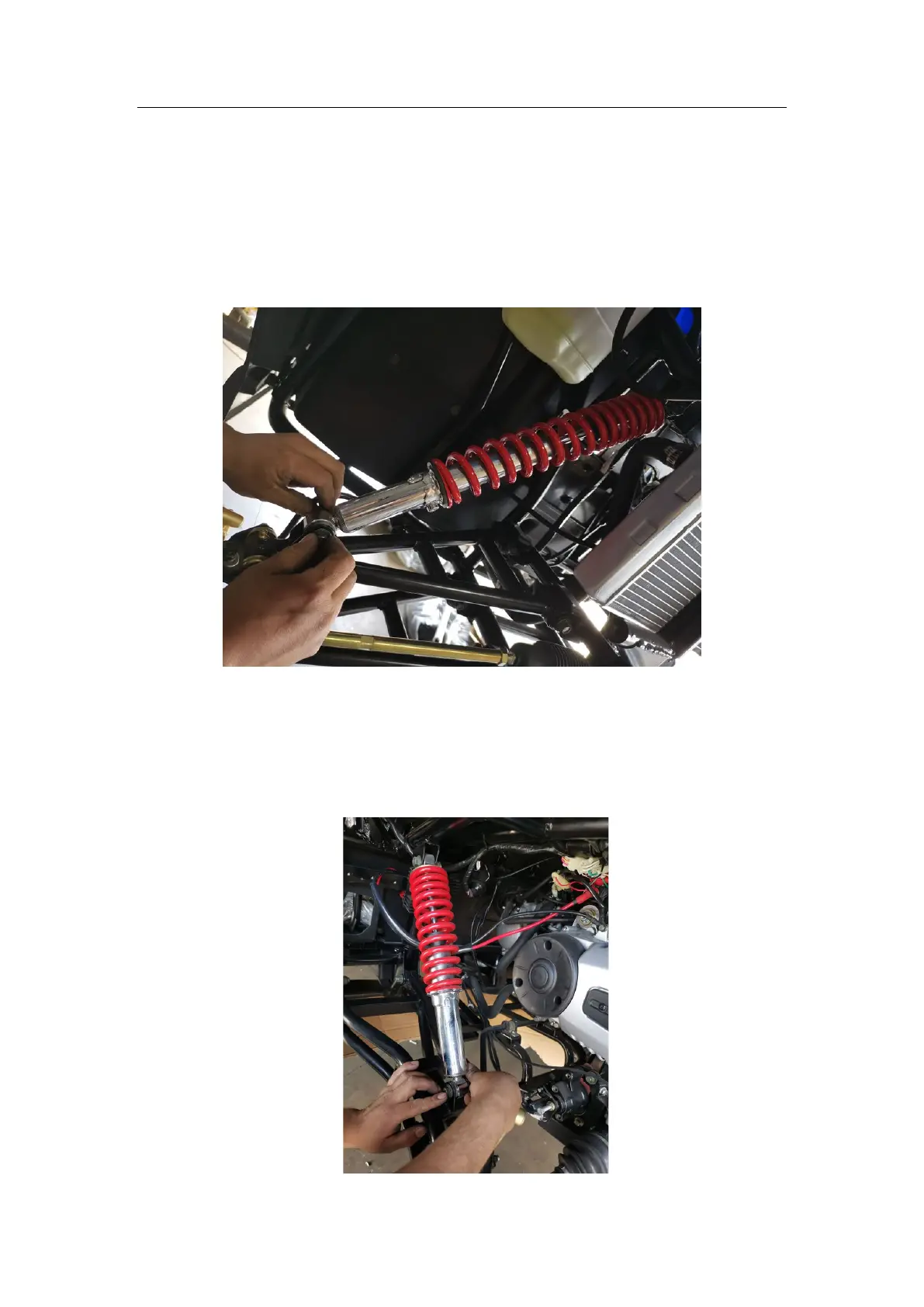

2.1 Assemble the front shocks: Assemble the front shocks to lower
suspension arm, use 37-44NM torque to fix the shocks attached the
frame. (Note: 1NM = 0.74 lb ft)
2
.2 Assemble the rear shocks: Assemble the rear shocks to rear swing
arm; use 37-44NM torque to fix the shocks attached the frame.
(Note: 1NM = 0.74 lb ft)
