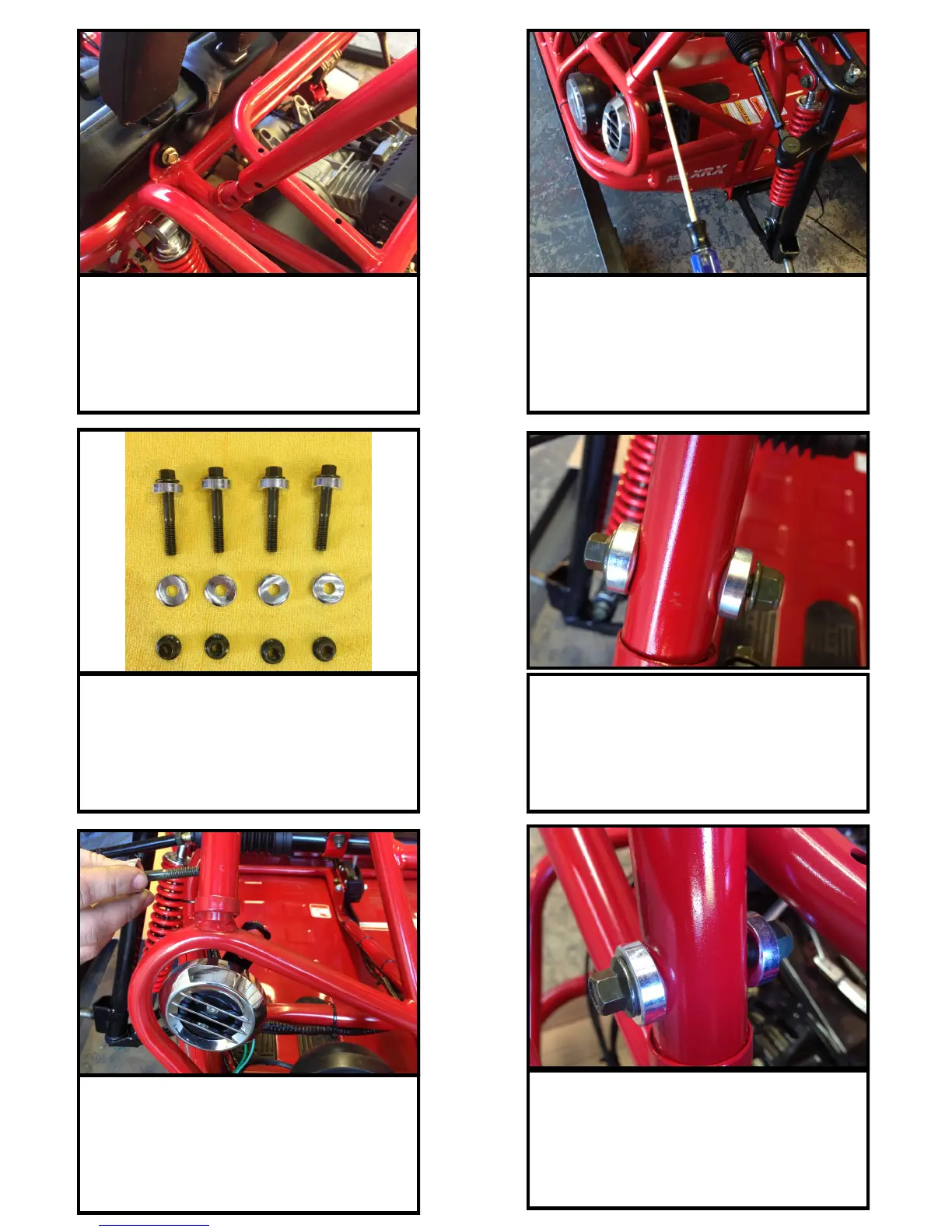

TrailMaster MINI XRX - Seat Bar and Side Frame Installation

15
Install with washer into front of bar
from the outside.
GOKARTMASTERS.COM
13
Place rear of bar onto pin at rear be-
hind seat.
14
Locate 2 long bolts, 4 nuts & 8
chrome cup washers.
GOKARTMASTERS.COM
GOKARTMASTERS.COM
16
It may be necessary to align the hole
in the bar with a screwdriver.
17
Install a second cup washer and the
nut.
NOTE: DO NOT TIGHTEN AT THIS TIME.
GOKARTMASTERS.COM
GOKARTMASTERS.COM
18
Install bolt, washers and nut at rear of
bar.
