NOTICE
Equipment Damage!
All vent-lines must be equipped with a drip leg of
sufcient volume to hold the expected accumulation
of water and or refrigerant. The drip leg must be
drained periodically to assure that it does not over-
ow and allow uid to ow into the horizontal por-
tion of the vent-line. Trane assumes no responsibility
for equipment damage caused by insufcient drain-
age of the drip leg.
8. Consult local regulations and codes for any addition-
al relief line requirements and refer to CFC-Guide-2.

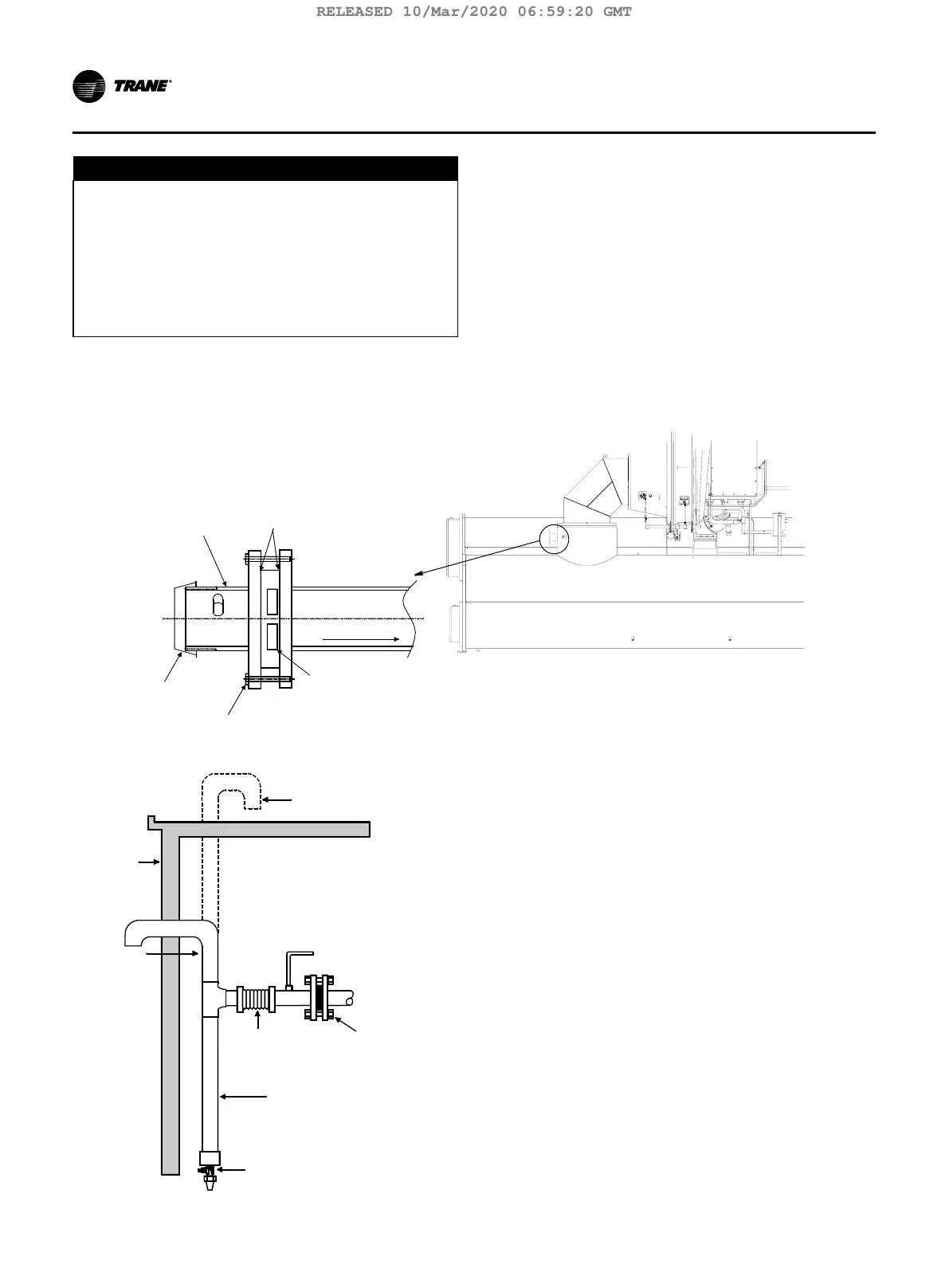

Figure 13. Illustrates rupture disc location, cross section of rupture disc
bolt
rupture disc
gasket
outside pipe
suction connection
cap
assembly
Note: Pipe connection is 3” NPT
Figure 14. Arrangement for rupture disc relief piping
alternate
purge discharge
vent line
outside
wall
support
this pipe
flexible
steel
connection
rupture disc
assembly
drip leg
(length as required
for easy access)
1/4” FL x 1/4” NPT
drain valve
Note: If a RuptureGuard™ is to be installed, refer to
CTV-SVX06B-EN, Installation, Operation, and
Maintenance - Rupture Guard Pressure Relief Sys-
tem Option, or the most recent version.
