The dimensions in these
drawings are rounded according
to standard measurement.

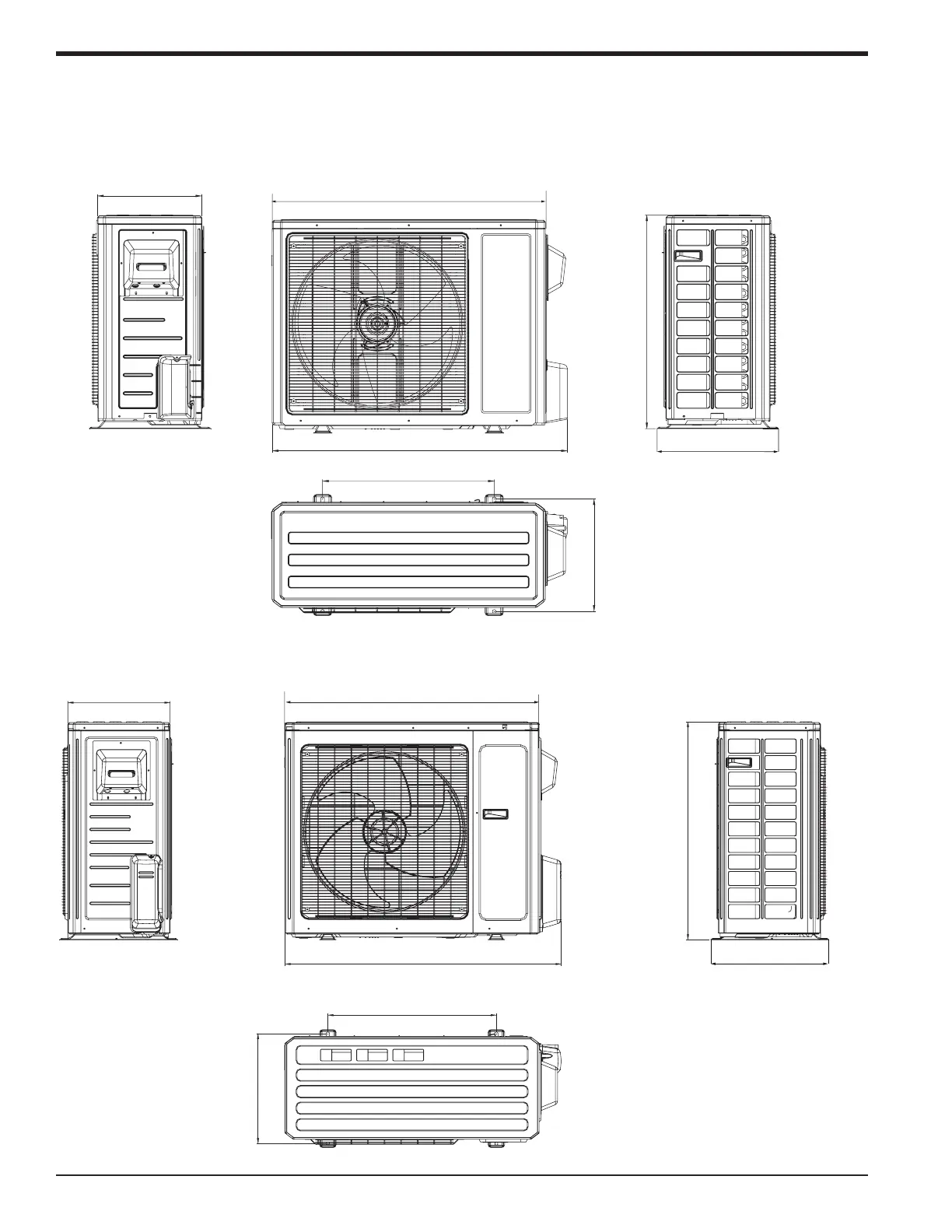

18K Outdoor Unit
24K Outdoor Unit
Outdoor Unit Dimensions
Unit: inch (mm)
35 (889)
13 7/16 (341.3)
27 5/8 (701.7)
15 5/8 (396.9)
37 5/8 (955.7)
14 5/16 (363.5)
22 (558.8)
Unit: inch (mm)
14 9/16 (369.9)
31 1/8 (790.6)
16 13/16 (427)
15 9/16 (420.7)
38 5/8 (981.1)
24 (609.6)
36 1/4 (920.7)
38 88-M4MHW18-1C-EN
Installer's Guide
