Trane 4MXW2336A1 - Page 39

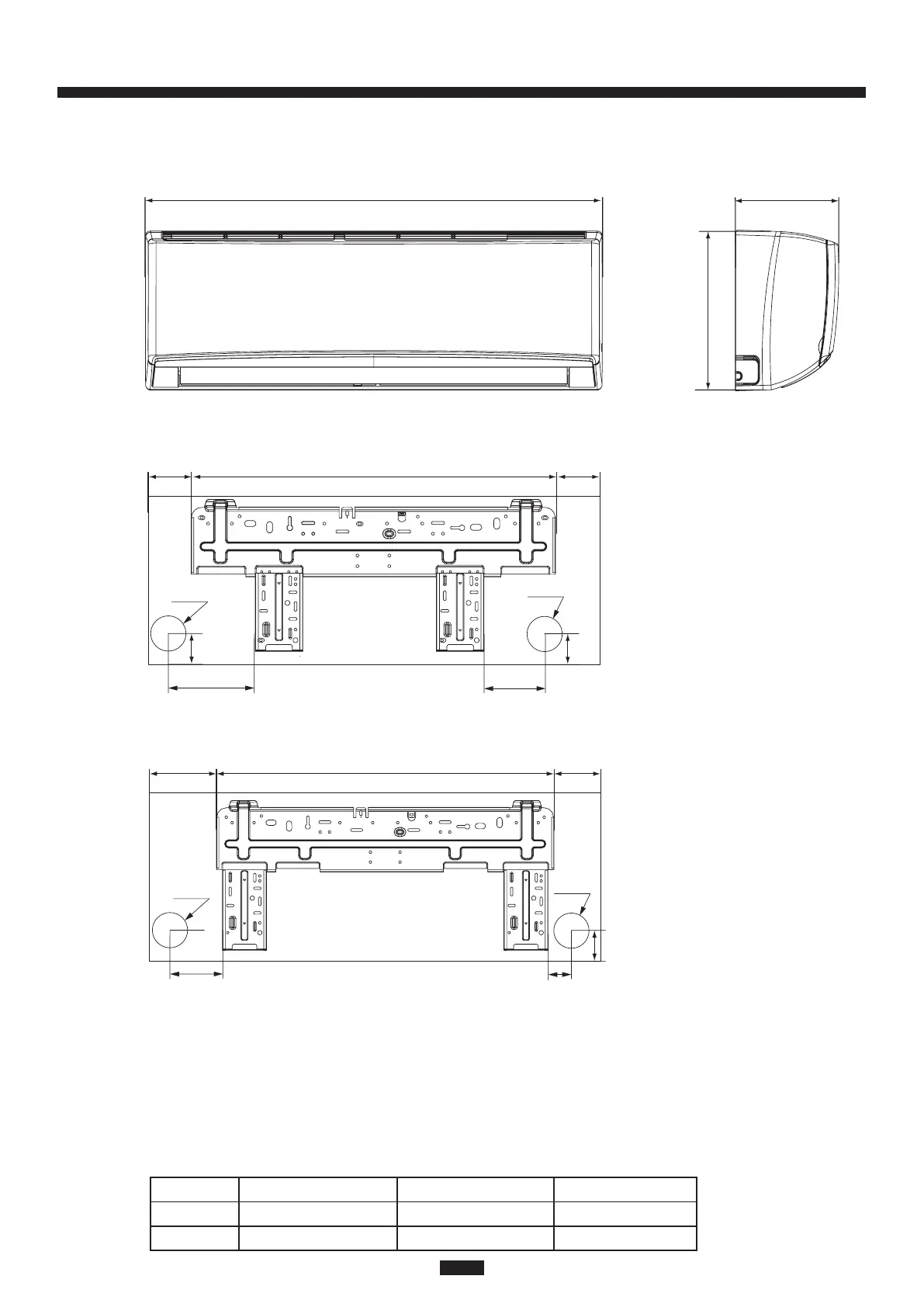

Indoor Unit Dimensions
18K-24K
The dimensions in these drawings
are rounded according to standard
measurement.
W
D
H
4 (101.6) 7 3/16 (182.6)
5 1/2 (139.7)
7 1/2 (190.5)
1 1/2 (38.1) 1 1/2 (38.1)
Φ2 3/16 (55.6)
Φ2 3/16 (55.6)
3 1/8 (79.4)
6 (152.4)
1 11/16 (296.9)
8 1/8 (206.3) 27 (685.8) 7 5/16 (185.7)
Φ2 3/4 (69.8)
Φ2 3/4 (69.8)
Unit: inch (mm)
18K
24K
Models W H D
18K 38 3/16 (970) 11 13/16 (300) 8 13/16 (224)
24K 42 7/16 (1078) 12 13/16 (325) 9 11/16 (246)
27 (685.8)
39
23 Series Single Zone
