Trane 4MXW2336A1 - Unit Dimensions

The dimensions in these drawings
are rounded according to standard
measurement.

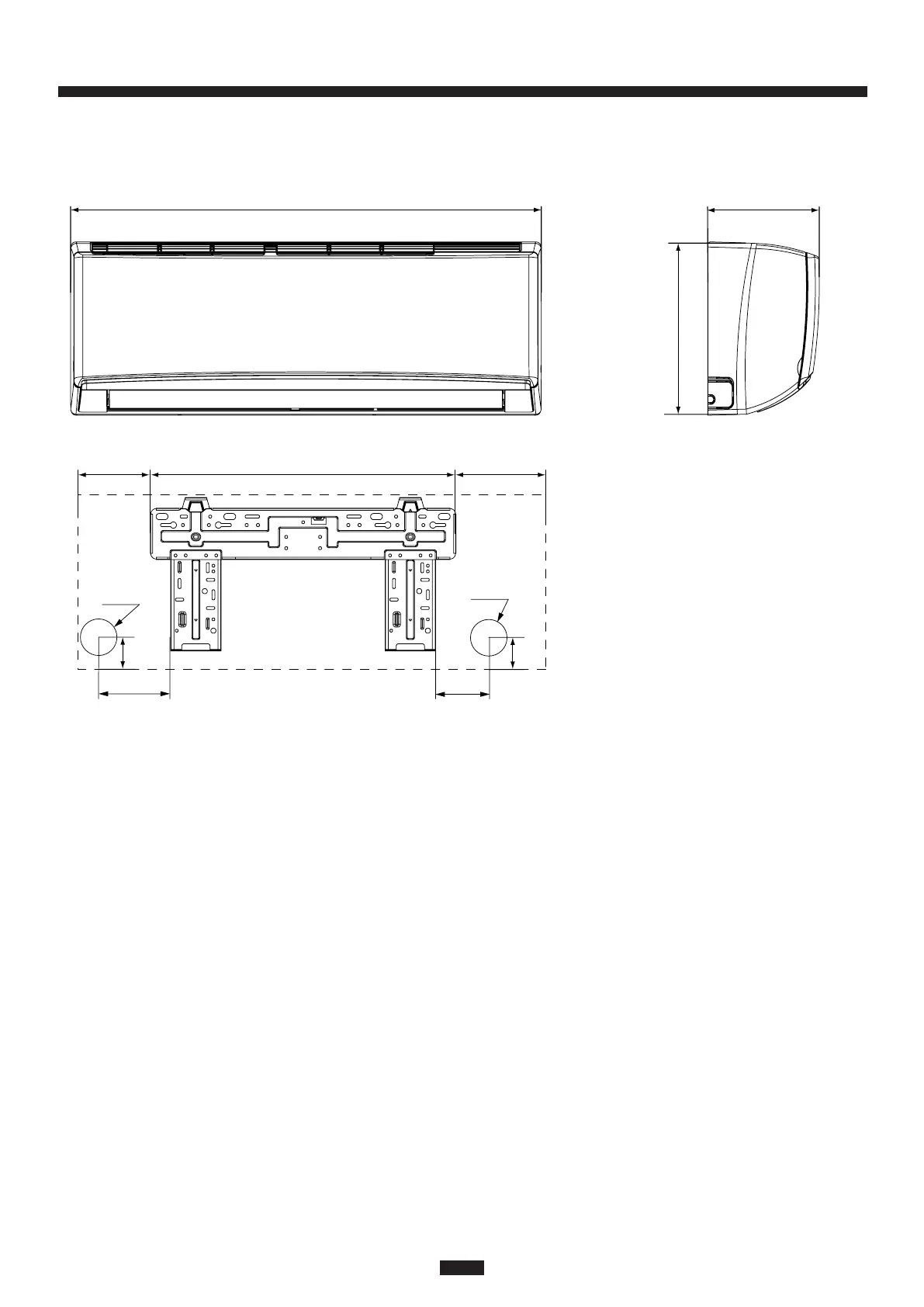

Indoor Unit Dimensions
Unit: inch (mm)
33 1/4 (844.5)
8 1/4 (209.5)
11 3/8 (289.6)
4 11/16 (119.1)
7 1/4 (184.1)
21 5/16 (541.3)
Φ2 3/16 (55.6)
Φ2 3/16 (55.6)
1 3/8 (35.6)
1 3/8 (35.6)
5 (127)
3 5/16 (84.1)
9K-12K
38
23 Series Single Zone
