The dimensions in these drawings
are rounded according to standard
measurement.

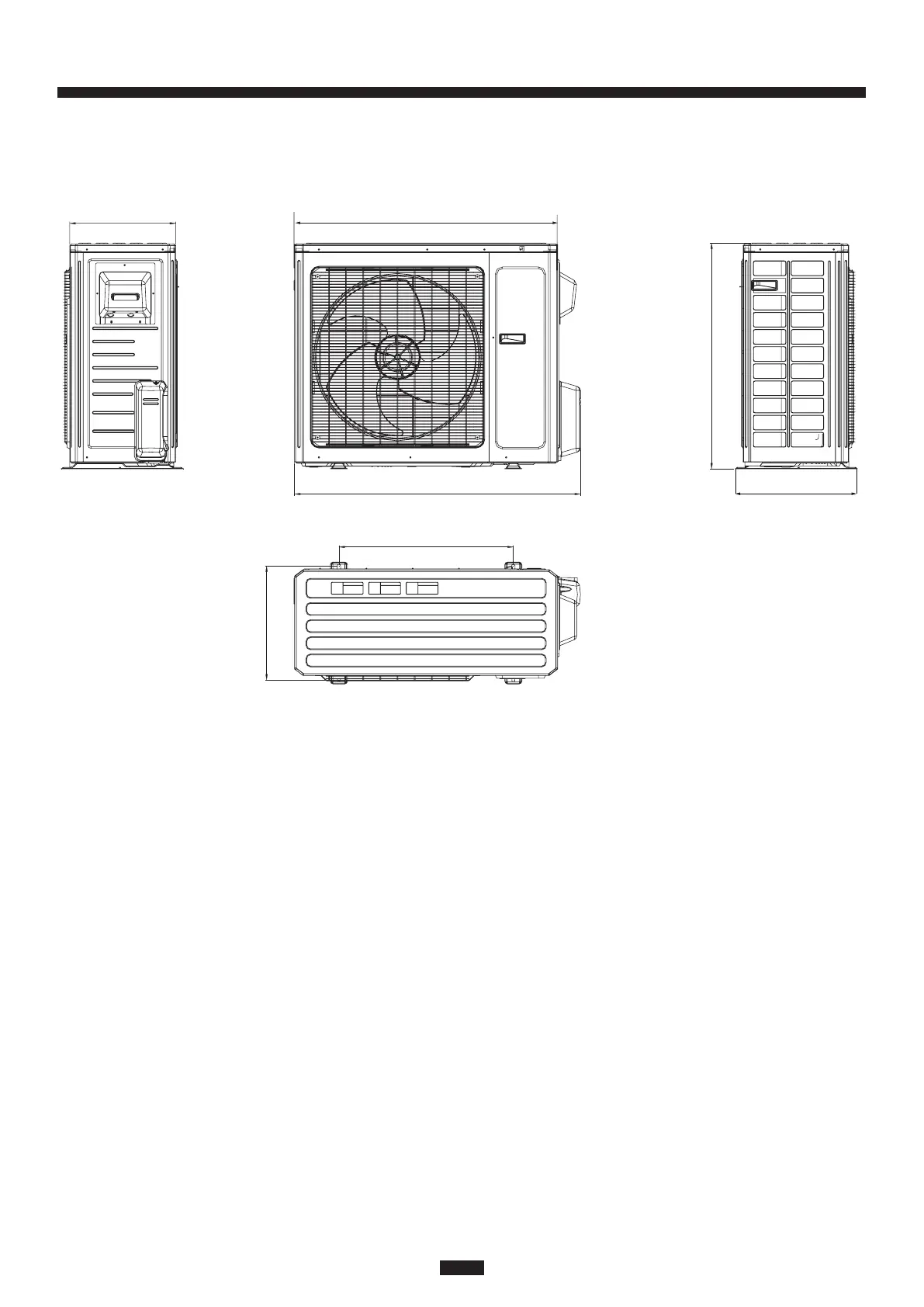

30K-36K Outdoor Unit
Outdoor Unit Dimensions
Unit: inch (mm)
14 9/16 (369.9)
31 1/8 (790.6)
16 13/16 (427)
15 9/16 (395.3)
38 5/8 (981.1)
24 (609.6)
36 1/4 (920.8)
43
23 Series Single Zone
