Trane 4TEE3C09A1000A - Page 19

18-GE14D1-5 19
Installer’s Guide
H
W
21.0"

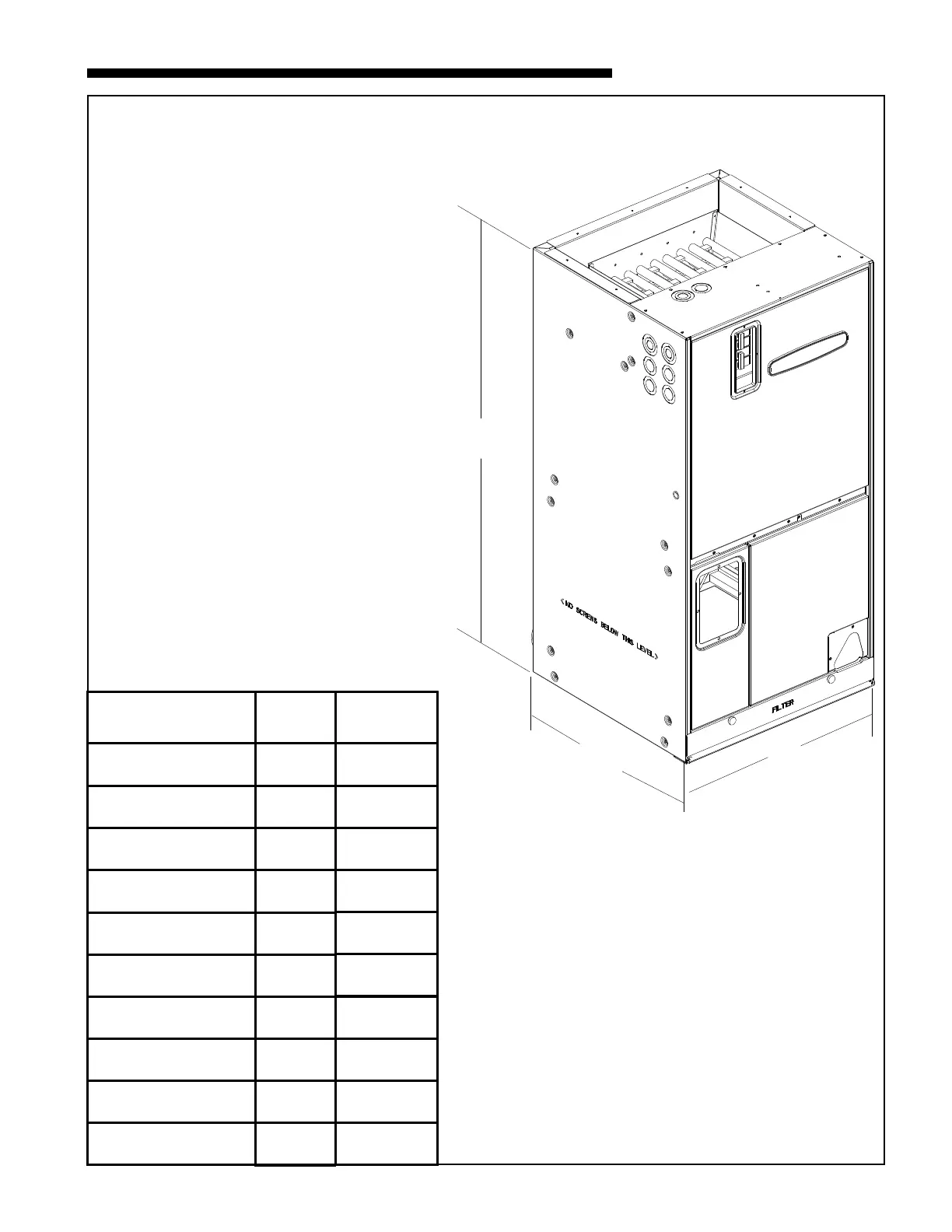

4TEE3C01-10A AIR HANDLERS DIMENSIONAL DATA
Model No. H W
4TEE3C01A1000A 43.00 21.50
4TEE3C02A1000A 45.00 23.50
4TEE3C03A1000A 57.90 23.50
4TEE3C04A1000A 57.90 23.50
4TEE3C05A1000A 51.75 26.00
4TEE3C06A1000A 57.90 23.50
4TEE3C07A1000A 57.90 26.00
4TEE3C08A1000A 57.90 23.50
4TEE3C09A1000A 62.75 26.00
4TEE3C10A1000A 62.75 26.00
4TEE3C03, 04, 06, 08, 09 & 10A
are two piece cabinets
