Trane 4TXM2318BF300AA - Indoor Unit Dip Switch Settings

99
4MXD2309BF0R0AA 4MXD2312BF0R0AA 4MXD2318BF0R0AA 4MXD2324BF0R0AA

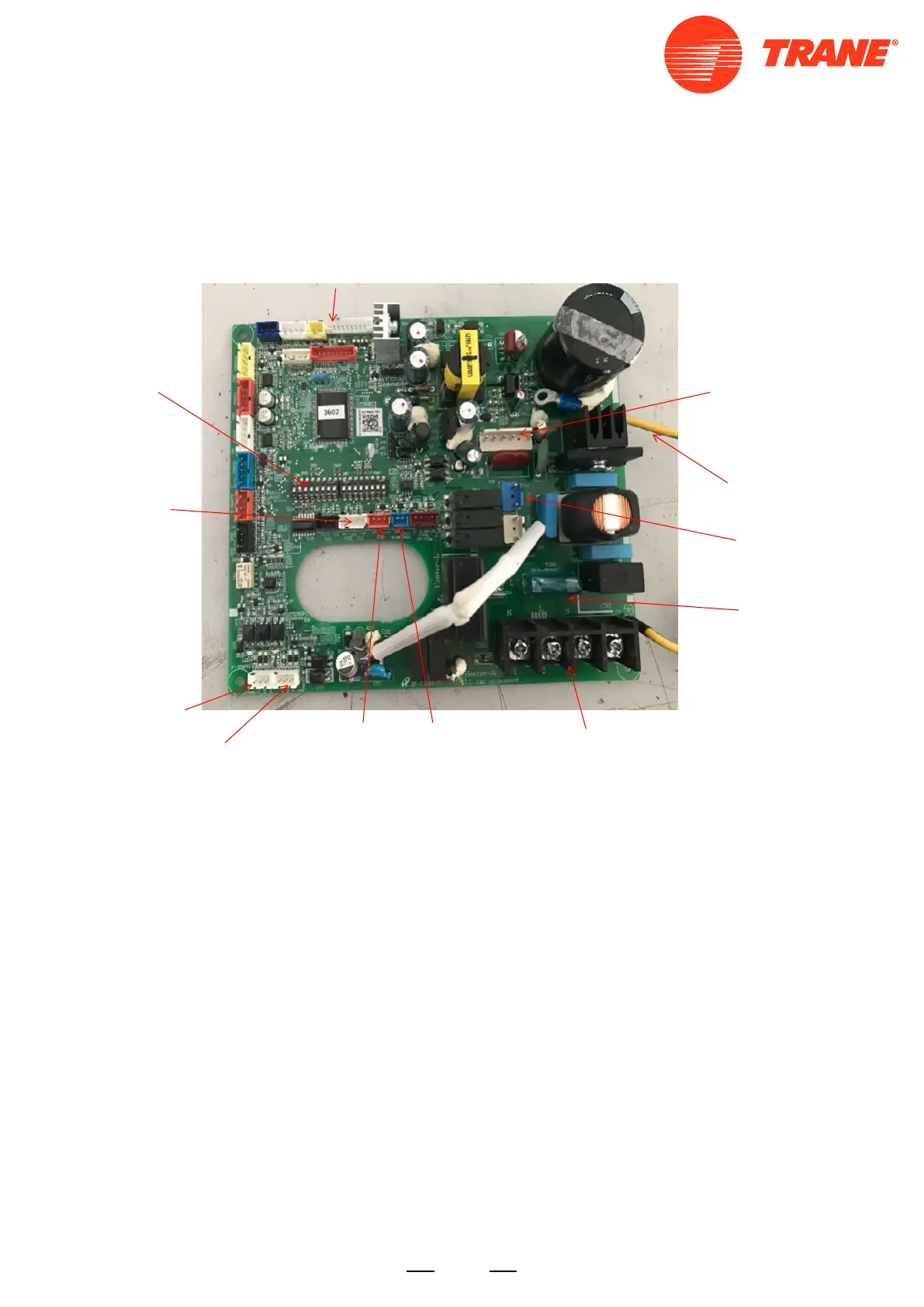

PCB(0151800644 (Manufactured after Nov. 2020)
CN41
Indoor ambient temp. sensor
Indoor coil temp. sensor
0-5VDC
SW01-SW03
Central control
address and dip
switch setting
CN13 Float switch
0-5VDC
CN16 Room card
0-5VDC
Termina
1(N)2(L)3(S)4(GND)
CH1 Ground wire
CN6 DC fan motor
DC310V
CN21 Infrared receiver
CN22-1
AC wired controller
0-12VAC
FUSE1 5A-250V AC
CN4 Water pump 220VAC
CN22
AC wired controller
0-12VAC
