77

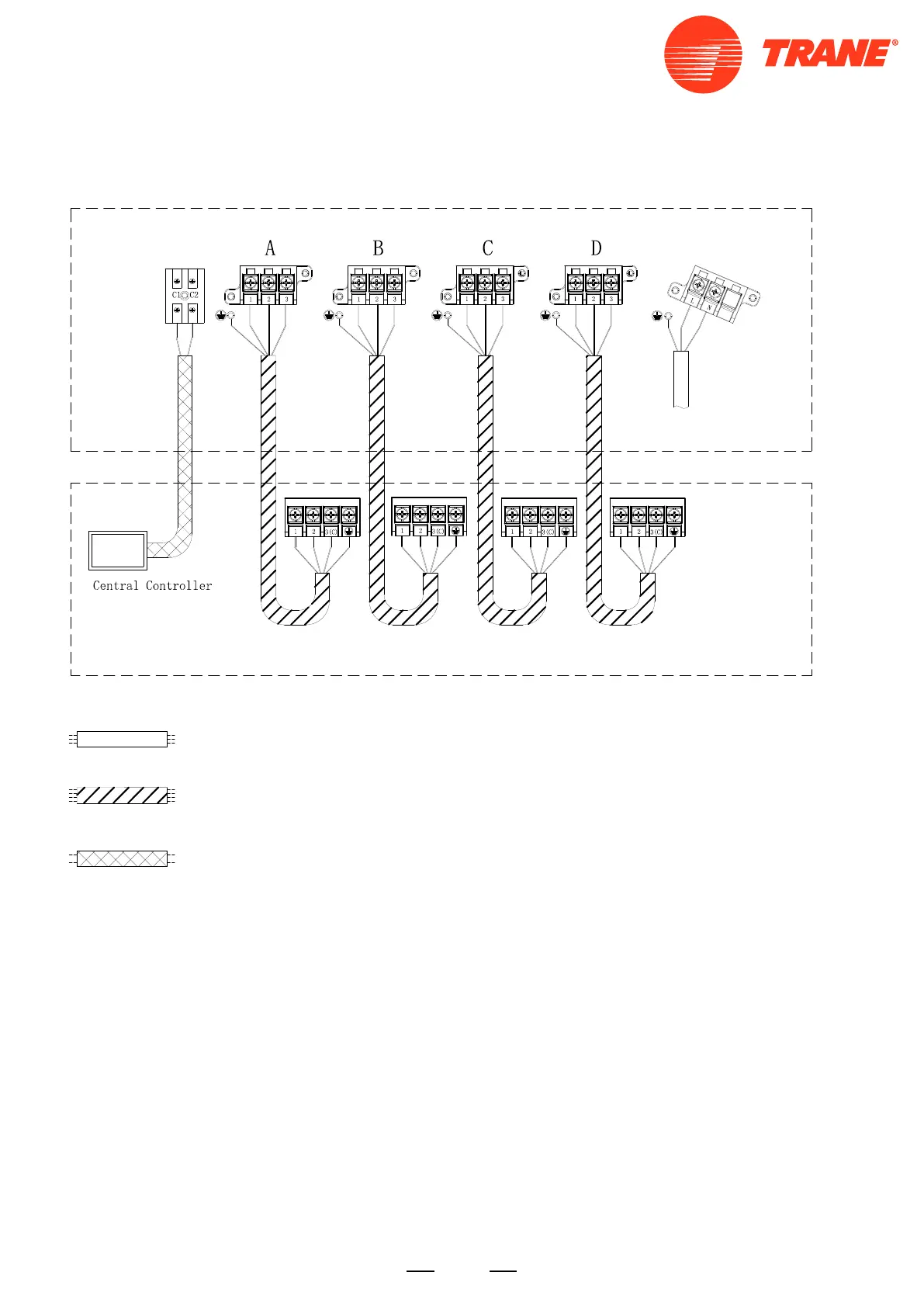

Connect the connecting wires between indoor and outdoor units and ensure the sequence numbers on terminals
match with each other.
Teminal block
Power Supply
1PH,220~240V
~
,50/60Hz
Central Controller
Indoor Unit A
Indoor Unit B
Indoor Unit C
Power Supply Cable: H05RN-F3G 4.0mm
2
Connecting Cable: H05RN-F4G 2.0mm
2
Connecting Cable: H05RN-F2G 2.0mm
2
4TXM2330BF400AA
Teminal block
Indoor Unit A
Indoor Unit B
Indoor Unit C
Indoor Unit D
Power Supply Cable: H05RN-F3G 4.0mm
2
Connecting Cable: H05RN-F4G 2.0mm
2
Connecting Cable: H05RN-F2G 2.0mm
2
Power Supply
1PH,220~240V
~
,50/60Hz
