Trane A4AC6018A1000A User Manual

32 88-A4AC6001-1F-EN

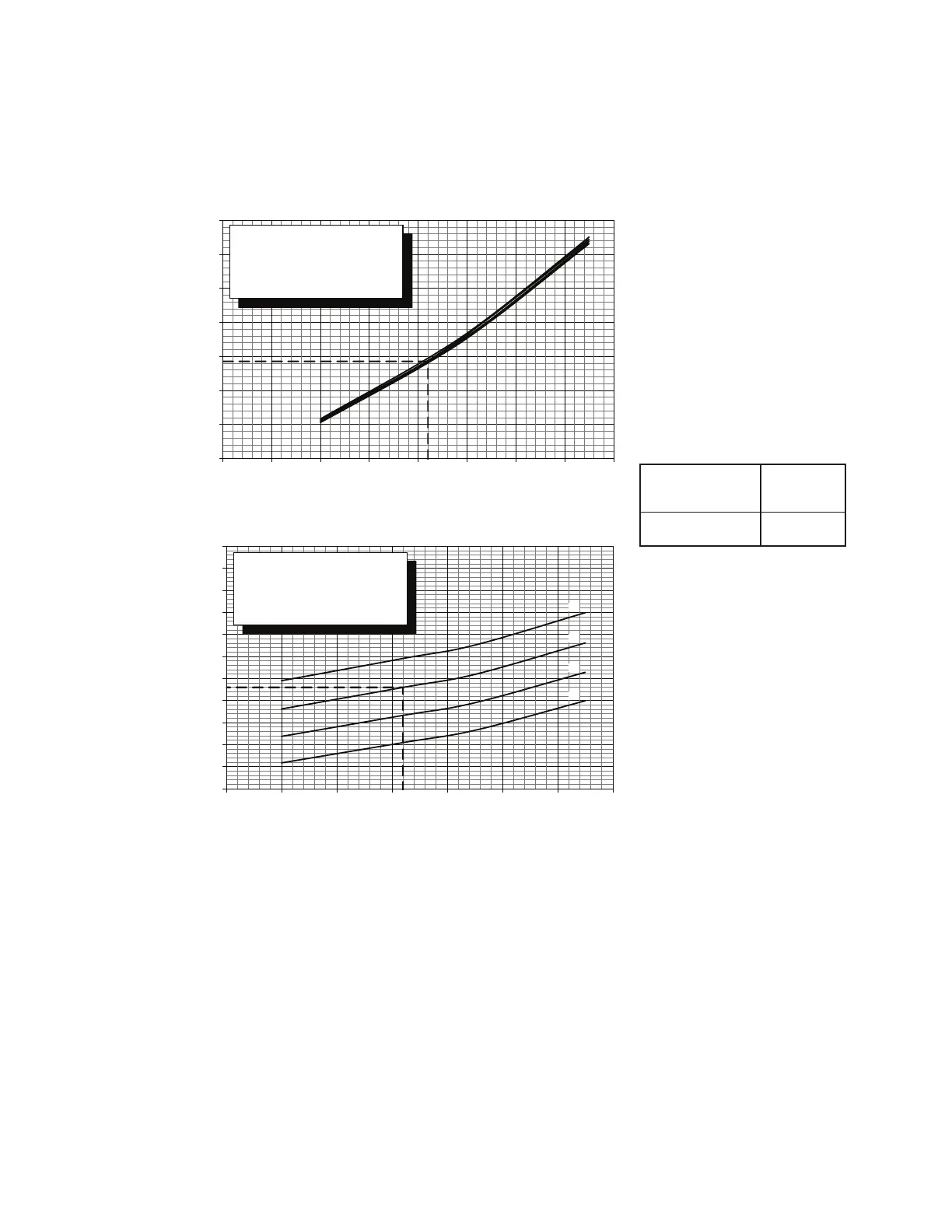

PRESSURE CURVES (Refer below table for models)
OUTDOOR TEMPERATURE (Degree F)
OUTDOOR TEMPERATURE (Degree F)
COOLING PERFORMANCE CAN BE CHECKED WHEN THE OUTDOOR TEMP IS ABOVE 65 DEG F.
TO CHECK COOLING PERFORMANCE, SELECT THE PROPER INDOOR CFM, ALLOW PRESSURES TO STABILIZE. MEASURE INDOOR WET BULB
TEMPERATURE, OUTDOOR TEMPERATURE, LIQUID AND SUCTION PRESSURES. ON THE PLOTS LOCATE OUTDOOR TEMPERATURE (1);
LOCATE INDOOR WET BULB (2); FIND INTERSECTION OF OD TEMP. & ID W.B. (3); READ LIQUID (4) OR SUCTION (5) PRESSURE IN LEFT COLUMN .
EXAMPLE: (1) OUTDOOR TEMP. 82 F.
(2) INDOOR WET BULB 67 F.
(3) AT INTERSECTION ACTUAL:
(4) LIQUID PRESSURE @ 600 CFM IS 313 PSIG LIQUID PRESSURE SHOULD BE +/- 10 PSI OF CHART
(5) SUCTION PRESSURE @ 600 CFM IS 148 PSIG SUCTION PRESSURE SHOULD BE +/- 3 PSIG OF CHART
125
130
135
140
145
150
155
160
165
170
175
180
50 60 70 80 90 100110 120
(1)
170
220
270
320
370
420
470
520
40 50 60 70 80 90 100110 120
(1)
(3)
(3)
(5)
(4)
(2)
(2)
INDOOR ENTERING
WET BULB CURVES
TOP TO BOTTOM
71, 67, 63 AND 59 DEG F.
INDOOR ENTERING
WET BULB CURVES
TOP TO BOTTOM
71, 67, 63 AND 59 DEG F.
Cooling
@SCFM
A4AC6018A1
OD Model
600
71
67
63
59
LIQUID PRESSURE (PSIG)SUCTION PRESSURE (PSIG)

Trane A4AC6018A1000A Specifications

General

Model	A4AC6018A1000A
Type	Air Conditioner
Stages	Single-stage
Refrigerant	R-410A
Voltage	208/230V
Phase	1
Frequency	60 Hz
SEER Rating	16
Compressor Type	Scroll
Maximum Overcurrent Protection	20 Amps
Cooling Capacity	18000 BTU/H
