24
18-GF16D1-1A-EN
Table 12. Horizontal Right (continued)
Important: For Horizontal Right applications, ON SOME MODELS the
top panel assembly of the coil must be rotated for proper
condensate management.

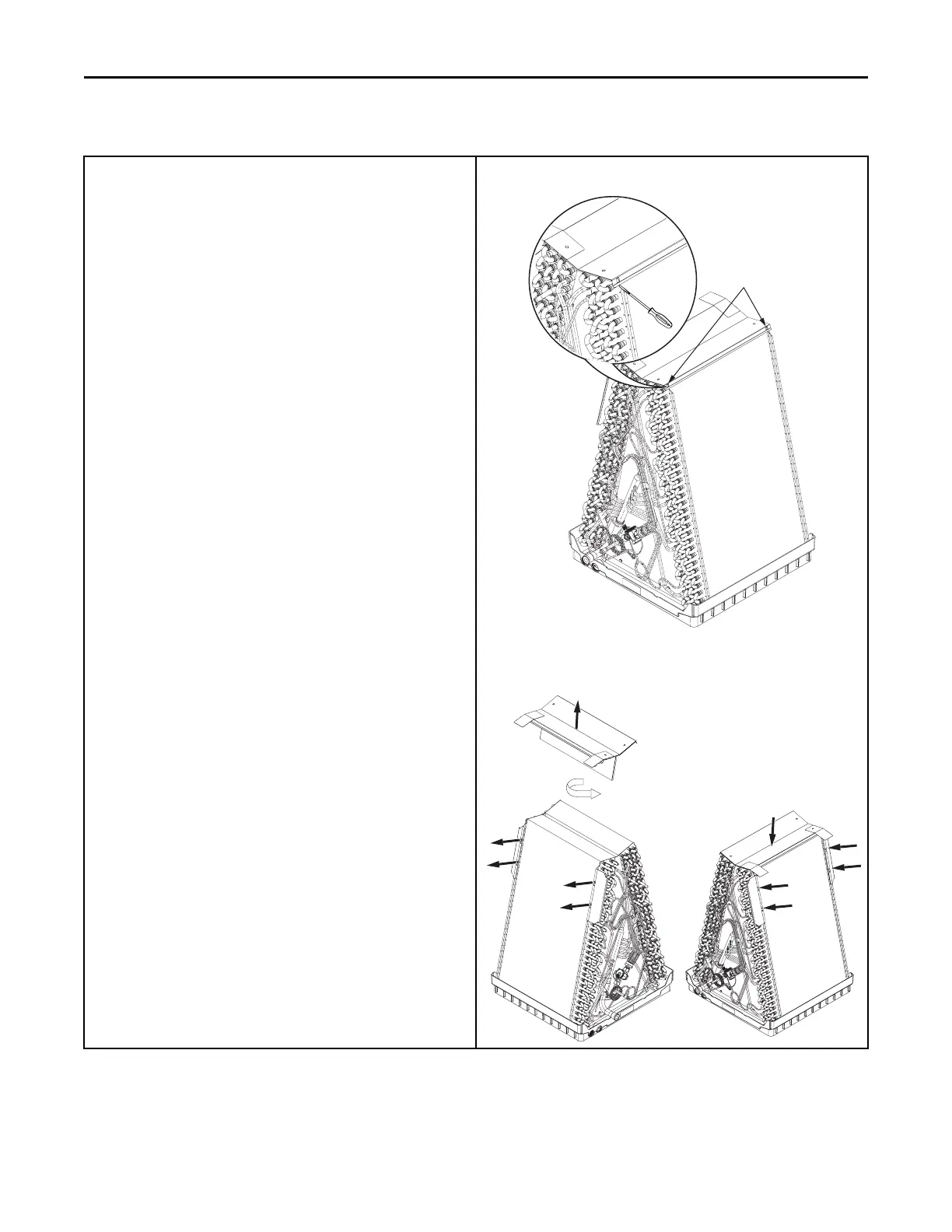

6. On the right side of the top baffle, position a flathead tip
underneath the top baffle flange and pivot the screwdriver
downward to release the front tab as shown below.
7. Repeat for right rear tab to release top baffle assembly from coil.
8. Rotate 180 degrees and snap all four corner tabs to lock in place.
9. Remove left side water diverter brackets and screws and reinstall
on the right side.
Important: The coil slabs are different and the mount hole locations
will vary. See the illustrations on the following pages that
correspond to the unit tonnage to see the correct
mounting position of the water diverter bracket.
Important: The water diverter brackets are not symmetrical and will
vary by tonnage.
Figure 12. All models
Figure 13. All models
CCooiill CCoonnvveerrssiioonn IInnssttrruuccttiioonnss
