Installer’s Guide
From Dwg. 21C341700 Sh. 1 Rev. 0

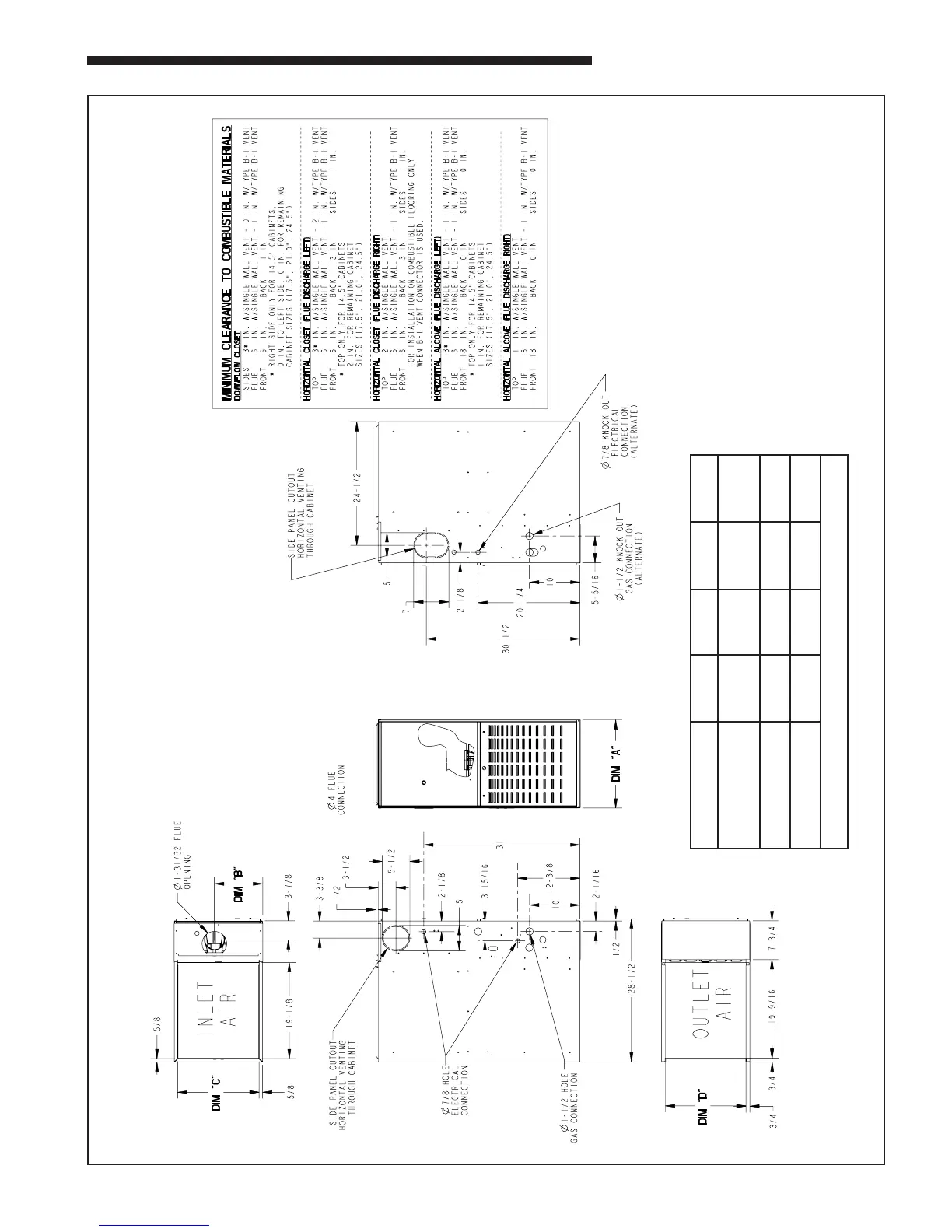

*DD2-9V OUTLINE DRAWING
(ALL DIMENSIONS ARE IN INCHES)
MODEL DIM "A" DIM "B" DIM "C" DIM "D"
*DD2B060A9V3VA
*DD2B080A9V3VA
17-1/2" 9-5/8" 16-1/4" 16"
*DD2C100A9V5VA 21" 13-1/16" 19-3/4" 19-1/2"
*DD2D120A9V5VA 24-1/2" 15-5/16" 23-1/4" 23"
* - The First Letter May Be "A" or "T"
