Section 5. Adjust Heater
The heater comes from the factory sized for cabinet
size 1. No modifications to the Width Adjustment
Brackets are required.
Cabinet size 1 (17.5")
Prepare the heater for cabinet size 2 by modifying
the Width Adjustment Brackets to align with the holes
labeled 2.
Cabinet size 2 (21.3")
Prepare the heater for cabinet size 3 by modifying
the Width Adjustment Brackets to align with the holes
labeled 3.
Cabinet size 3 (23.5")
STEP 1 - Position Width Adjustment Brackets.
STEP 2 - Adjust Filler Plates.
Filler Plate Screws
-three per side
Retainer Tab
& Screw
Filler Plate
1. Loosen the Filler Plate screws on each side of Base
Plate (four total).
2. Slide in the correct Filler Plate on each side. Filler
Plates are marked for the cabinet size they match
with, for example, the Filler Plate for cabinet 2 is
marked "2-CAB".
3. Tighten the Filler Plate screws loosened previously
and add a screw (provided) to the bottom of each
plate to hold Filler Plates in place.

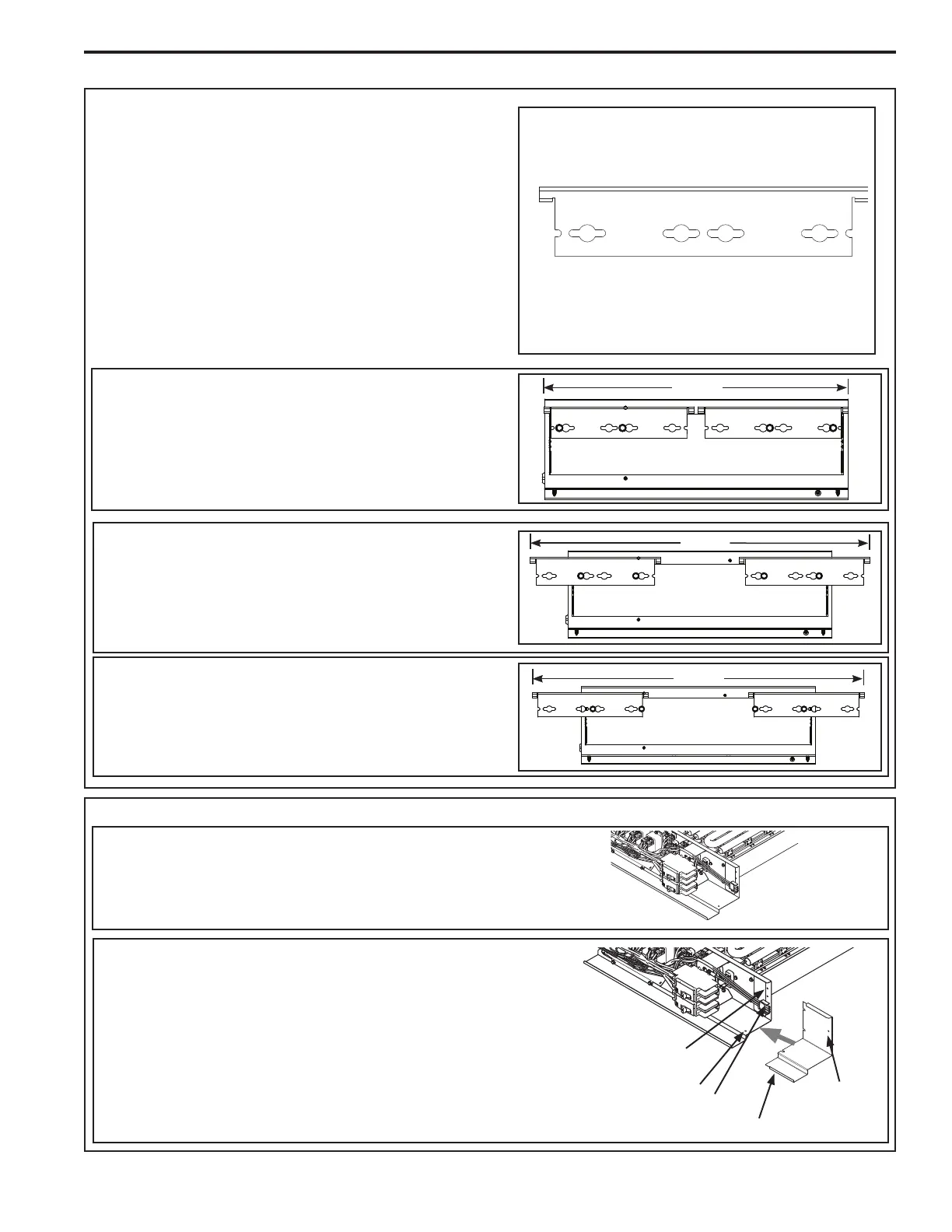

Two Width Adjustment Brackets are located at the
back of the heater assembly. The heater comes
sized for the smallest cabinet it will fit in. For this
example our heater fits cabinets 1 (17.5"), 2 (21.3")
and 3 (23.5"). It came sized for a size 1 cabinet and
we are sizing it for a size 2 cabinet.
1. Loosen the screws that hold the Width Adjustment
Brackets to the back of the heater.
2. Reposition each Width Adjustment Bracket until the
correct holes line up with the loosened screws as
illustrated in this step.
3. Tighten screws to hold Width Adjustment Bracket
securely in place.
3
12
33
1
3
1
22
1
2
3
3
3
3
3
3
1
3
1
2
3
1
2
2
1
2
1
2
1
2
1
2
1
2
3
1
2
3
1
3
1
2
2
3
1
2
3
1
2
3
1
3
1
2
2
3
1
2
3
1
2
3
1
3
1
2
2
3
1
2
3
1
2
3
1
3
1
2
2
3
1
2
14.5
18.5
20.5
Width Adjustment Brackets
(two per unit)
Cabinet 2 (21.3") or 3 (23.5")
Cabinet 1 (17.5")
NOTE: No Filler Plates are required for this cabinet.
