INSTALLER'S GUIDE
STEP 2 - Disconnect & Dispose of Pigtail Harness.
1. Unscrew the wire tie that is holding the pigtail harness to
the cabinet.
2. Unplug and dispose of pigtail harness.
STEP 3 - Insert heater assembly into heater
compartment.
1. Move factory wiring out of the way and into the grooves
provided in cabinet.
2. Slide heater into heater compartment of air handler.

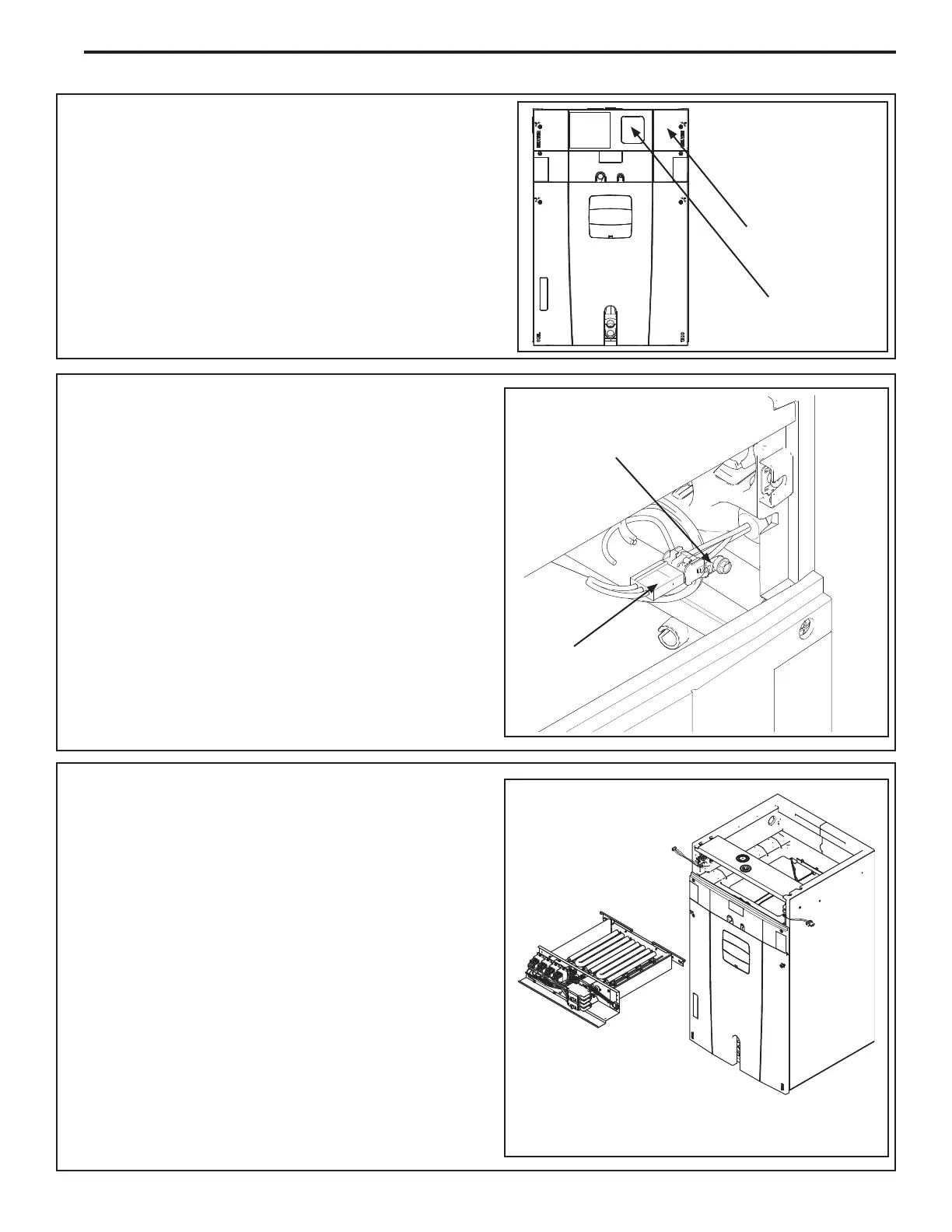

Section 6. Install Heater
STEP 1 - Remove Heater Compartment Panel.
Heater
Compartment
Panel
Breaker
Cover
Pigtail
Harness
Wire Tie
Screw
