Service Facts
Section 3. Tables
Important: The BAYEV* electric heat accessory may include up to a combination of three 30 and/or 60 amp circuit break-
ers to provide an electrical disconnect for service personnel that is intended to help protect internal electrical components
in the event of a short circuit or ground fault. As designed, the circuit breakers supplied in the BAYEV* accessory DO NOT
provide overcurrent protection of the branch circuit. Therefore, the branch circuit(s) shall be sized and protected according
to the unit nameplate.
MODEL NO.
BAYEVAC05BK1A
A
BAYEVAC05LG1A
A
BAYEVAC08BK1A
A
BAYEVAC08LG1A
A
BAYEVAC10BK1A
A
BAYEVAC10LG1A
A
BAYEVAC10LG3AA
BAYEVBC15BK1A
A
BAYEVCB15LG3A
A
BAYEVBC20BK1AA BAYEVCC25BK1AA
*AM7A0A24H21SAA 480/560 480/800 560/800 560/800 -- -- --
*AM7A0B30H21SAA 600/600 600/700 800/900 600/700 800/900 -- --
*AM7A0C36H31SAA 720/720 840/1080 840/1200 720/840 840/1080 -- --
*AM7A0C42H31SAA 840/1000 1000/1200 1000/1250 840/1000 1000/1250 -- --
*AM7A0C48H41SAA 1000/1000 1000/1200 1200/1400 1200/1200 1200/1600 1400/1600 1400/1600
*AM7A0C60H51SAA 1000/1000 1000/1000 1200/1400 1200/1200 1200/1600 1400/1600 1200/1800
MINIMUM HEATER AIRFLOW CFM - HEATER MATRI
X
COOLING / HP AIRFLOW
SEE AIR HANDLER NAMEPLATE OR PRODUCT DATA

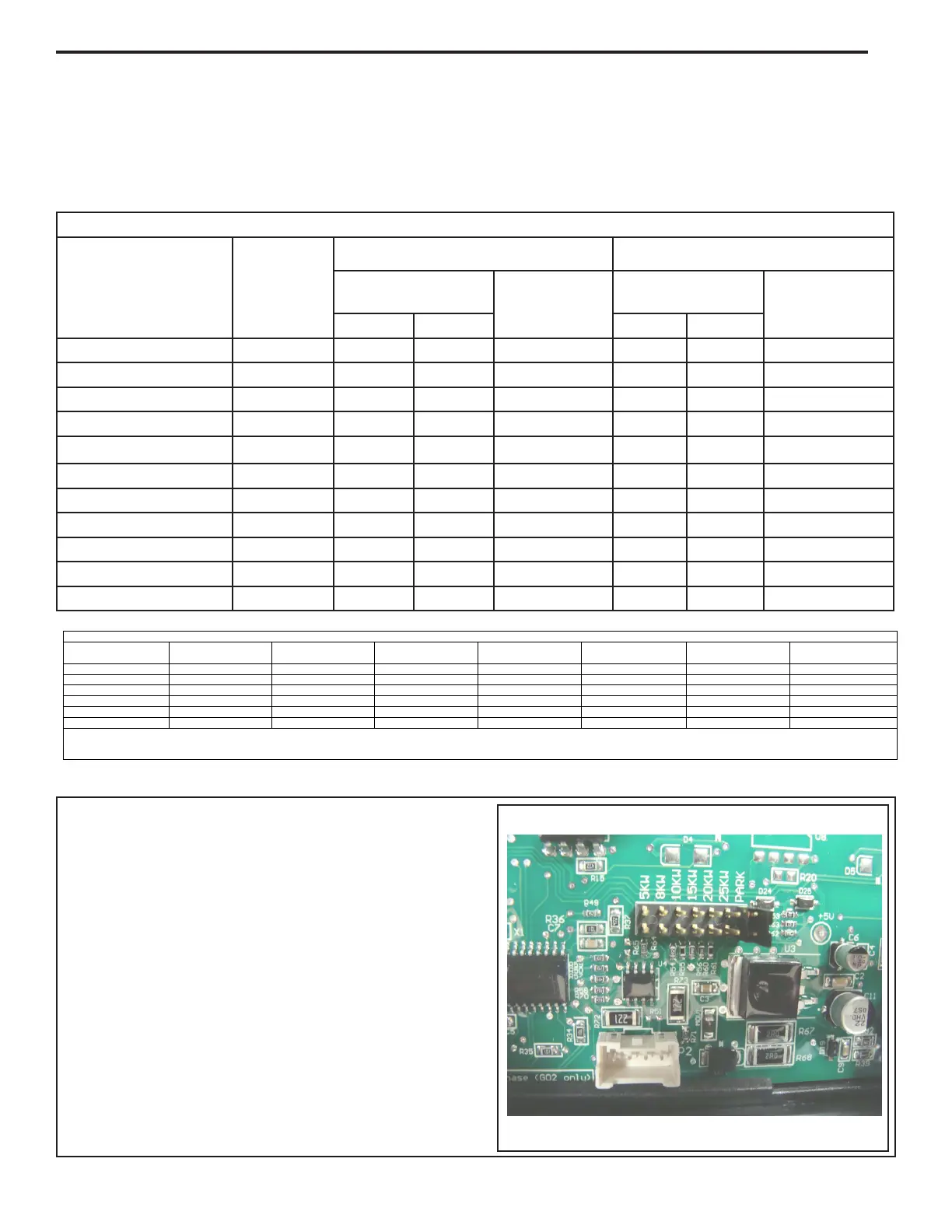

Control Board Jumper Settings
When the heater comes from the factory, the jumper will be
in the PARK position. The board is already configured for the
heater size that is required, so no adjustments are necessary.
NOTE: If the jumper is moved to another kW rating and
power is applied, the factory programming on the PARK
position is lost. The jumper must then be applied to the
appropriate rating per the heater model number.
Table 3.1 BAYEV -- HEATER DATA
Heater Model No.
Number of
Circuits
240 VOLT 208 VOLT
Capacity
Heater Amps
per Circuit
Capacity
Heater Amps
per Circuit
kW BTUH kW BTUH
BAYEVAC05BK1AA 1 4.80 16400 20 3.60 12300 17.3
BAYEVAC05LG1AA 1 4.80 16400 20 3.60 12300 17.3
BAYEVAC08BK1AA 1 7.68 26200 32 5.76 19700 27.7
BAYEVAC08LG1AA 1 7.68 26200 32 5.76 19700 27.7
BAYEVAC10BK1AA 1 9.60 32800 40 7.20 24600 34.6
BAYEVAC10LG1AA 1 9.60 32800 40 7.20 24600 34.6
BAYEVBC15BK1AA 2 14.40 49200 40/20 10.80 36900 34.6/17.3
BAYEVBC20BK1AA 2 19.20 65600 40/40 14.40 49200 34.6/34.6
BAYEVAC10LG3AA 1 9.60 32800 23.1 7.20 24600 20.0
BAYEVBC15LG3AA 1 14.40 49200 34.6 10.80 36900 30.0
BAYEVCC25BK1AA 3 24.00 82000 40/40/20 18.00 61500 34.6/34.6/17.3
