INSTALLER'S GUIDE
18-HB22D1-14

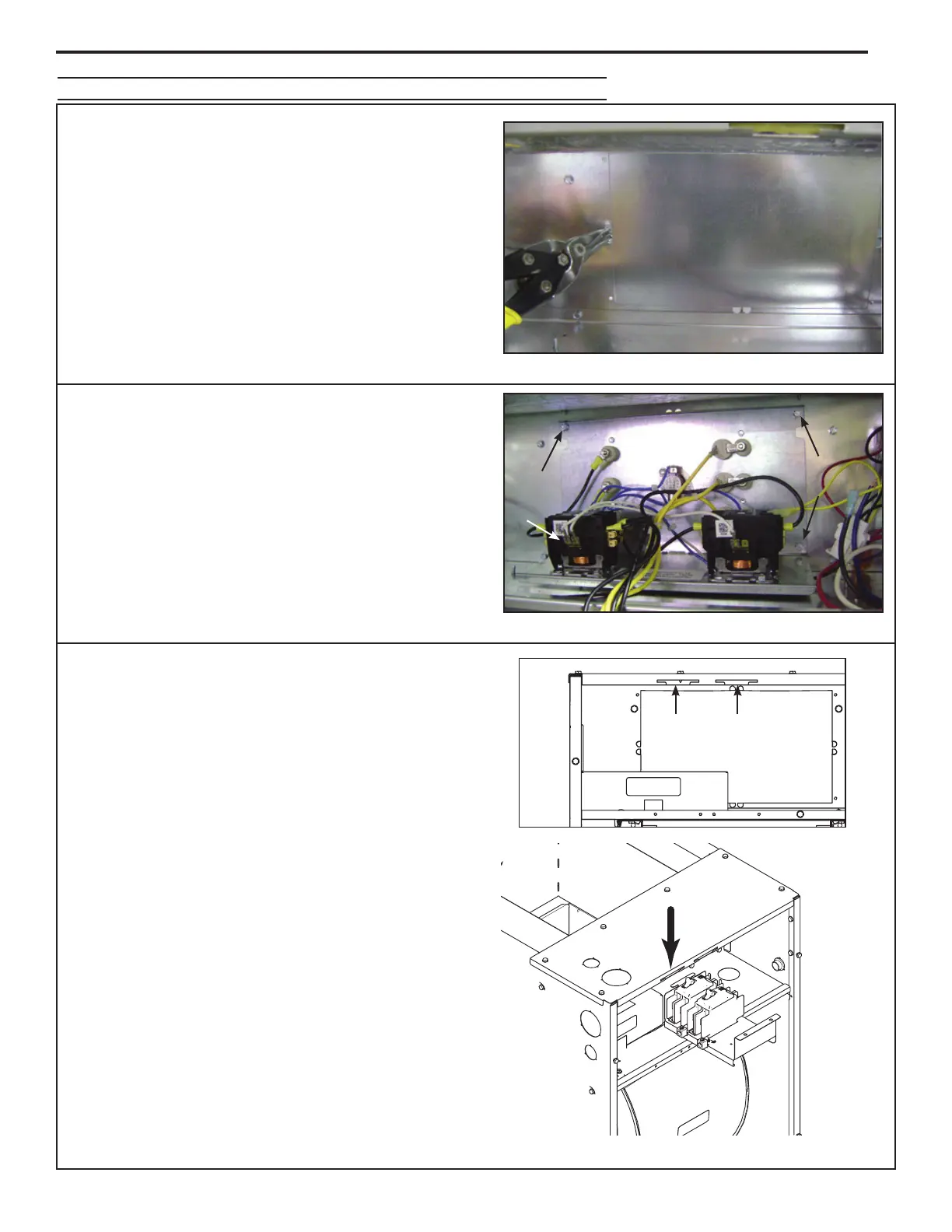

Figure 2
Figure 1
Figure 3 -
Left side breaker mount location shown
NOTE: Illustrations may vary from the actual unit by cabinet and heater size.
5. Slide heater into opening.
6. Secure heater to control box opening with four
screws located at the corners of the mount plate.
See Figure 2 for screw locations. (One not visible in
photo)
INSTALLATION
1. Remove Blower Access panel.
2. Locate heater knock-out plate at rear of control box.
3. With tin snips, cut the four tabs located at the
center points of the edges of knock-out plate.
4. Discard knock-out plate.
8. Locate the two locking tabs on the top panel of the
air handler; shown as "Left" and "Center" in the
drawing.
9. Slide the breaker plate assembly into the
appropriate tab. Rotate the breaker assembly into
place as shown in image 4.
IMPORTANT: The left side breaker mount
location must be used for TEM8A0B24/30
air handlers, 25 kW heaters, and Single
Power Entry Kits.
The center breaker mount location should be
used for all other 4-20 kW heater installations.
Left Center
