Trane CAUJ-C20 - Page 16

16
CAUJ-SVX01E-EN

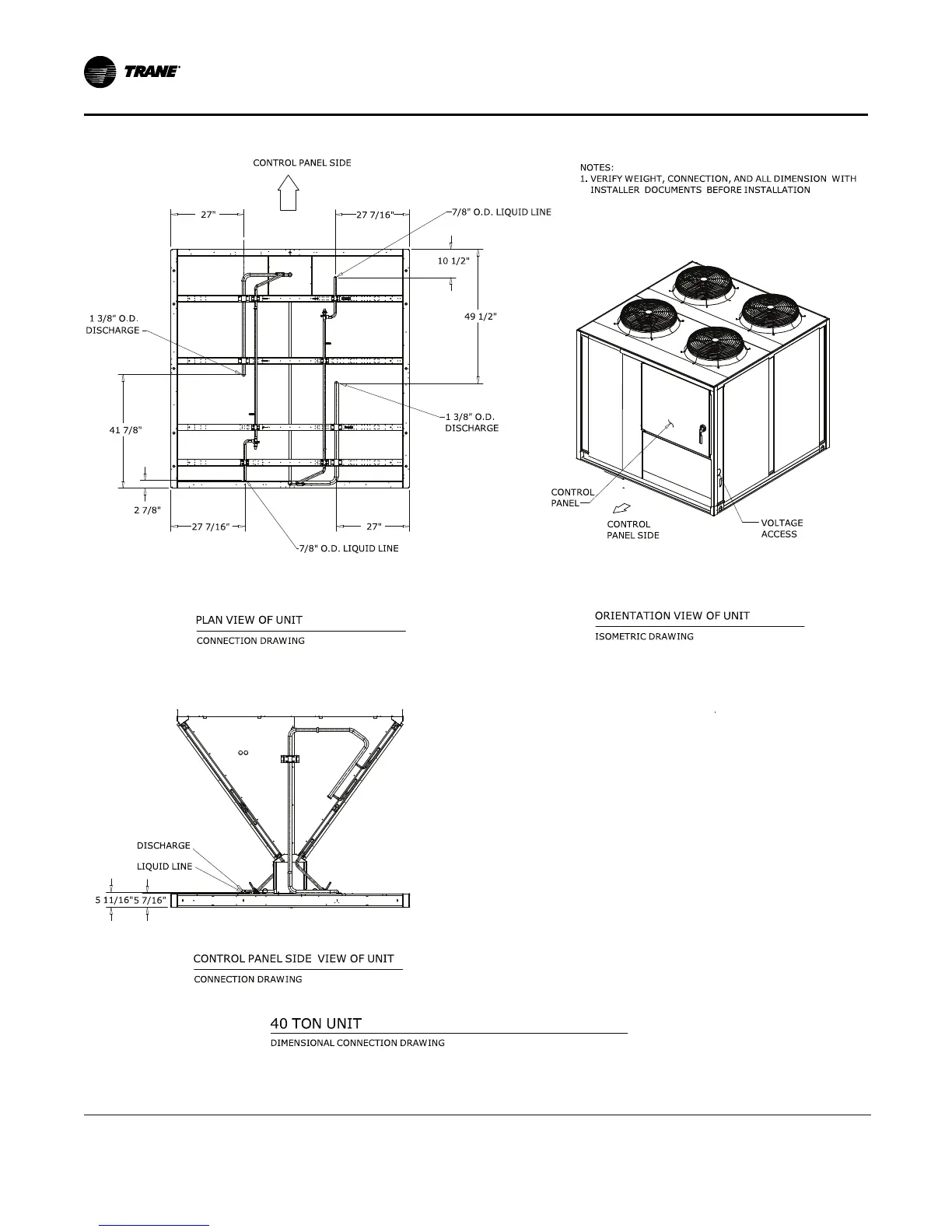

Figure 9. Air-cooled condenser connections — 40 ton
VOLTAGE
ACCESS
1 3/ 8" O.D.
DISCHARGE
LIQUID LINE
SCALE1, 00 0
5 11 / 1 6"
5 7/ 16 "
27 7/ 16"
2 7/ 8"
41 7/ 8"
27"
10 1/ 2"
27 7/ 1 6"
49 1/ 2"
27"
1 3/ 8" O.D.
DISCHARGE
7/ 8" O.D. LIQUID LINE
DISCHARGE
7/ 8" O.D. LIQUID LINE
CONTROL
PANEL
40 TON UNIT
DIMENSIONAL CONNECTION DRAWING
ORIENTATION VIEW OF UNIT
ISOMETRIC DRAWING
CONTROL PANEL SIDE VIEW OF UNIT
CONNECTION DRAWING
CONNECTION DRAWING
PLAN VIEW OF UNIT
CONTROL PANEL SIDE
CONTROL
PANEL SIDE
NOTES:
1. VERIFY WEIGHT, CONNECTION, AND ALL DIMENSION WITH
INSTALLER DOCUMENTS BEFORE INSTALLATION
DDiimmeennssiioonnss aanndd WWeeiigghhttss
