CAUJ-SVX01E-EN
9
Dimensions and Weights
Unit Clearances
The figure below illustrates the minimum operating
and service clearances for either a single, multiple, or
pit application. These clearances are the minimum
distances necessary to assure adequate serviceability,
cataloged unit capacity, and peak operating efficiency.
IImmppoorrttaanntt:: Providing less than the recommended
clearances could result in condenser coil
starvation or recirculation of hot condenser
air.
Locate the unit as close to the applicable system
support equipment as possible to minimize refrigerant
piping lengths.
Allow adequate clearance for water and refrigerant
piping connections, space to perform service
procedures, i.e. read gauges, thermometers, and
operate water system valves.

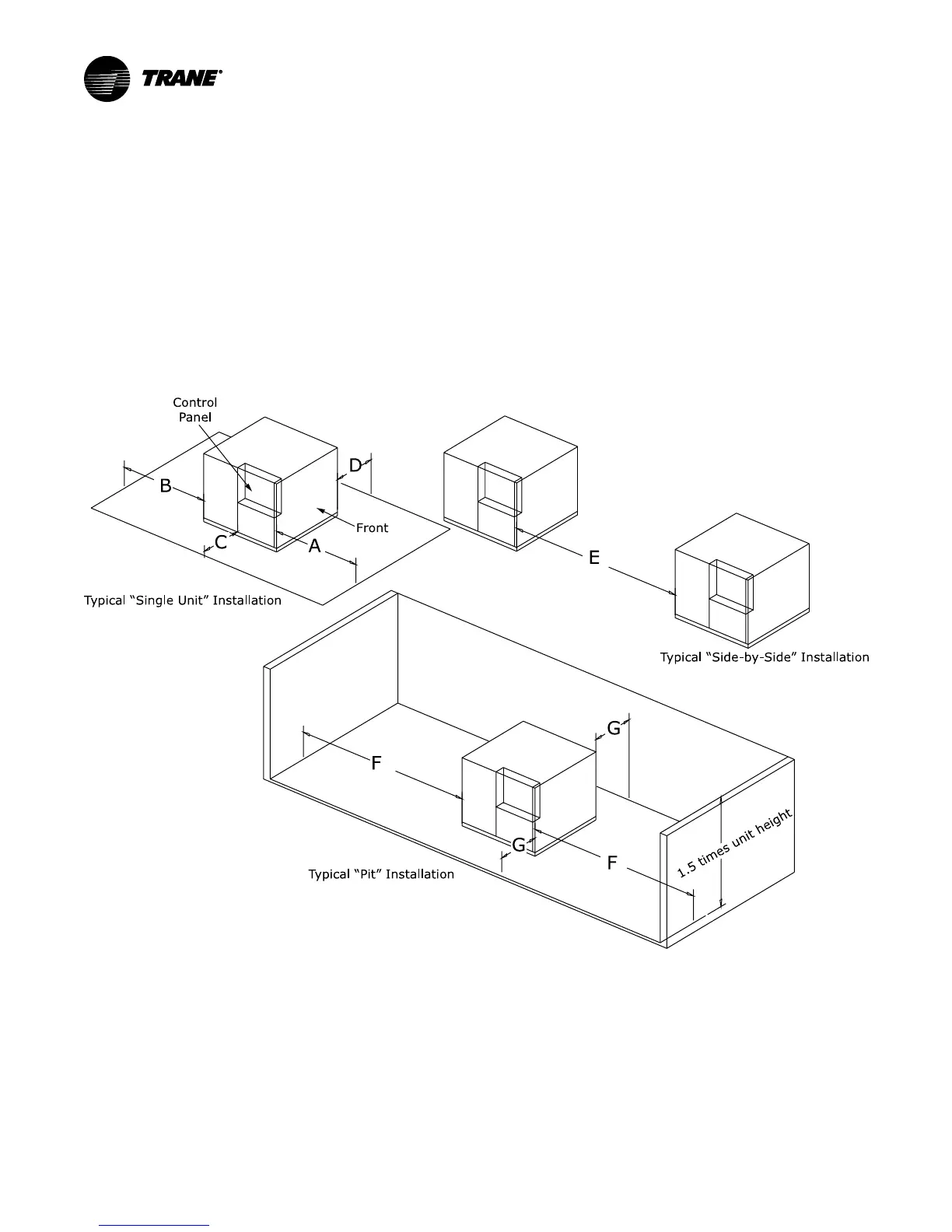

Figure 3. Unit clearances
Typica l “Single Unit” Installation
Typica l “Side -by-Side” Insta llation
Typica l “Pit” Insta lla tion
1
.
5
t
i
m
es
u
n
i
t
h
eig
h
t
E
B
C
A
D
E
F
F
G
G
Front
Control
Pa nel
