18
CAUJ-SVX01E-EN

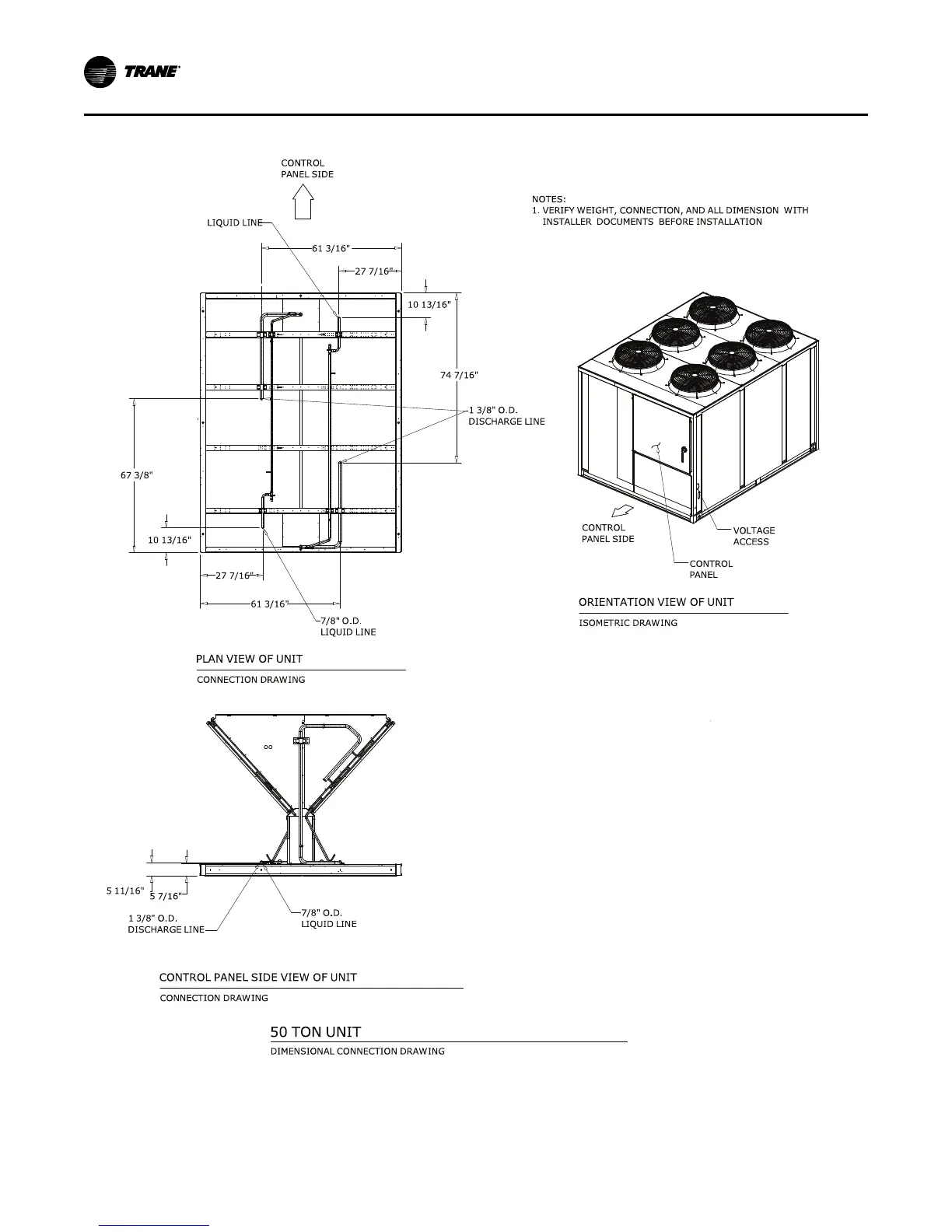

Figure 11. Air-cooled condenser connections — 50 ton
CONTROL
PANEL
VOLTAGE
ACCESS
SCALE1, 000
S
CALE
1,00
0
10 13/ 16 "
74 7/ 1 6"
10 13/ 16"
67 3/ 8"
27 7/ 16"
61 3/ 16"
27 7/ 1 6"
61 3/ 1 6"
5 7/ 16"
5 11/ 1 6"
LIQUID LINE
1 3/ 8" O.D.
DISCHARGE LINE
1 3/ 8" O.D.
DISCHARGE LINE
7/ 8" O.D.
LIQUID LINE
7/ 8 " O.D.
LIQUID LINE
DIMENSIONAL CONNECTION DRAWING
50 TON UNIT
ORIENTATION VIEW OF UNIT
ISOMETRIC DRAWING
CONTROL PANEL SIDE VIEW OF UNIT
CONNECTION DRAWING
CONNECTION DRAWING
PLAN VIEW OF UNIT
CONTROL
PANEL SIDE
CONTROL
PANEL SIDE
NOTES:
1. VERIFYWEIGHT, CONNECTION, AND ALL DIMENSION WITH
INSTALLER DOCUMENTS BEFORE INSTALLATION
DDiimmeennssiioonnss aanndd WWeeiigghhttss
