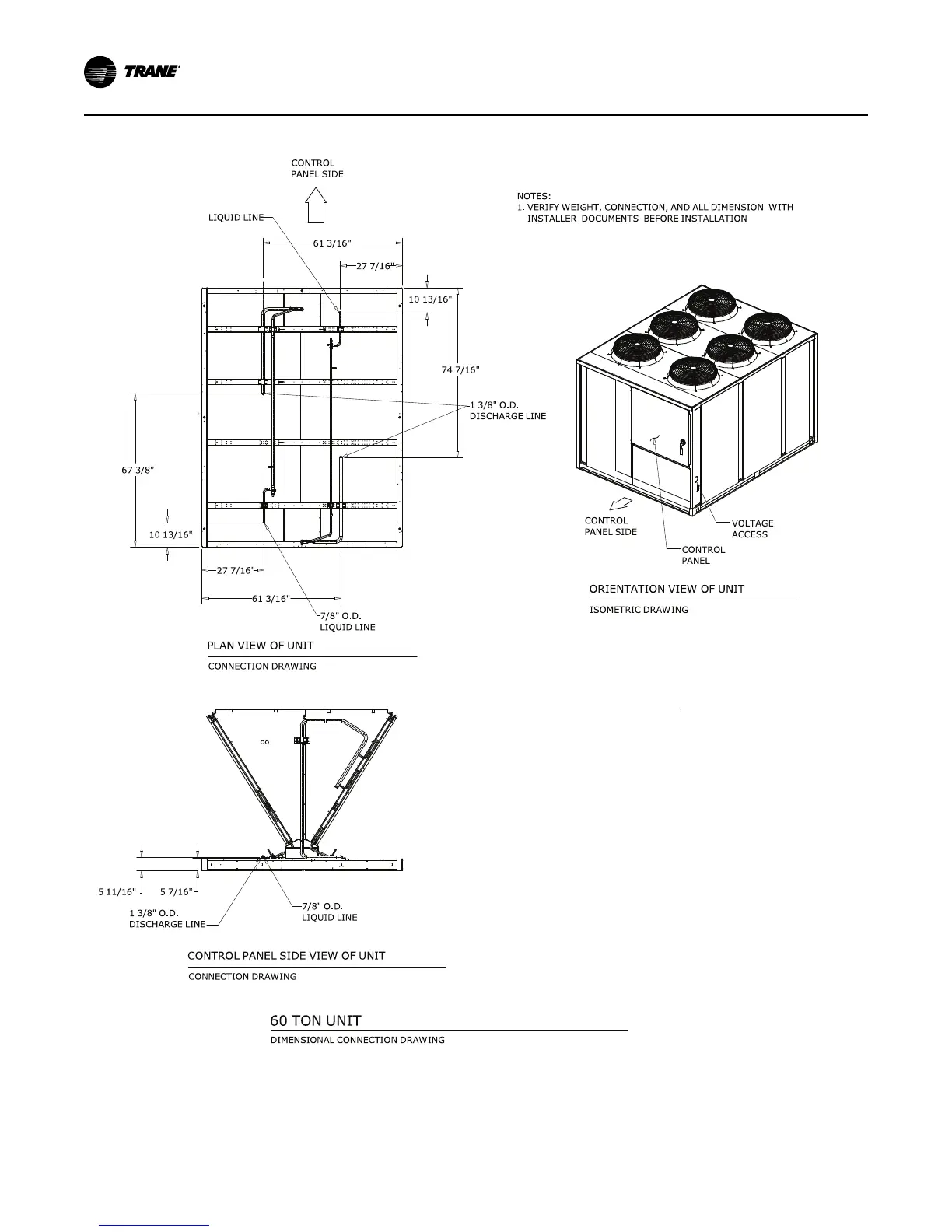

Figure 13. Air-cooled condenser connections — 60 ton
VOLTAGE
ACCES S
CONTROL
PANEL
SCA
L
E1,00 0
10 13/ 16"
74 7/ 16"
10 13/16"
67 3/ 8 "
27 7/ 16"
61 3/ 1 6"
27 7/ 16"
61 3/ 16"
LIQUID LINE
1 3/ 8" O.D.
DISCHARGE LINE
1 3/ 8" O.D.
DISCHARGE LINE
7/ 8" O.D.
LIQUID LINE
SCALE1,0 00
5 11/ 16" 5 7/ 16"
7/ 8" O.D.
LIQUID LINE
60 TON UNIT
DIMENSIONAL CONNECTION DRAWING
CONTROL PANEL SIDE VIEW OF UNIT
CONNECTION DRAWING
CONNECTION DRAWING
PLAN VIEW OF UNIT
ORIENTATION VIEW OF UNIT
ISOMETRIC DRAWING
CONTROL
PANEL SIDE
CONTROL
PANEL SIDE
NOTES:
1. VERIFY WEIGHT, CONNECTION, AND ALL DIMENSION WITH
INSTALLER DOCUMENTS BEFORE INSTALLATION
DDiimmeennssiioonnss aanndd WWeeiigghhttss
