CGWF-SVX01A-EN 19
Installation Mechanical

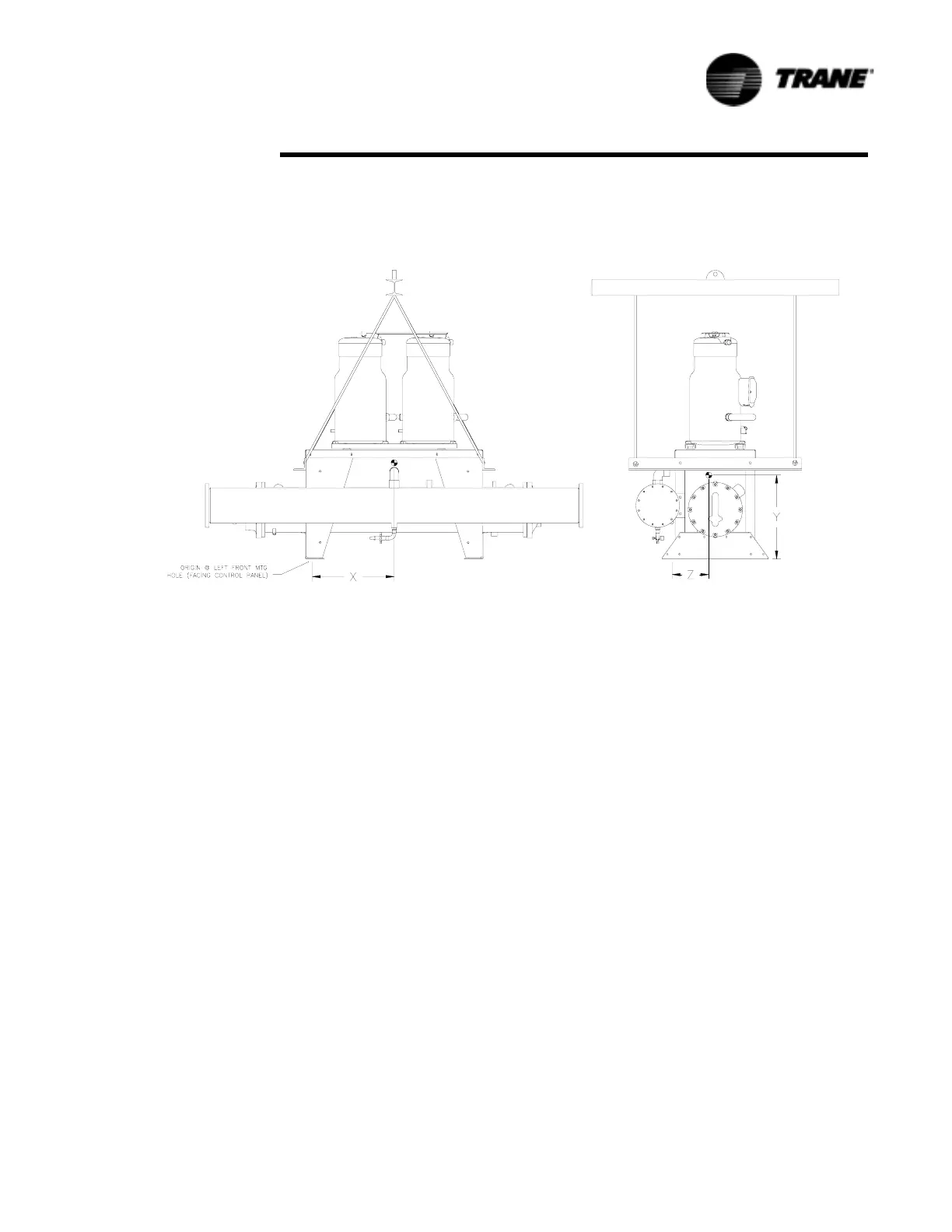

Figure 4 Typical Rigging Setup For CGWF 20-50 Ton and 20-60 Ton CCAF Units.
1. Remove lifting angles from the skid. Remove the
angle support bolts from the unit legs. Attach the lift-
ing angles as shown and torque the 12 mm bolts to 70
ft-lbs attaching the lifting angle.
2. Use clevis pins for attachment of chains to lifting
angles, lifting chains (cables) may be adjusted for
level lifting.
3. Do not Forklift Unit.
4. All units are heavier on the control panel side. Use
Table 5 to adjust rigging accordingly.
5. Minimum beam length 4 ft.
