36 CGWF-SVX01A-EN
Installation Mechanical
Locate the valve after the thermometer and before the shutoff valve (Figure 15). Run
the capillary tubing from the valve(s) to the discharge service valve(s).
CAUTION
Refrigerant Loss!
To prevent refrigerant loss, locate capillary tubing and secure it to avoid
damage due to friction or vibration.
Connect the capillary tubing to the access port on the discharge service valve(s).
Ensure that the valve is closed to the access port before removing flare cap.
CAUTION
High Pressure Refrigerant Gas!
Make sure the discharge valve access port is closed before removing
flare cap. Improper removal of flare cap may result in instantaneous
release of high pressure refrigerant causing the cap to become a
projectile and/or liquid refrigerant to contact the skin. Failure to close
discharge valve access port before removing flare cap may result in
minor or moderate injury.
Loosen the flare cap slowly to relieve residual pressure and connect the water
regulating valve capillary tubing.
Adjust the regulating valve for proper operation during unit start-up
.

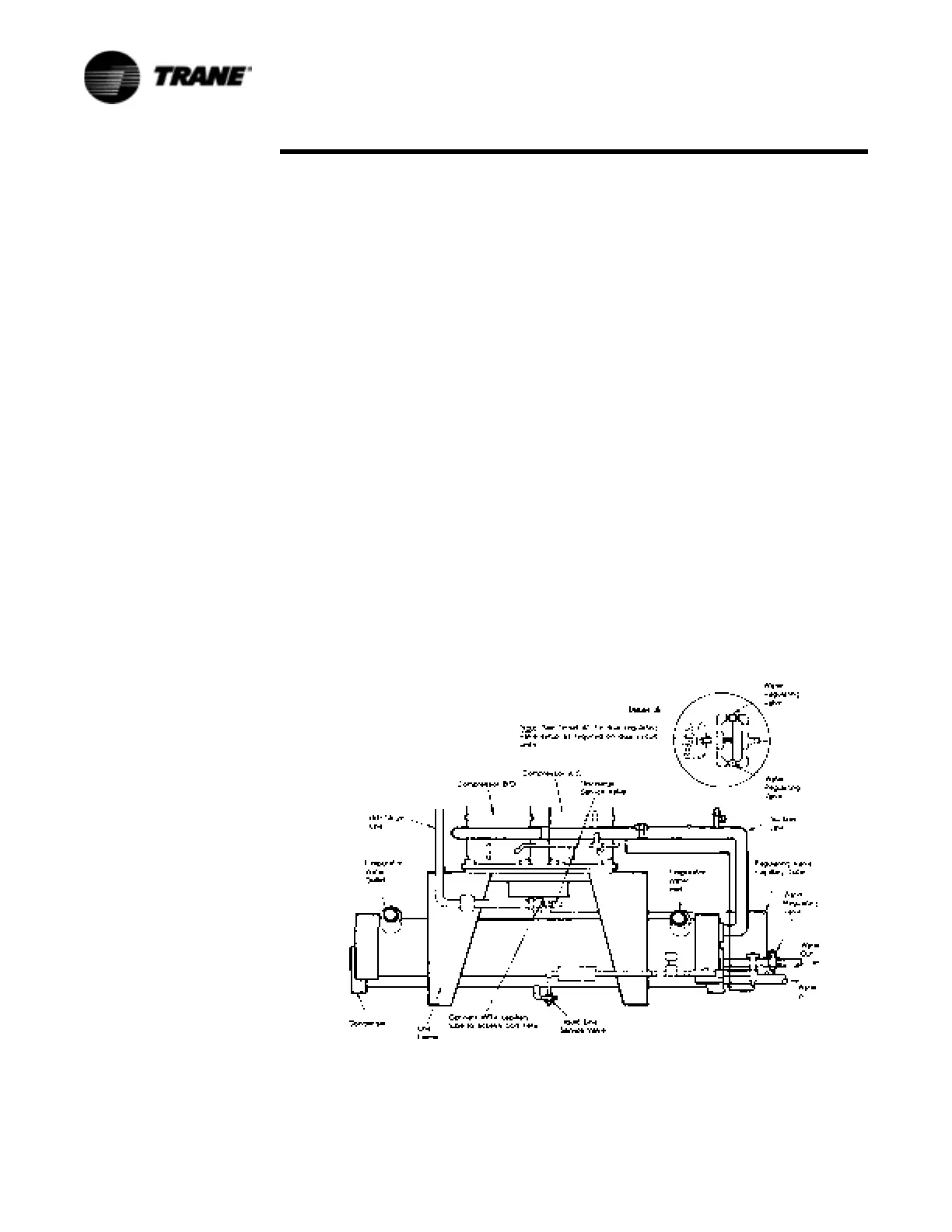

Figure 16 Typical Water Regulating Valve Installation
