Installation:
Mechanical

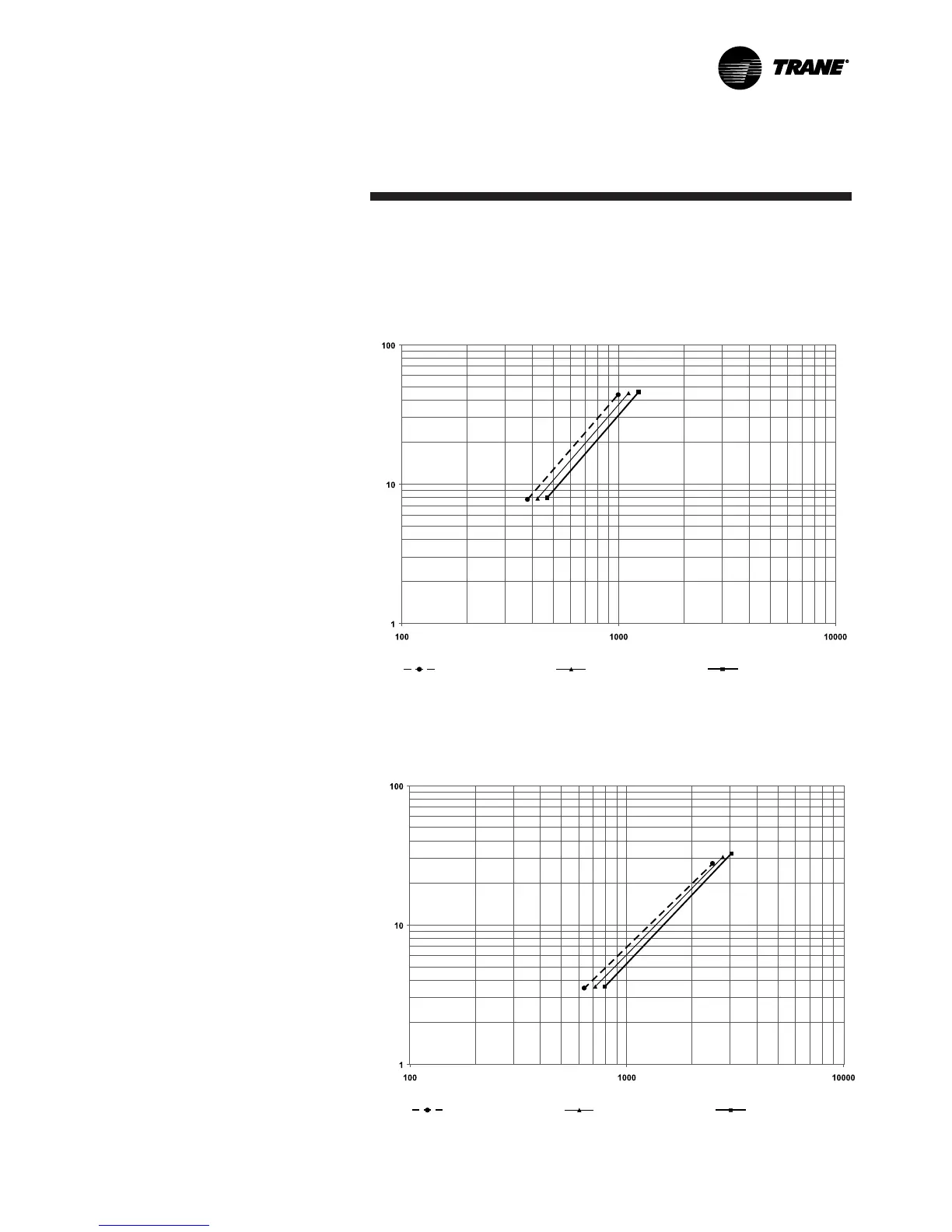

Water Pressure Drop Data
Pressure drop for CVGF 700 Evaporators with 3/4 inch OD
tubes and 3 pass waterboxes
Pressure drop (in feet of water)
Flow (in GPM)
Pressure drop for CVGF 700 Evaporators with 1.0 inch OD
tubes and 2 pass waterboxes
Pressure drop (in feet of water)
Flow (in GPM)
Graph 7.
Graph 8.
Bundle C
Bundle A
Bundle B
Bundle C
Bundle A
Bundle B
